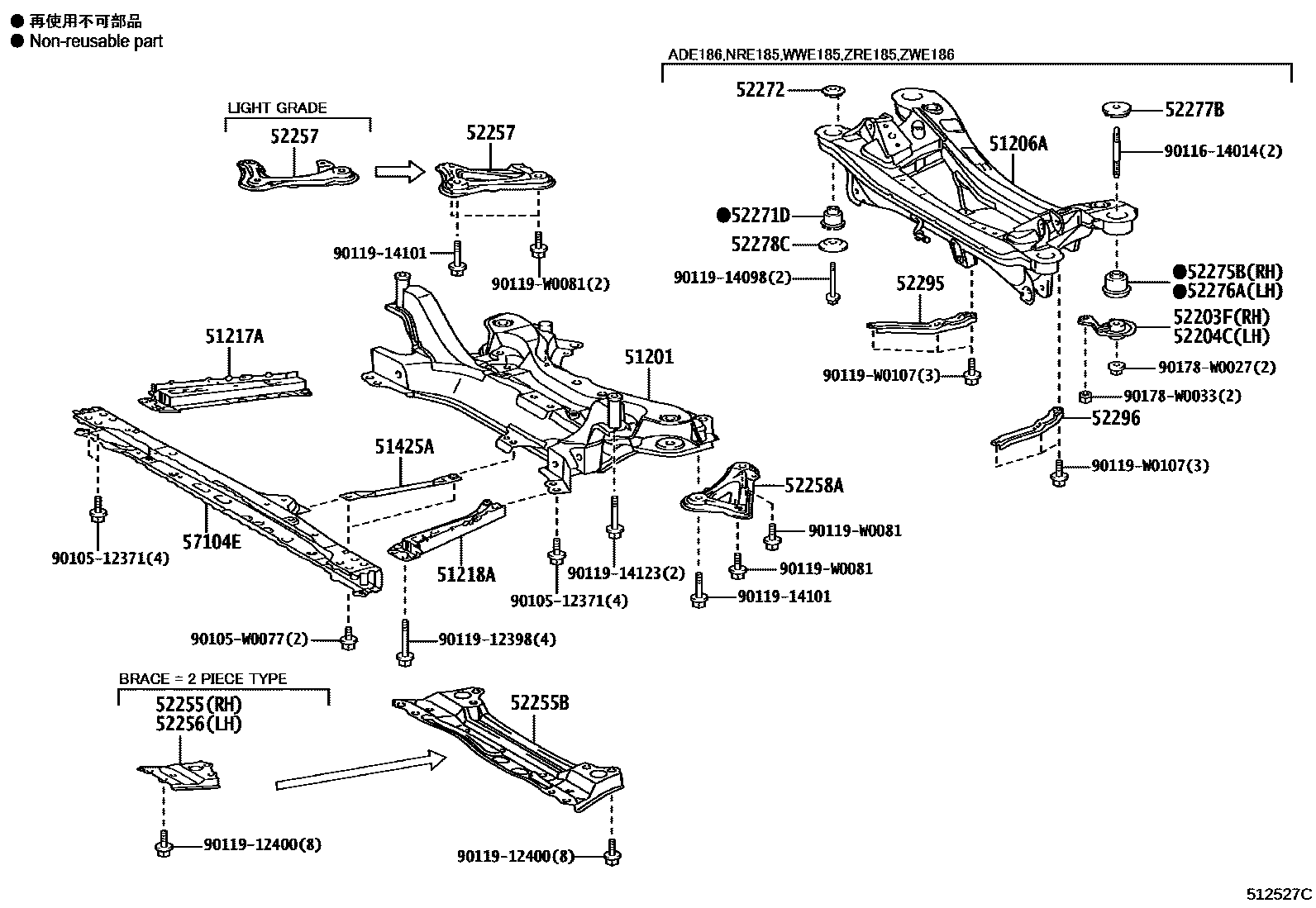

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1ENGINE UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-02101iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201307

sub51201-02102

main51201-02102iNDE180,NRE18#,ZRE185,ZWE186201308-201804

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-02050iADE186,ZRE185,ZWE186201210-201307

sub51206-02051

main51206-02051iWWE185201308-201804

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-02010iWWE185201210-201804

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-02010iNDE180,NRE18#,ZRE185,ZWE186201210-201804

51425AREINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER

main51425-02010iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

main51425-02050iWWE185201505-201804

52203FSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER RH

main52203-02010iADE186,ZRE185,ZWE186201210-201804

52204CSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER LH

main52203-02010iADE186,ZRE185,ZWE186201210-201804

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-02010iNDE180,NRE180201210-201505

52255BBRACE, FRONT SUSPENSION MEMBER

main52255-76010iADE186,ZRE185,ZWE186201210-201804

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-02010iNDE180,NRE180201210-201505

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-02060iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-02060iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-05020iADE186,ZRE185,ZWE186201210-201804

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-05030iADE186,ZRE185,ZWE186201210-201804

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-05030iADE186,ZRE185,ZWE186201210-201804

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-05030iADE186,ZRE185,ZWE186201210-201804

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-05030iADE186,ZRE185,ZWE186201210-201804

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-05010iADE186,ZRE185,ZWE186201210-201804

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-05030iADE186,ZRE185,ZWE186201210-201804

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-05030iADE186,ZRE185,ZWE186201210-201804

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-02230iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

sub57104-47020

9010512371

main90105-12371

90105W0077

main90105-W0077

9011614014

main90116-14014

9011912398

main90119-12398

9011912400

main90119-12400

9011914098

main90119-14098

9011914101

main90119-14101

9011914123

main90119-14123

90119W0081

main90119-W0081

90119W0107

main90119-W0107

90178W0027

main90178-W0027

90178W0033

main90178-W0033

33 parts on this diagram · 2 diagrams in section
