REAR SPRING & SHOCK ABSORBER

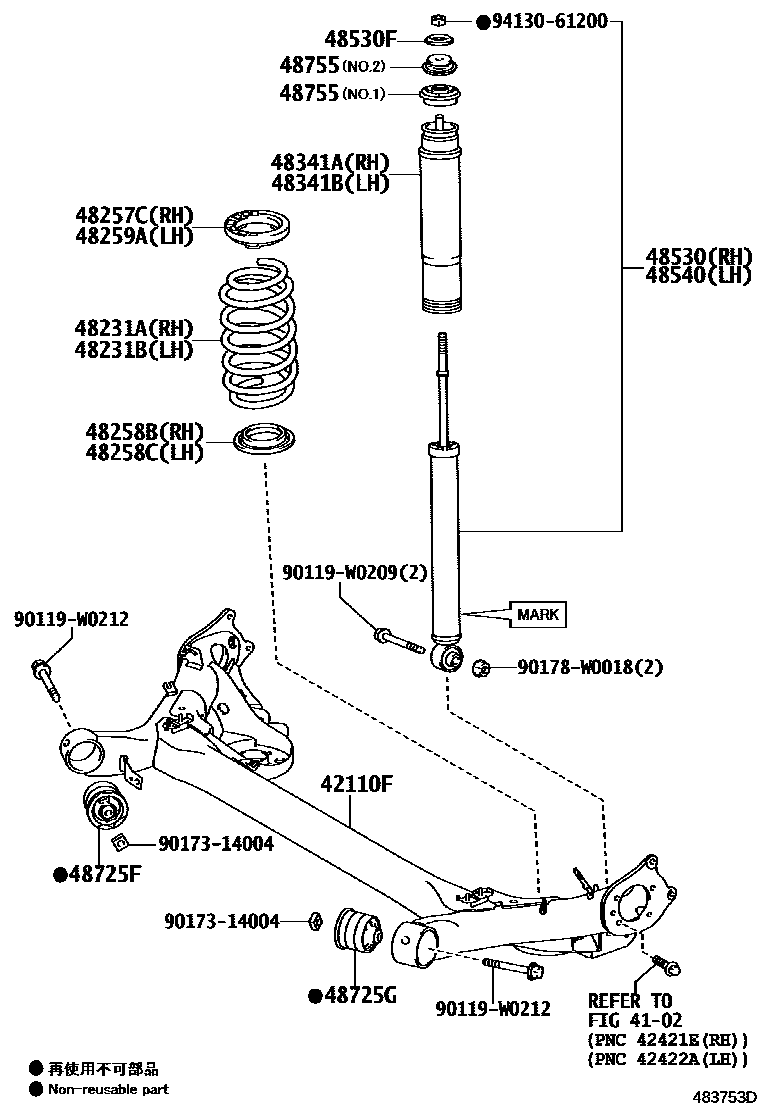

Parts diagram
4102
42110FBEAM ASSY, REAR AXLE
main42101-02260i201210-201505
48231ASPRING, COIL, REAR RH
main48231-02870i201505-201607
main48231-02871i201608
main48231-02B70i201210-201505
main48231-02B71i201607
main48231-02B80i201306-201505
main48231-02B81i201607-201804
main48231-02B90i201505-201606
main48231-02B91i201607-201804
main48231-02C00i201210-201505
main48231-02C01i201608
main48231-02C10i201505-201606
main48231-02C11i201607
main48231-02J00i201505-201607
main48231-02J01i201608
main48231-02J10i201306-201505
main48231-02J11i201608
main48231-02C20i201210-201505
ROUGH ROAD AREA SPEC
main48231-02C21i201607
ROUGH ROAD AREA SPEC
main48231-02C40i201210-201505
ROUGH ROAD AREA SPEC
main48231-02C41i201607-201804
ROUGH ROAD AREA SPEC
main48231-02C60i201505-201606
ROUGH ROAD AREA SPEC
main48231-02C61i201607
ROUGH ROAD AREA SPEC
48231BSPRING, COIL, REAR LH
main48231-02870i201505-201607
main48231-02871i201608
main48231-02B70i201505-201606
main48231-02B71i201607
main48231-02B80i201306-201505
main48231-02B81i201607-201804
main48231-02B90i201210-201505
main48231-02B91i201607-201804
main48231-02C00i201210-201505
main48231-02C01i201608
main48231-02C10i201505-201606
main48231-02C11i201607
main48231-02J00i201306-201505
main48231-02J01i201608
main48231-02J10i201505-201607
main48231-02J11i201608
main48231-02C20i201210-201505
ROUGH ROAD AREA SPEC
main48231-02C21i201607
ROUGH ROAD AREA SPEC
main48231-02C40i201210-201505
ROUGH ROAD AREA SPEC
main48231-02C41i201607-201804
ROUGH ROAD AREA SPEC
main48231-02C60i201210-201505
ROUGH ROAD AREA SPEC
main48231-02C61i201607
ROUGH ROAD AREA SPEC
48257CINSULATOR, REAR COIL SPRING, UPPER RH
main48257-0D010i201505-201804
48258BINSULATOR, REAR COIL SPRING, LOWER RH
main48258-05020i201505-201804
main48258-0D050i201210-201505
48258CINSULATOR, REAR COIL SPRING, LOWER LH
main48258-05020i201210-201505
main48258-0D050i201210-201505
48259AINSULATOR, REAR COIL SPRING, UPPER LH
main48257-0D010i201505
48341ABUMPER, REAR SPRING, NO.1 RH
main48341-02080i201210-201505
48341BBUMPER, REAR SPRING, NO.1 LH
main48341-02080i201210-201505
48530ABSORBER ASSY, SHOCK, REAR RH
main48530-09W10i201210-201411
MARK 48530-02A10
main48530-09W11i201411-201505
MARK 48530-02A11
main48530-09W20i201306-201411
MARK 48530-02A20
main48530-09W21i201411-201505
MARK 48530-02A21
main48530-09W30i201210-201411
MARK 48530-02A30
main48530-09W31i201411-201505
MARK 48530-02A31
main48530-09W40i201306-201411
MARK 48530-02A40
main48530-09W41i201411-201505
MARK 48530-02A41
main48530-09W50i201210-201411
MARK 48530-02A50
main48530-09W51i201411-201505
MARK 48530-02A51
main48530-09W60i201306-201411
MARK 48530-02A60
main48530-09W61i201411-201505
MARK 48530-02A61
main48530-8Z023i201505
MARK 48530-02E50
main48530-8Z024i201505
MARK 48530-02E60
main48530-8Z025i201505-201804
MARK 48530-02E70
main48530-8Z026i201505-201804
MARK 48530-02E80
main48530-8Z027i201505
MARK 48530-02E90
main48530-8Z028i201505
MARK 48530-02F00
main48530-09W70i201210-201411
MARK 48530-02A70,ROUGH ROAD AREA SPEC
main48530-09W71i201505
MARK 48530-02F50,ROUGH ROAD AREA SPEC
main48530-09W72i201411-201505
MARK 48530-02A71,ROUGH ROAD AREA SPEC
main48530-09W90i201210-201411
MARK 48530-02A90,ROUGH ROAD AREA SPEC
main48530-09W91i201411-201505
MARK 48530-02A91,ROUGH ROAD AREA SPEC
main48530-09X20i201210-201411
MARK 48530-02B10,ROUGH ROAD AREA SPEC
main48530-09X21i201411-201505
MARK 48530-02B11,ROUGH ROAD AREA SPEC
main48530-8Z030i201505-201804
MARK 48530-02F20,ROUGH ROAD AREA SPEC
main48530-8Z031i201505
MARK 48530-02F30,ROUGH ROAD AREA SPEC
48530FRETAINER, SHOCK ABSORBER CUSHION(FOR REAR)
main90948-02159×2i201210-201505
48540ABSORBER ASSY, SHOCK, REAR LH
main48530-09W10i201210-201411
MARK 48530-02A10
main48530-09W11i201411-201505
MARK 48530-02A11
main48530-09W20i201306-201411
MARK 48530-02A20
main48530-09W21i201411-201505
MARK 48530-02A21
main48530-09W30i201210-201411
MARK 48530-02A30
main48530-09W31i201411-201505
MARK 48530-02A31
main48530-09W40i201306-201411
MARK 48530-02A40
main48530-09W41i201411-201505
MARK 48530-02A41
main48530-09W50i201210-201411
MARK 48530-02A50
main48530-09W51i201411-201505
MARK 48530-02A51
main48530-09W60i201306-201411
MARK 48530-02A60
main48530-09W61i201411-201505
MARK 48530-02A61
main48530-8Z023i201505
MARK 48530-02E50
main48530-8Z024i201505
MARK 48530-02E60
main48530-8Z025i201505-201804
MARK 48530-02E70
main48530-8Z026i201505-201804
MARK 48530-02E80
main48530-8Z027i201505
MARK 48530-02E90
main48530-8Z028i201505
MARK 48530-02F00
main48530-09W70i201210-201411
MARK 48530-02A70,ROUGH ROAD AREA SPEC
main48530-09W71i201505
MARK 48530-02F50,ROUGH ROAD AREA SPEC
main48530-09W72i201411-201505
MARK 48530-02A71,ROUGH ROAD AREA SPEC
main48530-09W90i201210-201411
MARK 48530-02A90,ROUGH ROAD AREA SPEC
main48530-09W91i201411-201505
MARK 48530-02A91,ROUGH ROAD AREA SPEC
main48530-09X20i201210-201411
MARK 48530-02B10,ROUGH ROAD AREA SPEC
main48530-09X21i201411-201505
MARK 48530-02B11,ROUGH ROAD AREA SPEC
main48530-8Z030i201505-201804
MARK 48530-02F20,ROUGH ROAD AREA SPEC
main48530-8Z031i201505
MARK 48530-02F30,ROUGH ROAD AREA SPEC
48725FBUSH, REAR AXLE CARRIER, RH
main48725-02200i201210-201505
48725GBUSH, REAR AXLE CARRIER, LH
main48725-02200i201210-201505
48755SUPPORT, REAR SUSPENSION
main48755-02080×2i201505
NO.1
main48755-02090×2i201505-201804
NO.2
90119W0209
main90119-W0209
90119W0212
main90119-W0212
9017314004
main90173-14004
90178W0018
main90178-W0018
9413061200
main94130-61200

21 parts on this diagram · 2 diagrams in section
