FRONT SPRING & SHOCK ABSORBER

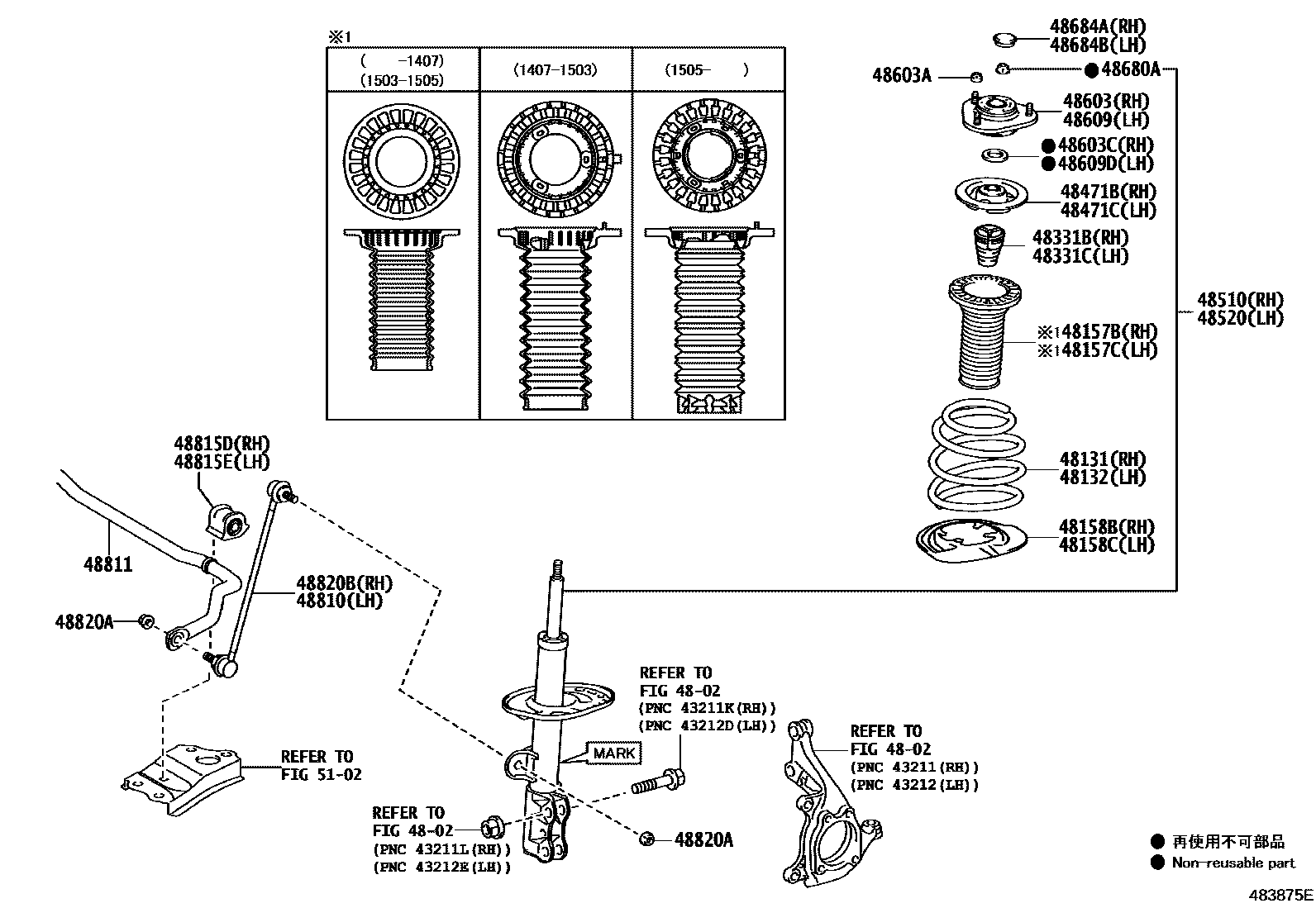

Parts diagram
4802
48131SPRING, FRONT COIL, RH
main48131-02L20i201503-201505
sub48131-02V50
main48131-02L21i201407-201503
sub48131-02L22
main48131-02L30i201210-201505
sub48131-02V70
main48131-02L50i201210-201505
main48131-02L60i201210-201505
main48131-02L90i201505-201612
main48131-02L91i201701
main48131-02M40i201505-201612
main48131-02M41i201701
main48131-02N80i201306-201505
sub48131-02V60
main48131-02T20i201503-201505
main48131-02T21i201407-201503
main48131-02U00i201505-201612
main48131-02U01i201701
main48131-02U10i201505-201612
main48131-02U11i201701-201804
main48131-02U60i201505-201612
main48131-02U61i201701
main48131-02V10i201505-201612
main48131-02V11i201701
main48131-02M00i201210-201505
ROUGH ROAD AREA SPEC
sub48131-02V90
main48131-02M20i201210-201505
ROUGH ROAD AREA SPEC
main48131-02M30i201210-201505
ROUGH ROAD AREA SPEC
main48131-02U20i201505-201612
ROUGH ROAD AREA SPEC
main48131-02U21i201701
ROUGH ROAD AREA SPEC
main48131-02U30i201505-201612
ROUGH ROAD AREA SPEC
main48131-02U31i201701
ROUGH ROAD AREA SPEC
main48131-02U40i201505-201612
ROUGH ROAD AREA SPEC
main48131-02U41i201701-201804
ROUGH ROAD AREA SPEC
48132SPRING, FRONT COIL, LH
main48131-02L20i201503-201505
sub48131-02V50
main48131-02L21i201407-201503
sub48131-02L22
main48131-02L30i201210-201505
sub48131-02V70
main48131-02L50i201210-201505
main48131-02L60i201210-201505
main48131-02L90i201505-201612
main48131-02L91i201701
main48131-02M40i201505-201612
main48131-02M41i201701
main48131-02N80i201306-201505
sub48131-02V60
main48131-02T20i201306-201406
main48131-02T21i201407-201503
main48131-02U00i201505-201612
main48131-02U01i201701
main48131-02U10i201505-201612
main48131-02U11i201701-201804
main48131-02U60i201505-201612
main48131-02U61i201701
main48131-02V10i201505-201612
main48131-02V11i201701
main48131-02M00i201210-201505
ROUGH ROAD AREA SPEC
sub48131-02V90
main48131-02M20i201210-201505
ROUGH ROAD AREA SPEC
main48131-02M30i201210-201505
ROUGH ROAD AREA SPEC
main48131-02U20i201505-201612
ROUGH ROAD AREA SPEC
main48131-02U21i201701
ROUGH ROAD AREA SPEC
main48131-02U30i201505-201612
ROUGH ROAD AREA SPEC
main48131-02U31i201701
ROUGH ROAD AREA SPEC
main48131-02U40i201505-201612
ROUGH ROAD AREA SPEC
main48131-02U41i201701
ROUGH ROAD AREA SPEC
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
main48157-02100i201503-201505
main48157-02170i201407-201503
main48157-02230i201505-201606
main48157-02231i201607-201804
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
main48157-02100i201210-201305
main48157-02170i201407-201503
main48157-02230i201505-201606
main48157-02231i201607-201804
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
main48158-02090i201210-201305
main48158-02190i201306-201505
main48158-02230i201505-201804
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
main48158-02090i201210-201305
main48158-02190i201306-201505
main48158-02230i201505-201804
48331BBUMPER, FRONT SPRING, RH
main48331-02100i201210-201505
48331CBUMPER, FRONT SPRING, LH
main48331-02100i201210-201505
48471BSEAT, FRONT COIL SPRING, UPPER RH
main48044-02090i201210-201505
48471CSEAT, FRONT COIL SPRING, UPPER LH
main48044-02090i201210-201505
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-8Z061i201210-201505
MARK 48510-02870
main48510-8Z062i201210-201505
MARK 48510-02880
main48510-8Z063i201210-201505
MARK 48510-02A00
main48510-8Z064i201210-201505
MARK 48510-02A10
main48510-8Z239i201505-201805
MARK 48510-02D80
main48510-8Z240i201505-201804
MARK 48510-02D90
main48510-8Z241i201505-201805
MARK 48510-02E00
main48510-8Z242i201505-201805
MARK 48510-02E10
main48510-8Z396i201805
MARK 48510-02D81
main48510-8Z397i201805
MARK 48510-02E11
main48510-8Z398i201805
MARK 48510-02E01
main48510-8Z065i201210-201505
MARK 48510-02A30,ROUGH ROAD AREA SPEC
main48510-8Z066i201210-201505
MARK 48510-02A40,ROUGH ROAD AREA SPEC
main48510-8Z238i201505
MARK 48510-02E20,ROUGH ROAD AREA SPEC
main48510-8Z243i201505-201804
MARK 48510-02E30,ROUGH ROAD AREA SPEC
48520ABSORBER ASSY, SHOCK, FRONT LH
main48520-09X70i201210-201505
MARK 48520-02870
main48520-09X80i201210-201505
MARK 48520-02880
main48520-09X90i201210-201505
MARK 48520-02A00
main48520-09Y10i201210-201505
MARK 48520-02A10
main48520-8Z104i201505-201805
MARK 48520-02D80
main48520-8Z105i201505-201804
MARK 48520-02D90
main48520-8Z106i201505-201805
MARK 48520-02E00
main48520-8Z107i201505-201805
MARK 48520-02E10
main48520-8Z250i201805
MARK 48520-02D81
main48520-8Z251i201805
MARK 48520-02E01
main48520-8Z252i201805
MARK 48520-02E11
main48520-09Y20i201210-201505
MARK 48520-02A30,ROUGH ROAD AREA SPEC
main48520-09Y30i201210-201505
MARK 48520-02A40,ROUGH ROAD AREA SPEC
main48520-8Z103i201505
MARK 48520-02E20,ROUGH ROAD AREA SPEC
main48520-8Z108i201505-201804
MARK 48520-02E30,ROUGH ROAD AREA SPEC
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
main48609-02240i201210-201505
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
main90178-10030×6i201210-201505
48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)
main90303-22002i201210-201505
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
main48609-02240i201210-201505
48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)
main90303-22002i201210-201505
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
main90177-14005×2i201210-201505
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
main48684-05020i201210-201505
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
main48684-05020i201210-201505
48810LINK ASSY, FRONT STABILIZER, LH
main48820-02070i201210-201505
48811BAR, STABILIZER, FRONT
main48811-02300i201210-201505
48815DBUSH, FRONT STABILIZER BAR, RH
main48815-02150i201210-201505
main48815-05160i201505-201804
48815EBUSH, FRONT STABILIZER BAR, LH
main48815-02140i201210-201505
main48815-05170i201505-201804
48820ANUT(FOR FRONT STABILIZER LINK)
main90178-W0051×4i201210-201505
48820BLINK ASSY, FRONT STABILIZER, RH
main48820-02070i201210-201505
5102

28 parts on this diagram · 1 diagram in section
