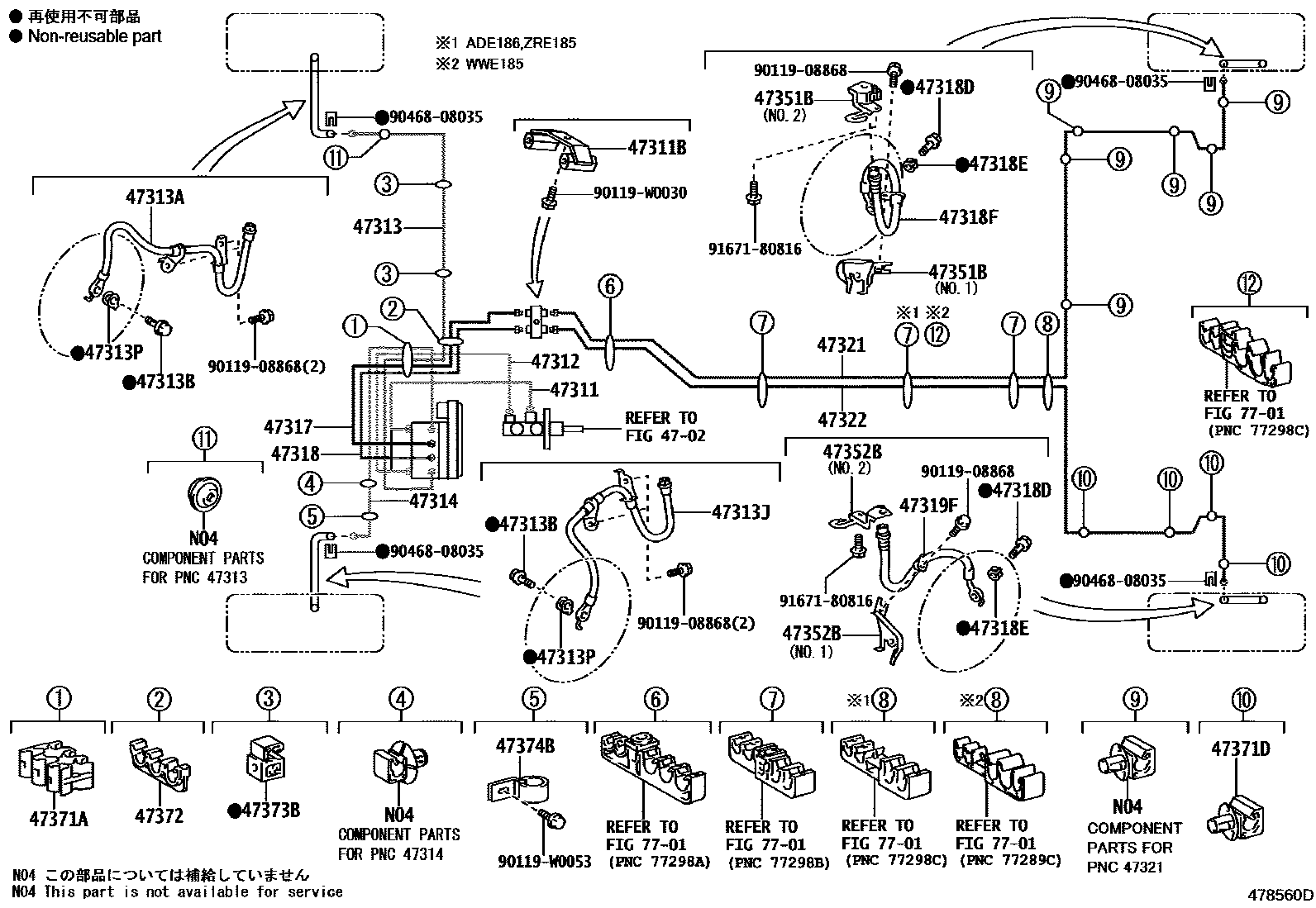

BRAKE TUBE & CLAMP
4702
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
47318TUBE, FRONT BRAKE, NO.8
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47351BBRACKET, FLEXIBLE HOSE, NO.1
NO.1
NO.2
47352BBRACKET, FLEXIBLE HOSE, NO.2
NO.1
NO.2
47371ACLAMP, BRAKE TUBE, NO.1
47371DCLAMP, BRAKE TUBE, NO.8
47372CLAMP, BRAKE TUBE, NO.2
47373BCLAMP, BRAKE TUBE, NO.3
NO.2
NO.1
47374BCLAMP, BRAKE TUBE, NO.4
7701
9011908868
main90119-08868
90119W0030
main90119-W0030
90119W0053
main90119-W0053
9046808035
main90468-08035
9167180816
main91671-80816
31 parts on this diagram · 14 diagrams in section
