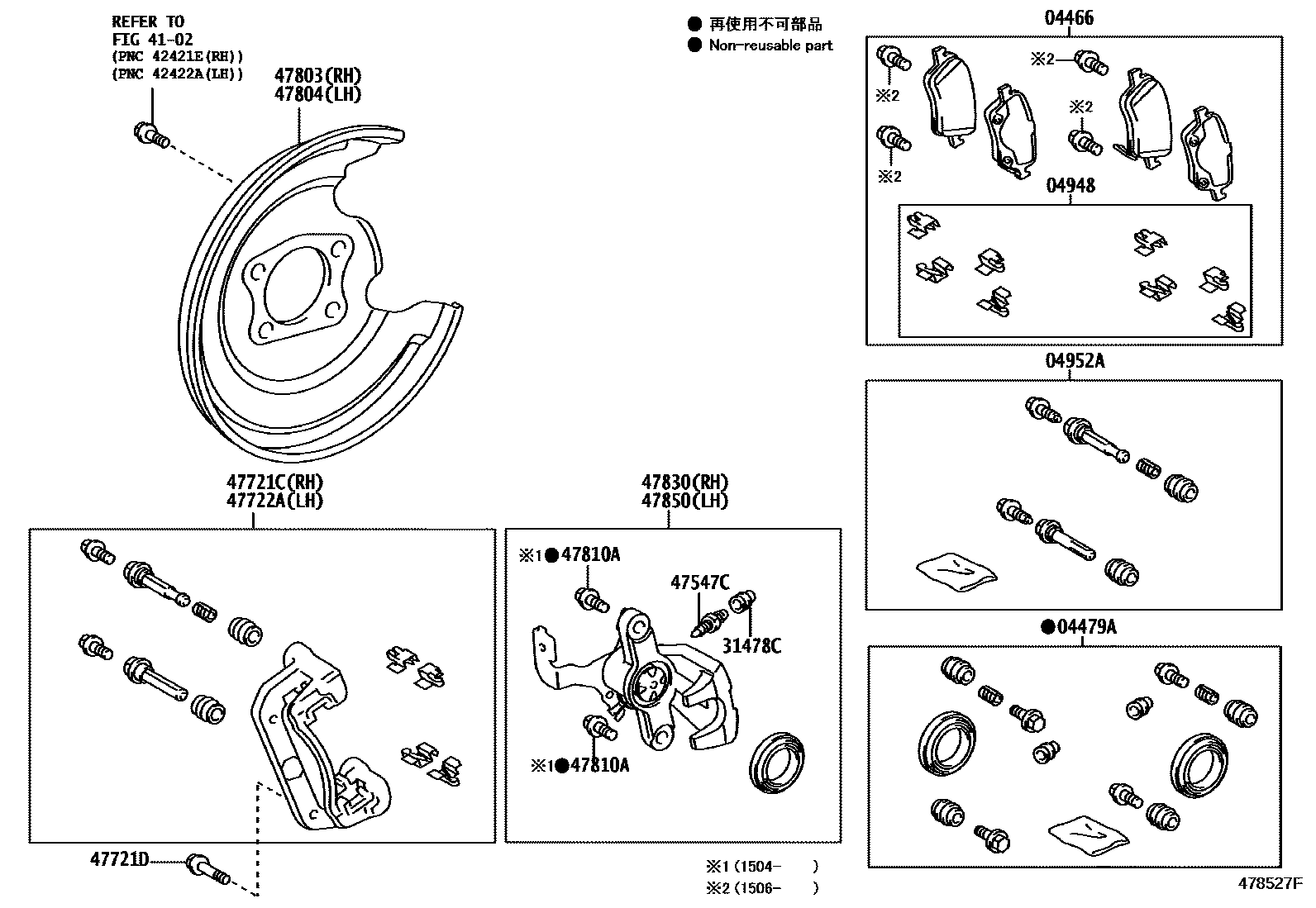

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-02181iNDE180,NRE180¥6,700201210-201309

MARK GALFER G3409

main04466-02280iADE186,ZRE185,ZWE186201210-201309

MARK GALFER G3409

sub04466-02290

main04466-02290iADE186,NDE180,NRE180,ZRE185,ZWE186201310-201506

MARK GALFER G3409

sub04466-02291

main04466-02291iNDE180,NRE18#,WWE185,ZRE185,ZWE186201506-201702

MARK GALFER G3409

sub04466-02292¥7,100

main04466-02292iWWE185¥7,100201702-201804

MARK GALFER G3409

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02310iADE186,NDE180,NRE180,ZRE185,ZWE186¥1,800201210-201804

04948FITTING KIT, DISC BRAKE, REAR

main04948-02120iADE186,ZRE185,ZWE186201210-201309

main04948-02130iADE186,NDE180,NRE180,ZRE185,ZWE186¥1,390201310-201804

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04952-02220iWWE185¥2,240201210-201804

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main90069-39001iADE186,NDE180,NRE180,ZRE185,ZWE186¥170201210-201804

4102

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main90069-39000iADE186,NDE180,NRE180,ZRE185,ZWE186¥310201210-201804

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-09020iNDE180,NRE180¥5,800201210-201504

main47821-09080iADE186,ZRE185,ZWE186201210-201505

main47821-09081iNDE180,NRE180201504-201603

main47821-09082iWWE185201603-201804

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-10404iADE186,ZRE185,ZWE186¥100201210-201505

*10-1.25PX24-21.5

main90105-10576iNDE180,NRE180¥100201210-201505

*10-1.25PX19-15.25

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-09020iNDE180,NRE180¥5,800201210-201504

main47822-09080iADE186,ZRE185,ZWE186201210-201505

main47822-09081iNDE180,NRE180201504-201603

main47822-09082iWWE185201603-201804

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-02120iNDE180,NRE180201210-201505

main47881-02140iADE186,ZRE185,ZWE186201210-201505

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47882-02120iNDE180,NRE180201210-201505

main47882-02140iADE186,ZRE185,ZWE186201210-201505

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main47715-05060iWWE185¥750201504-201804

sub47715-28060¥620

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-02100iNDE180,NRE180201210-201504

main47830-02101iNDE180,NRE180¥34,600201504-201505

main47830-02260iADE186,ZRE185,ZWE186201210-201504

sub47830-02261

main47830-02261iADE186,ZRE185,ZWE186201504-201804

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-02100iNDE180,NRE180201210-201504

sub47850-02101¥34,600

main47850-02101iNDE180,NRE180¥34,600201504-201505

main47850-02280iADE186,ZRE185,ZWE186201210-201504

sub47850-02281

main47850-02281iADE186,ZRE185,ZWE186201504-201804

15 parts on this diagram · 2 diagrams in section
