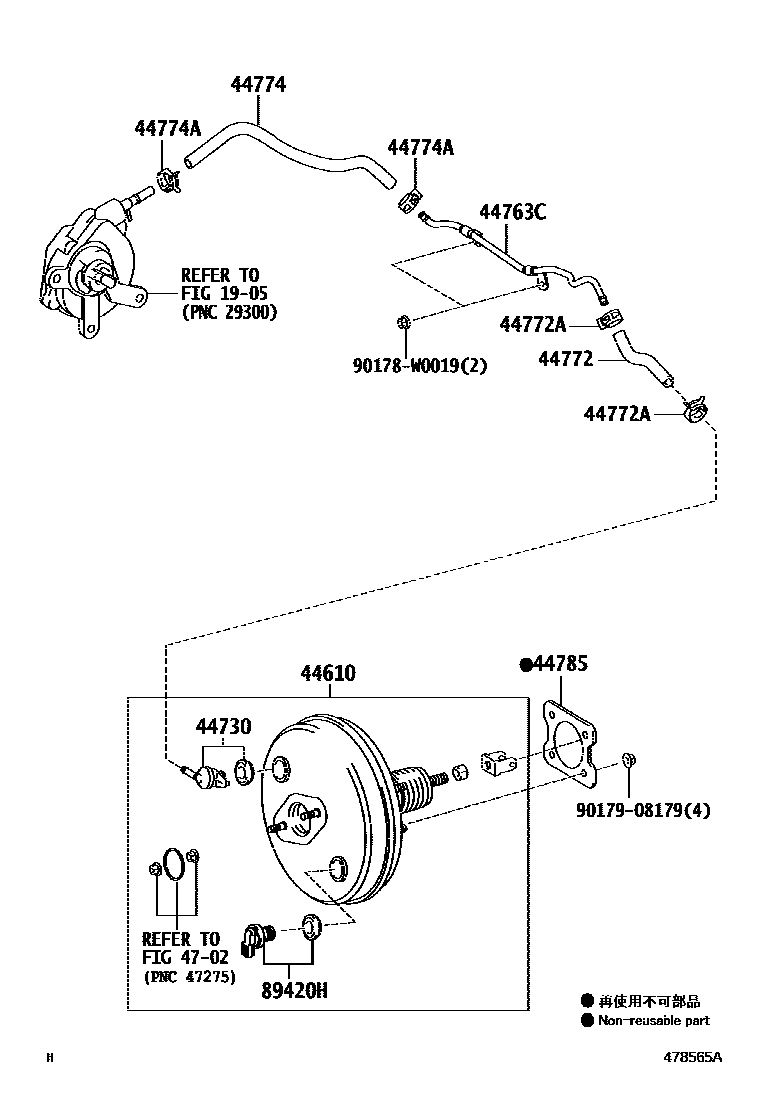

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

1905

44610BOOSTER ASSY, BRAKE

main44610-09A30iNDE180,NRE180,ZRE185..LHD201210-201505

main44610-09A60iADE186201210-201505

main44610-09A70iZRE185..RHD;NDE180..RHD..6FS201210-201505

sub44610-09D50

main44610-09A80iNDE180,NRE180..RHD..6F201210-201405

main44610-09D10iNRE185..LHD..6F;NDE180,ZRE185..LHD201505

main44610-09D20iNDE180,NRE185..LHD..6F201505

START & STOP SYSTEM PACKAGE

main44610-09D20iWWE185..LHD201505-201804

main44610-09D40iNRE180..LHD201505

main44610-09D50iNDE180,NRE18#,ZRE185..RHD..6F201505

main44610-09D60iNRE185..RHD..CVT201505

START & STOP SYSTEM PACKAGE

main44610-09D60iWWE185..RHD201505-201804

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-09020iADE186,NDE180,NRE180,ZRE185¥1,430201210-201804

44763CTUBE, HOSE TO HOSE, NO.2

main44763-12400iNDE180,NRE180,ZRE185..LHD201210-201505

main44763-12440iZRE185..RHD¥1,200201210-201505

main44763-12450iNDE180..RHD201210-201505

main44763-12550iNRE185..LHD201505

main44763-12560iNRE185..RHD¥1,460201505

main44763-64030iWWE185201505-201804

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-02340iZRE185..LHD201712

main44772-02350iZRE185..RHD201712

main44772-02360iNRE180..LHD201712

main44772-12580iZRE185..LHD201210-201711

main44772-12620iNDE180,ZRE185..RHD¥850201210-201711

main44772-12710iNRE180..LHD201210-201711

sub44772-02360

main44772-12760iNDE180,NRE185..RHD201505

main44772-64010iWWE185..LHD201505-201804

main44772-64020iWWE185..RHD201505-201804

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90466-W0008iZRE185;NRE180..LHD¥120201210-201505

main90467-16014iNDE180..LHD..HB¥230201210-201804

main96133-41500iNDE180..LHD¥140201210-201301

44774HOSE, UNION TO CONNECTOR TUBE

main44771-64010iWWE185..LHD201505-201804

main44774-02410iZRE185..LHD201712

main44774-02430iZRE185..RHD201712

main44774-02440iNRE180..LHD201712

main44774-12530iZRE185..LHD201210-201711

sub44774-02410

main44774-12560iZRE185..RHD¥1,130201210-201711

main44774-12740iNRE180..LHD201210-201711

sub44774-02440

main44774-12751iNDE180..LHD201210-201505

main44774-12770iNDE180..RHD201210-201505

main44774-12810iADE186201210-201505

main44774-12830iNRE185..LHD¥1,130201505-201803

main44774-12850iNRE185..RHD¥1,210201505-201803

main44774-12A00iNRE185..LHD201803

main44774-12A10iNRE185..RHD¥1,480201803

main44774-64060iWWE185..RHD201505-201804

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90466-W0008iZRE185;NRE180..LHD¥120201210-201505

main90467-16014iNDE180..LHD¥230201301-201804

main96133-41500iNDE180..RHD¥140201210-201505

44785GASKET, BRAKE BOOSTER

main44785-05020iADE186,NDE180,NRE180,ZRE185¥640201210-201804

4702

89420HSENSOR ASSY, VACUUM

main89421-09010iNDE180,NRE180..RHD..6F201210-201804

main89421-09010iADE186201210-201505

START & STOP SYSTEM PACKAGE

90178W0019

main90178-W0019¥110

9017908179

main90179-08179¥200

13 parts on this diagram · 11 diagrams in section
