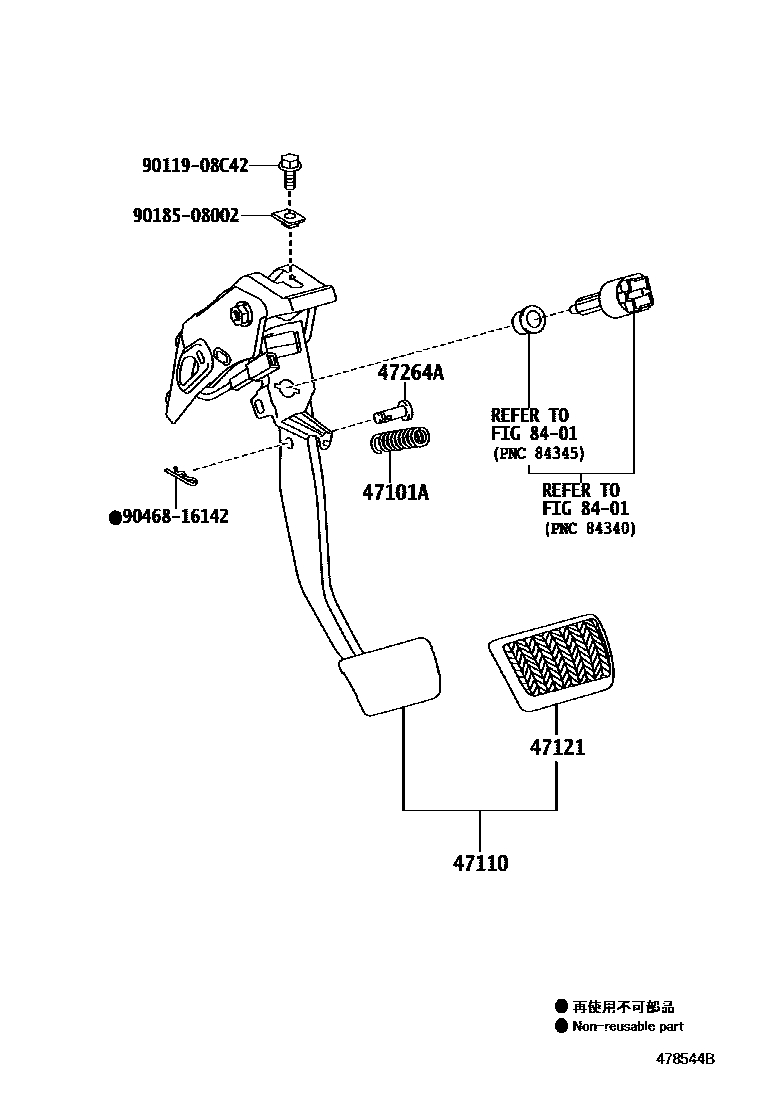

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1 0004 1 0005 1

47101PEDAL SUB-ASSY, BRAKE

main47101-02450iNDE180,NRE180,ZRE185..LHD..6F201210-201804

main47101-02460iNDE180..LHD..6FS;ZRE185..LHD..CVT201210-201505

main47101-12710iWWE185..RHD201210-201804

main47101-12720iNDE180..RHD..6FS;ZRE185..RHD..CVT201210-201505

main47101-12730iZWE186..RHD201210-201505

main47101-47090iZWE186..LHD201210-201505

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14057iZWE186201210-201505

main90507-15007iWWE185201210-201804

47110SUPPORT ASSY, BRAKE PEDAL

main47110-02580iADE186201210-201505

47121PAD, BRAKE PEDAL

main31321-42010iNDE180,NRE18#,ZRE185..6F201210-201804

main47121-42010iNRE185,ZRE185,ZWE186..CVT201210-201505

47264APIN(FOR PUSH ROD)

main47148-47020iZWE186201210-201505

main90249-06187iADE186201210-201505

main90249-08256iNDE180,NRE18#,ZRE185201210-201804

8401

9011908C42

main90119-08C42

9018508002

main90185-08002

9046816142

main90468-16142

9 parts on this diagram · 5 diagrams in section
