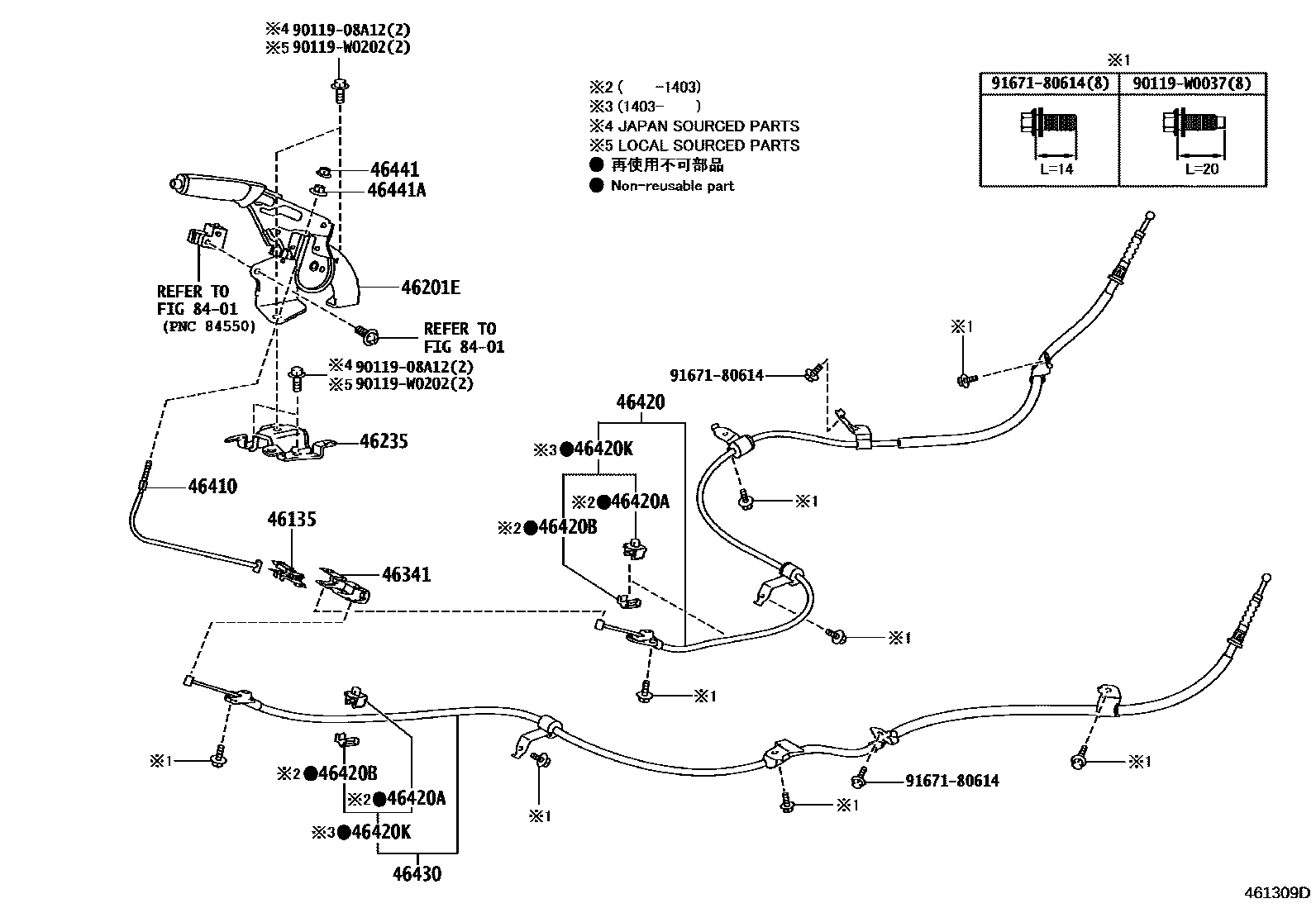

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46135STOPPER, PARKING BRAKE CABLE END

main46135-02040iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-02200-C0iADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N)201210-201505

BLACK,TRIM2#

main46201-02200-C0iADE186,NDE180,NRE180,ZRE185,ZWE186..LHD..(D,N)201210-201505

BLACK,TRIM1#,2#

main46201-02200-C1iNDE180,NRE185,WWE185,ZRE185,ZWE186..LHD..G201505

EU BLACK,TRIM2#,4#

main46201-02200-C1iNDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD..(D,N,S)201505

EU BLACK,TRIM2#

main46201-02350-C0iZWE186..RHD..G201210-201505

BLACK,TRIM2#

main46201-02350-C0iNDE180,NRE180,ZRE185,ZWE186..RHD..(D,N)201210-201505

BLACK,TRIM1#,2#

main46201-02350-C1iNDE180,NRE18#,WWE185,ZRE185,ZWE186..RHD..(D,N,S)201505

EU BLACK,TRIM2#

main46201-02350-C1iNDE180,NRE18#,WWE185,ZRE185,ZWE186..RHD..(D,N,S)201505

EU BLACK,TRIM2#,4#

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-02030iWWE185201210-201804

46341EQUALIZER, PARKING BRAKE

main46341-02110iNDE180,NRE18#,ZRE185,ZWE186201210-201804

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-02140iWWE185201210-201804

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-02121iNDE180,NRE180201210-201505

main46420-02130iADE186,ZRE185201210-201804

main46420-02270iZWE186201210-201505

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46411-12030iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201403

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46411-12040iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201403

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46402-12030iNDE180,NRE18#,ZRE185,ZWE186201403-201804

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-02121iNDE180,NRE180201210-201505

main46430-02130iWWE185201210-201804

main46430-02270iZWE186201210-201505

46441NUT, WIRE ADJUSTING, NO.1

main90179-06299iWWE185201210-201804

46441ANUT, WIRE ADJUSTING, NO.2

main46441-12010iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

8401

9011908A12

main90119-08A12

90119W0037

main90119-W0037

90119W0202

main90119-W0202

9167180614

main91671-80614

17 parts on this diagram · 3 diagrams in section
