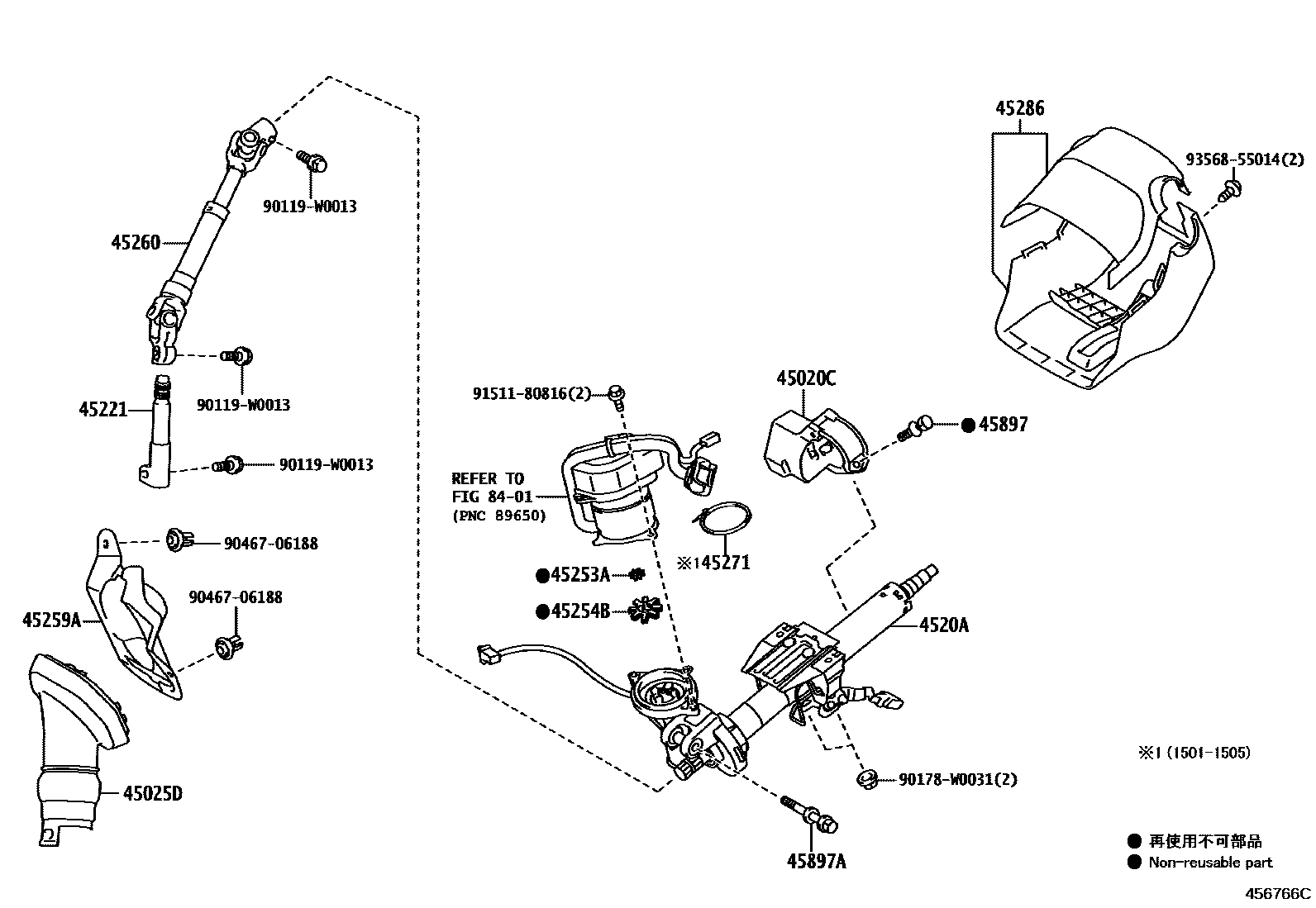

STEERING COLUMN & SHAFT

0001 1STARTING SYSTEM-PUSH BUTTON 0002 1 0003 1STARTING SYSTEM-PUSH BUTTON 0004 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-0D120iNDE180,NRE185,WWE185,ZRE185..LHD..G201505-201811

SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER)

main45020-0D130iNDE180,NRE185,WWE185,ZRE185..RHD..(N,S)201505-201811

SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-02080iNDE180,NRE180,ZRE185,ZWE186..RHD201210-201804

main45025-02090iADE186,NDE180,NRE180,ZRE185,ZWE186..LHD201210-201804

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-02072iNDE180,NRE185,WWE185,ZRE185..RHD..(N,S)201505-201508

SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER)

main4520A-02073iWWE185..RHD..G201509-201804

SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER)

main4520A-02080iNDE180,NRE180,ZRE185..RHD201210-201403

sub4520A-02081

main4520A-02081iNDE180,NRE180,ZRE185..RHD201404-201412

sub4520A-02082

main4520A-02082iNDE180,NRE180,ZRE185..RHD201501-201505

sub4520A-02083

main4520A-02082iNRE185,WWE185..RHD..G201505-201508

SMART ENTRY-WITHOUT & WITHOUT(ANSWER BACK BUZZER)

sub4520A-02083

main4520A-02083iWWE185..RHD..G201509-201804

SMART ENTRY-WITHOUT & WITHOUT(ANSWER BACK BUZZER)

main4520A-02090iZWE186..RHD201210-201403

sub4520A-02091

main4520A-02091iZWE186..RHD201404-201412

sub4520A-02092

main4520A-02092iZWE186..RHD201501-201508

sub4520A-02093

main4520A-02093iZWE186..RHD201509

main4520A-02102iNDE180,NRE18#,WWE185,ZRE185..LHD..(N,S)201505-201508

SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER)

sub4520A-02103

main4520A-02103iWWE185..LHD..G201509-201804

SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER)

main4520A-02110iADE186,NDE180,NRE180,ZRE185..LHD201210-201403

sub4520A-02111

main4520A-02111iADE186,NDE180,NRE180,ZRE185..LHD201404-201412

sub4520A-02112

main4520A-02112iADE186,NDE180,NRE180,ZRE185..LHD201501-201505

sub4520A-02113

main4520A-02112iNDE180,NRE185,WWE185,ZRE185..LHD..G201505-201508

SMART ENTRY-WITHOUT & WITHOUT(ANSWER BACK BUZZER)

sub4520A-02113

main4520A-02113iWWE185..LHD..(N,S)201509-201804

SMART ENTRY-WITHOUT & WITHOUT(ANSWER BACK BUZZER)

main4520A-02120iZWE186..LHD201210-201403

sub4520A-02121

main4520A-02121iZWE186..LHD201404-201412

sub4520A-02122

main4520A-02122iZWE186..LHD201501-201508

sub4520A-02123

main4520A-02123iZWE186..LHD201509

45221SHAFT, STEERING INTERMEDIATE

main45221-02100iWWE185201210-201804

45253ASPACER, ELECTRIC POWER STEERING MOTOR SHAFT

main45253-28130iWWE185201210-201804

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-02070iNDE180,NRE18#,ZRE185,ZWE186..RHD201210-201804

main45259-02080iWWE185..LHD201210-201804

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-02160iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201804

45271CLAMP, STEERING COLUMN, UPPER

main45271-52040iADE186,NDE180,NRE180,ZRE185,ZWE186201501-201505

45286COVER, STEERING COLUMN

main45286-02941-C0iZWE186..G201210-201505

BLACK,TRIM2#

sub45286-02941

main45286-02941-C0iZWE186..G201210-201505

WIRELESS DOOR LOCK-SMART(DRIVER & PASSENGER & BACK DOOR),BLACK,TRIM2#

sub45286-02941

main45286-02941-C0iZWE186..N201210-201505

BLACK,TRIM1#,2#

sub45286-02941

main45286-02941-C1iNRE180..LHD..N;NDE180,NRE185,WWE185,ZRE185..N,S201505-201604

SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),EU BLACK,TRIM2#

sub45286-02941

main45286-02941-C1iNDE180,NRE185,WWE185,ZRE185,ZWE186..G201505-201604

EU BLACK,TRIM2#,4#

sub45286-02941

main45286-02941-C1iNDE180,NRE185,WWE185,ZRE185,ZWE186..G201505-201604

EU BLACK,TRIM2#

sub45286-02941

main45286-02942-C0iADE186,NDE180,NRE180,ZRE185201210-201505

BLACK,TRIM2#

sub45286-02942

main45286-02942-C1iNDE180,NRE185,WWE185,ZRE185..LHD..6F..G201505-201604

EU BLACK,TRIM2#

sub45286-02942

main45286-02942-C1iNDE180,NRE18#,WWE185,ZRE185..D,N,S201505-201604

SMART ENTRY-WITHOUT & WITHOUT(ANSWER BACK BUZZER),EU BLACK,TRIM2#,4#

sub45286-02942

main45286-02942-C1iNDE180,NRE18#,WWE185,ZRE185..D,N,S201505-201604

SMART ENTRY-WITHOUT & WITHOUT(ANSWER BACK BUZZER),EU BLACK,TRIM2#

sub45286-02942

main45286-02949-C1iNDE180,NRE185,WWE185,ZRE185,ZWE186..G201604

EU BLACK,TRIM2#,4#

main45286-02949-C1iNDE180,NRE185,WWE185,ZRE185,ZWE186..G201604

EU BLACK,TRIM2#

main45286-02949-C1iNDE180,NRE185,WWE185,ZRE185,ZWE186..G201604

SMART ENTRY-WITH & WITHOUT(ANSWER BACK BUZZER),EU BLACK,TRIM2#

main45286-02950-C0iNDE180,NRE18#,WWE185,ZRE185..D,N,S201604

SMART ENTRY-WITHOUT & WITHOUT(ANSWER BACK BUZZER),EU BLACK,TRIM2#

main45286-02950-C0iNDE180,NRE18#,WWE185,ZRE185..D,N,S201604

EU BLACK,TRIM2#

45897BOLT, STEERING LOCK SET

main45897-12050iWWE185201210-201804

45897ABOLT, TILT STEERING PAWL SET

main45897-20020iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201212

main90119-10981iADE186,NDE180,NRE180,ZRE185,ZWE186201301-201610

main90119-10981iWWE185201610-201804

(J)

main90119-W0215iNDE180,NRE18#,ZRE185,ZWE186201610-201804

(L)

8401

90119W0013

main90119-W0013

90178W0031

main90178-W0031

9046706188

main90467-06188

9151180816

main91511-80816

9356855014

main93568-55014

18 parts on this diagram · 4 diagrams in section
