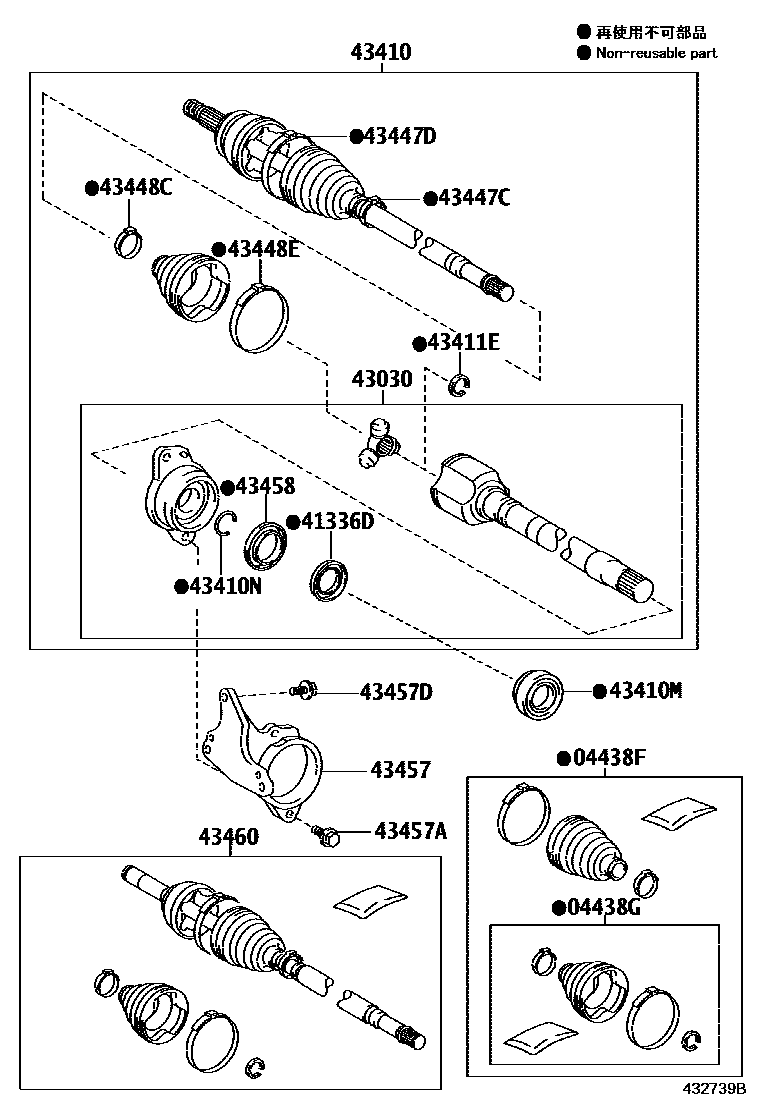

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1RH 0004 1RH 0005 1LH 0006 1LH 0007 1LH 0008 1

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-02580iNRE180201210-201505

main04427-02590iADE186201210-201505

main04427-05290iWWE185¥9,000201505-201804

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-02420iNRE180201210-201505

main04437-02430iNRE185,ZRE185201210-201811

main04437-02440iADE186201210-201505

main04437-02450iZWE186201210-201505

main04437-0F010iNDE180201210-201505

main04438-0F050iWWE185201505-201804

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-05010iNRE180201210-201505

main41336-05080iADE186¥740201210-201804

main41336-05100iZWE186201210-201505

main41336-05140iNRE185,ZRE185¥380201210-201811

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-02100iZWE186201210-201505

main43030-05240iADE186201210-201505

main43030-0F020iWWE185201505-201804

main43040-02030iNRE180¥10,000201210-201505

main43040-05150iZRE185201210-201811

main43040-0F020iNDE180201210-201505

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-02820iNRE180201210-201505

main43410-02830iZRE185201210-201505

sub43410-02B50

main43410-02840iADE186201210-201505

main43410-02850iZWE186201210-201505

main43410-02890iWWE185201505-201804

main43410-02B50iNRE185,ZRE185201505-201811

main43410-0F041iNDE180201210-201505

main43410-0F042iNDE180201609

main43410-0F090iNDE180201505-201608

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34041iNRE180¥350201210-201811

sub90311-34054¥350

main90311-35055iZRE185..CVT¥400201210-201504

sub90311-35069¥400

main90311-35065iNDE180,ZRE185..MTM¥270201210-201811

main90311-35069iZRE185..CVT¥400201505-201808

main90311-35076iNRE185..CVT¥400201808-201811

main90311-40036iWWE185¥310201210-201804

main90311-40037iZWE186¥470201210-201811

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52106iADE186¥160201210-201505

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-02230iZWE186201210-201505

main43425-05080iNRE185,ZRE185¥60201210-201811

main43425-05110iADE186201210-201505

main43425-05120iNDE180¥60201210-201505

main43425-0F050iWWE185201505-201804

main90080-52093iNRE180¥120201210-201505

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02110iNDE180¥310201210-201811

main42345-02820iZWE186201210-201505

main42345-05140iNRE180¥250201210-201505

main42345-05230iADE186¥320201210-201804

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02100iNRE185,ZRE185¥440201210-201811

main42345-02810iZWE186201210-201505

main42345-05130iNRE180¥260201210-201505

main42345-05240iWWE185¥360201210-201804

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02090iWWE185¥250201505-201804

main42345-02240iNRE180¥260201210-201505

main42345-05250iZWE186201210-201505

main42345-05340iNRE185,ZRE185¥270201210-201811

main42345-05350iADE186201210-201505

main42345-0F060iNDE180201210-201505

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02830iZWE186201210-201505

main42345-05030iNRE180201210-201505

main42345-05300iWWE185201505-201804

main42345-05320iNRE185,ZRE185¥400201210-201811

main42345-05330iADE186201210-201505

main42345-0F050iNDE180201210-201505

43457BRACKET, DRIVE SHAFT BEARING

main43457-05050iADE186201210-201505

main43457-0F040iWWE185201505-201804

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10361iADE186¥110201210-201311

*10-1.25PX22-19.5

main90105-W0214iADE186¥100201311-201505

*10-1.25PX22-19.5

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381iADE186¥100201210-201311

main90105-W0215iADE186201311-201505

43458COVER, FRONT DRIVE SHAFT DUST

main43458-05020iADE186¥680201210-201505

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09U11iNDE180201210-201505

main43460-09V80iNRE180201210-201505

main43460-09V90iZRE185201210-201811

main43460-09W00iADE186201210-201505

main43460-09W10iZWE186201210-201701

sub43460-09W11

main43460-09W11iZWE186201701

main43460-09Y80iWWE185201505-201804

17 parts on this diagram · 8 diagrams in section
