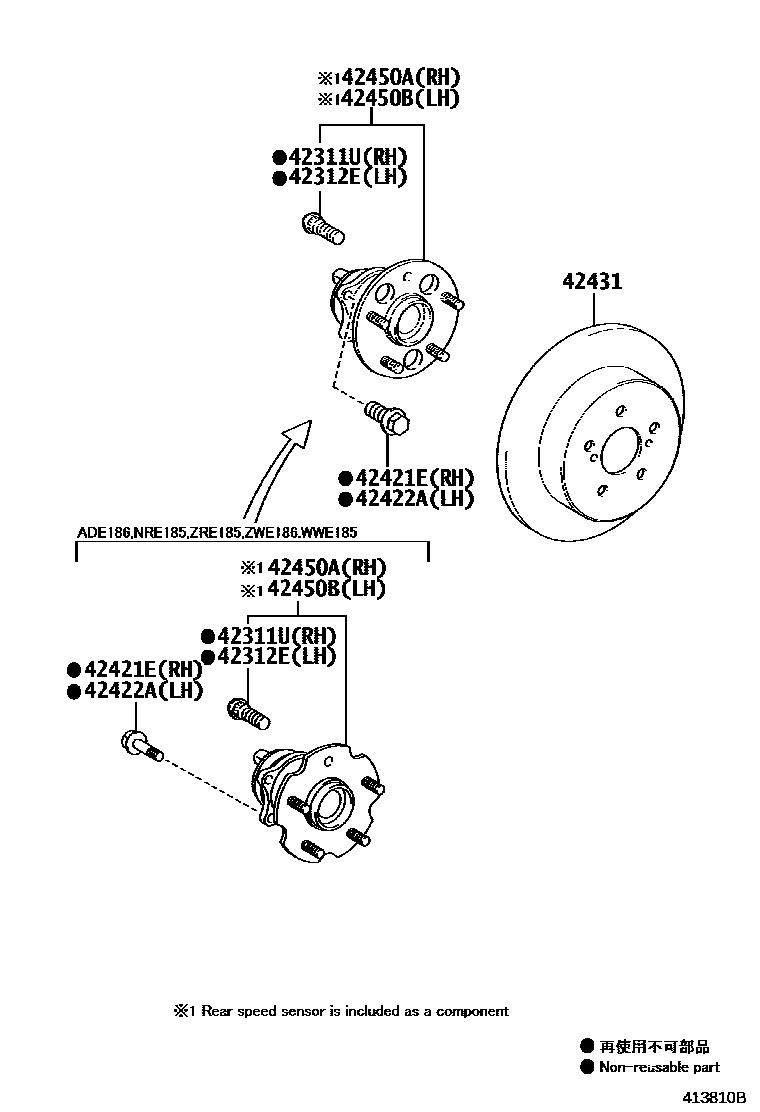

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iADE186,NDE180,NRE180,ZRE185,ZWE186¥240201210-201804

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iADE186,NDE180,NRE180,ZRE185,ZWE186¥240201210-201804

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-W0164iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-W0164iADE186,NDE180,NRE180,ZRE185,ZWE186201210-201505

42431DISC, REAR

main42431-02170iADE186,NDE180,NRE180,ZRE185,ZWE186¥8,100201210-201505

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-02120iNDE180,NRE180201210-201411

sub42450-02121

main42450-02121iNDE180,NRE180201412-201505

main42450-05080iADE186,ZRE185,ZWE186¥16,100201210-201501

sub42450-05081¥13,400

main42450-05081iWWE185¥13,400201502-201804

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-02120iNDE180,NRE180201210-201411

sub42450-02121

main42450-02121iNDE180,NRE180201412-201505

main42450-05080iADE186,ZRE185,ZWE186¥16,100201210-201501

sub42450-05081¥13,400

main42450-05081iADE186,ZRE185,ZWE186¥13,400201502-201804

7 parts on this diagram · 1 diagram in section
