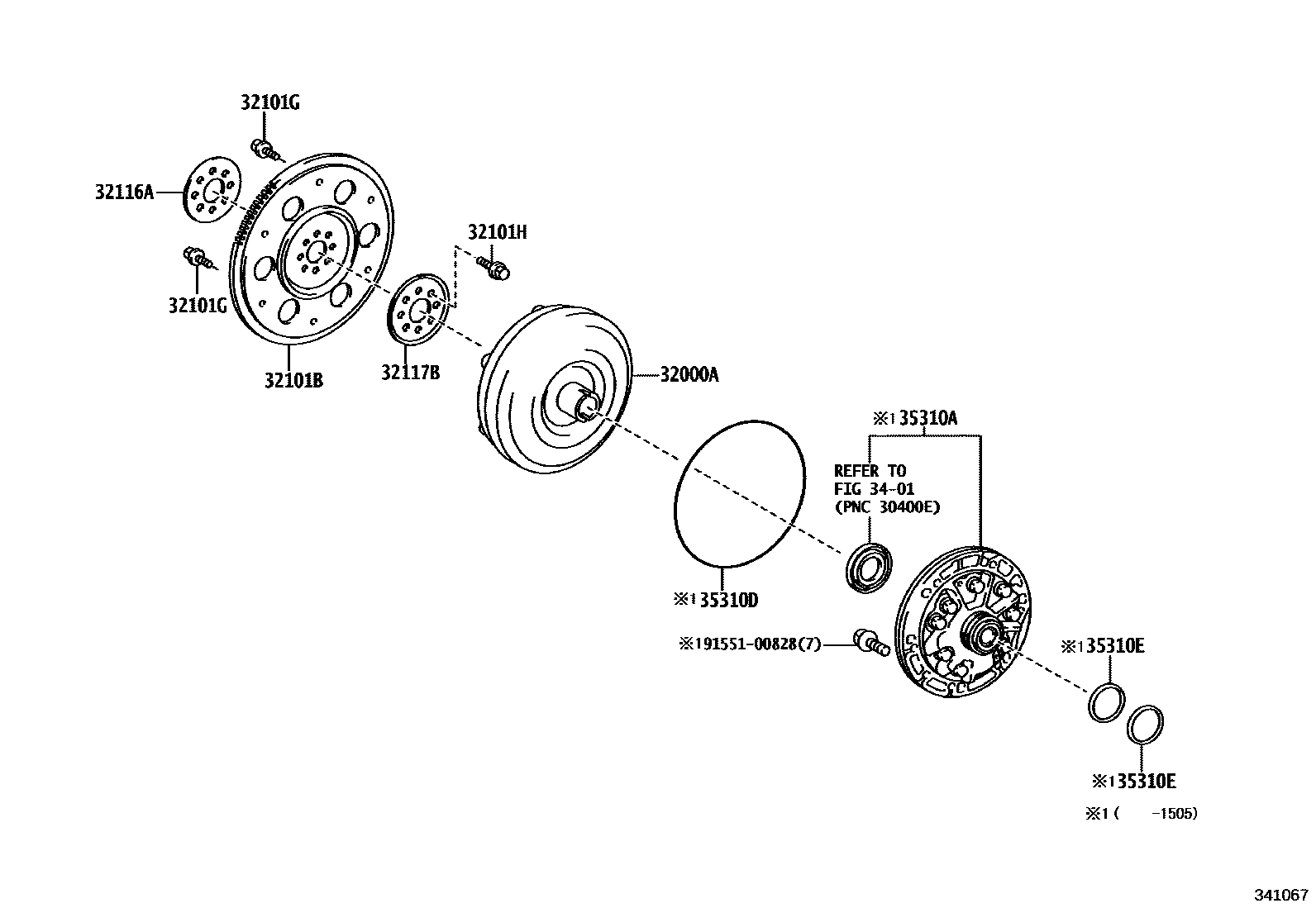

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-12400iZRE185..CVT¥72,300201210-201505

main32000-12450iNRE185..CVT¥95,500201505-201711

sub32000-12451¥79,500

main32000-12451iNRE185..CVT¥79,500201712

main32000-12490iZRE185..CVT¥72,300201505

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12100iZRE185..CVT¥11,600201210-201505

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iZRE185..CVT¥80201210-201505

*8-1.25PX12-8.4,BLACK

main90119-08498iNRE185,ZRE185..CVT¥80201210-201505

*8-1.25PX12-8,YELLOW

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iZRE185..CVT¥130201210-201505

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iZRE185..CVT¥610201210-201505

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iZRE185..CVT¥800201210-201505

3401

35310APUMP ASSY, FRONT OIL

main35310-12121iZRE185..CVT¥26,500201210-201505

35310DRING, O (FOR FRONT OIL PUMP)

main90301-99133iZRE185..CVT¥260201210-201505

sub90301-99202¥200

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12030iZRE185..CVT¥320201210-201505

9155100828

main91551-00828¥80

11 parts on this diagram · 1 diagram in section
