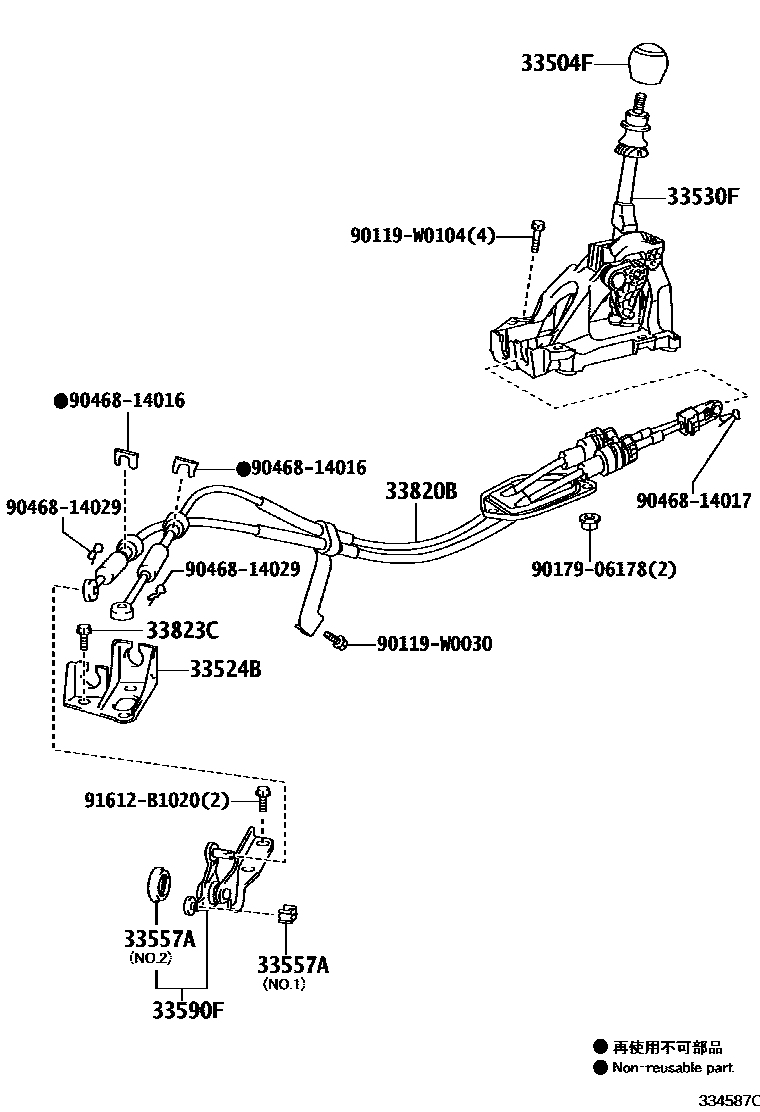

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-02501-C3iNDE180,NRE18#,WWE185,ZRE185..6F..(N,S)201505

BLACK,TRIM2#

main33504-19005iZWE186..RHD201505

main33504-19015iZWE186..LHD201505

main33504-49005-B0iZWE186..RHD..G201210-201505

ORNAMENT SILVER,TRIM1#,2#

main33504-49006-B0iZWE186..LHD..G201210-201505

ORNAMENT SILVER,TRIM1#,2#

main33542-12360-C0iNRE185,ZRE185..CVT..(N,S)201505

BLACK,TRIM2#

33524BBRACKET, CONTROL CABLE

main33524-12090iADE186201210-201505

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-05110iADE186,NDE180,NRE180,ZRE185..6F201210-201505

33557ACOVER, SELECTING BELLCRANK DUST, NO.1

main33557-20010iADE186201210-201505

NO.2

main33557-33010iADE186201210-201505

NO.1

33590FCRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT)

main33590-20040iADE186201210-201505

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-02810iNRE180201505-201802

main33820-02811iNRE180201803

main33820-05310iWWE185201505-201802

main33820-05311iWWE185201803-201804

main33820-05320iNDE180,NRE185,ZRE185..6F201505-201802

main33820-05321iNDE180,NRE185,ZRE185..6F201803

main33820-05350iADE186201210-201505

main33820-05360iNDE180,ZRE185..6F201210-201505

sub33820-05361

main33820-12G10iZRE185..CVT201210-201505

main33820-12G11iNRE185,ZRE185..CVT201505

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-12190iZRE185..CVT201210-201505

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079×2iZRE185..CVT201210-201505

(J)

main90119-08C60×3iNDE180,NRE18#,ZRE185..6F201505

(J)

main90119-W0016×2iNRE185,ZRE185..CVT201505

sub90119-08026

main90119-W0255×3iNDE180,NRE18#,ZRE185..6F201508

(L)

main91611-G0820×3iWWE185201505-201804

90119W0030

main90119-W0030

90119W0104

main90119-W0104

9017906178

main90179-06178

9046814016

main90468-14016

9046814017

main90468-14017

9046814029

main90468-14029

91612B1020

main91612-B1020

15 parts on this diagram · 9 diagrams in section
