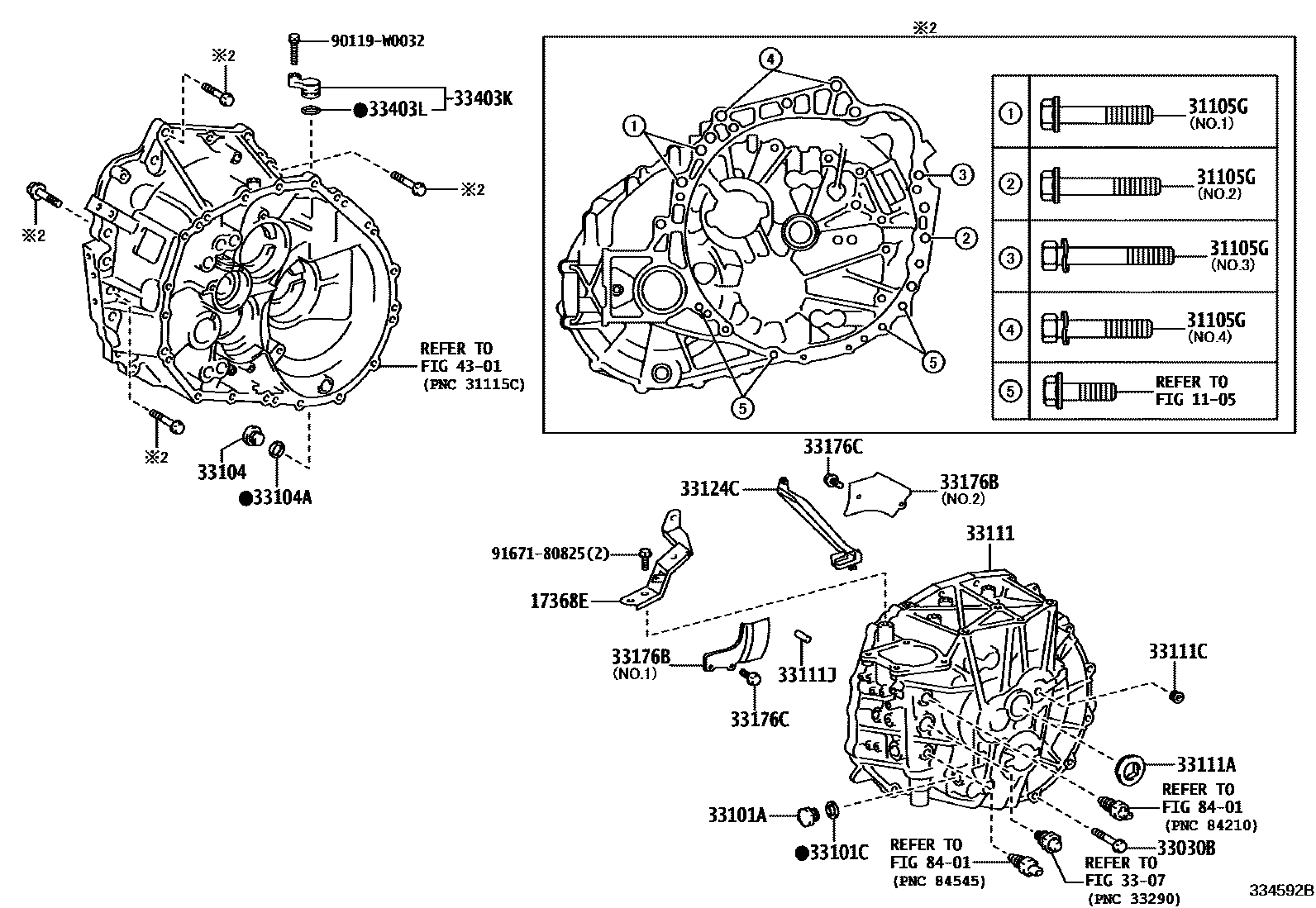

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
1105
17368ESUPPORT, AIR TUBE
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
*10-1.25PX80-26,(L),NO.2
*12-1.25PX45-30,(L),T/P B:REF.ILLUST
*8-1.25PX40-22,NO.2
*10-1.25PX45-26,(L)
*10-1.25PX45-26,(L),NO.1
*10-1.25PX60-30,NO.1
*10-1.25PX65-30,NO.2
*12-1.75PX100-40,NO.1
*12-1.75PX80-30,NO.3
*12-1.25PX45-30,TYPE A:REFER ILLUST.
*12-1.25PX75-30,NO.3
*12-1.25PX60-30,NO.4
*10-1.25PX45-26,(J),NO.1
*10-1.25PX45-26,(J)
*10-1.25PX80-26,(J),NO.2
*10-1.25PX80-26,NO.2
*12-1.25PX45-30,(J),T/P B:REF.ILLUST
33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
*8-1.25PX45-27.5
*8-1.25PX40-22,(L)
*8-1.25PX40-22,(J)
*8-1.25PX40-22
3307
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
NO.1
NO.2
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
NO.2
NO.1
NO.2
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33111APLUG, MANUAL TRANSMISSION CASE
33111CPLUG(FOR TRANSMISSION CASE)
OD=18
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=23,OD=8
33124CPIPE, OIL RECEIVER, NO.1(MTM)
33176BSEPARATOR, TRANSMISSION OIL(MTM)
NO.1
NO.2
NO.1
NO.2
NO.1
NO.2
33176CBOLT(FOR TRANSMISSION OIL SEPARATOR)
(L)
(J)
33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403LRING, O
4301
8401
90119W0032
9167180825
