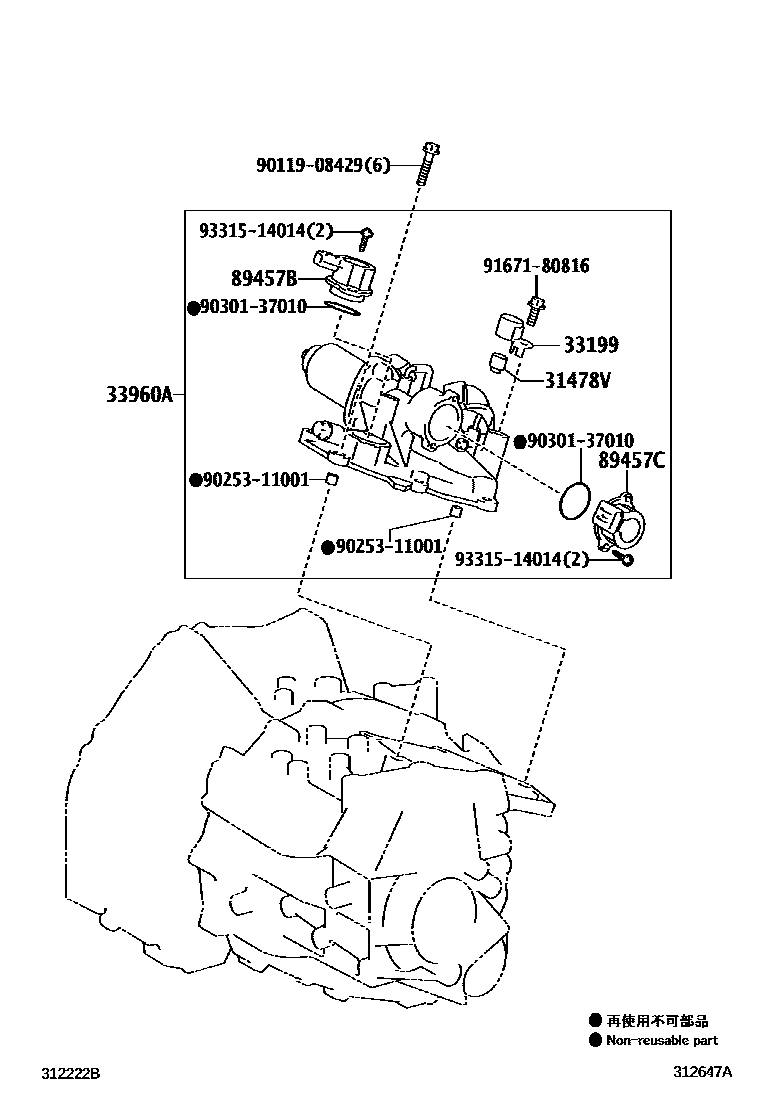

PUMP & ACTUATOR, SEQUENTIAL OR MULTI-MODE MANUAL TRANSAXLE

31478VCAP, BREATHER PLUG

main31478-30020iNDE180..6FS201210

33199PROTECTOR, BREATHER

main33199-12010iNDE180..6FS201210

33960AACTUATOR ASSY, SHIFT & SELECT

main33960-12025iNDE180..6FS201210

89457BSTROKE SENSOR, SHIFT

main89457-52020iNDE180..6FS201210-201505

89457CSTROKE SENSOR, SELECT

main89457-12021iNDE180..6FS201210-201505

9011908429

main90119-08429

9025311001

main90253-11001

9030137010

main90301-37010

9167180816

main91671-80816

9331514014

main93315-14014

10 parts on this diagram · 1 diagram in section
