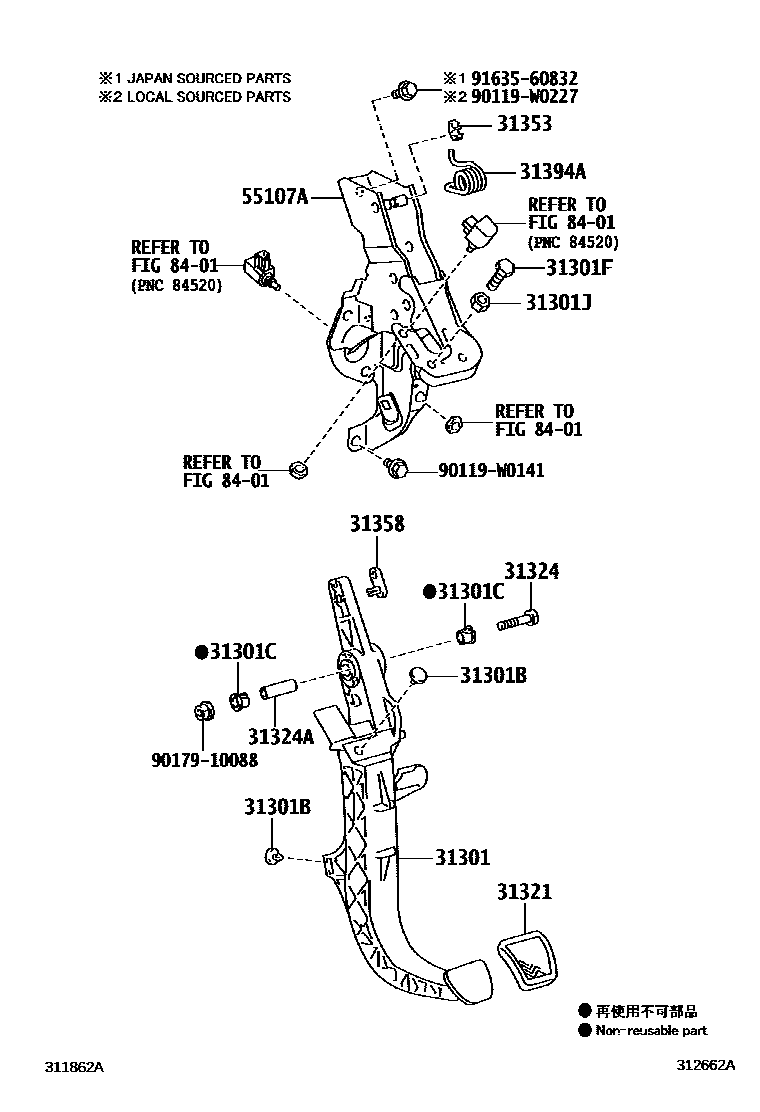

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0010 1 0011 1 0012 1 0013 1 0014 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-02500iNRE180..LHD201210-201407

main31301-0F081iNRE180..LHD201407-201505

main31301-0F141iNDE180,NRE185,ZRE185..LHD..6F201210-201804

main31311-12371iNDE180,NRE180,ZRE185..RHD..6F201210-201804

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iNDE180,NRE180,ZRE185..RHD..6F201210-201804

main90541-W0002iADE186,NDE180,NRE180,ZRE185..LHD..6F201210-201804

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iADE186,NDE180,NRE180,ZRE185..6F201210-201804

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iADE186,NDE180,NRE180,ZRE185..6F201210-201804

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94130-61000iADE186,NDE180,NRE180,ZRE185..6F201210-201804

31321PAD, CLUTCH PEDAL

main31321-42010iADE186,NDE180,NRE180,ZRE185..6F201210-201804

31324SHAFT, CLUTCH PEDAL

main90101-10039iNDE180,NRE18#,ZRE185..RHD..6F201210-201804

main90109-10167iWWE185..LHD201210-201804

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iNDE180,NRE180,ZRE185..RHD..6F201210-201804

31353HOLDER, CLUTCH PEDAL SPRING

main31353-0F010iNRE180..LHD201210-201804

main31353-26010iNDE180,NRE185,ZRE185..RHD..6F201210-201804

31358CAP, OVER CENTER SPRING

main31358-42010iWWE185..RHD201210-201804

31394ASPRING, PEDAL W/HOOK

main31394-02020iNRE180..LHD201210-201407

main31394-0F020iNDE180,NRE185,ZRE185..LHD..6F201210-201804

main31394-12060iNDE180,ZRE185..RHD..6F201210-201804

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0F061iNRE180..LHD201407-201505

main55107-0F071iNDE180,NRE185,ZRE185..LHD..6F201210-201804

main55107-12271iNRE180..RHD201210-201505

main55107-12291iNDE180,NRE185,ZRE185..RHD..6F201210-201804

8401

90119W0141

main90119-W0141

90119W0227

main90119-W0227

9017910088

main90179-10088

9163560832

main91635-60832

17 parts on this diagram · 13 diagrams in section
