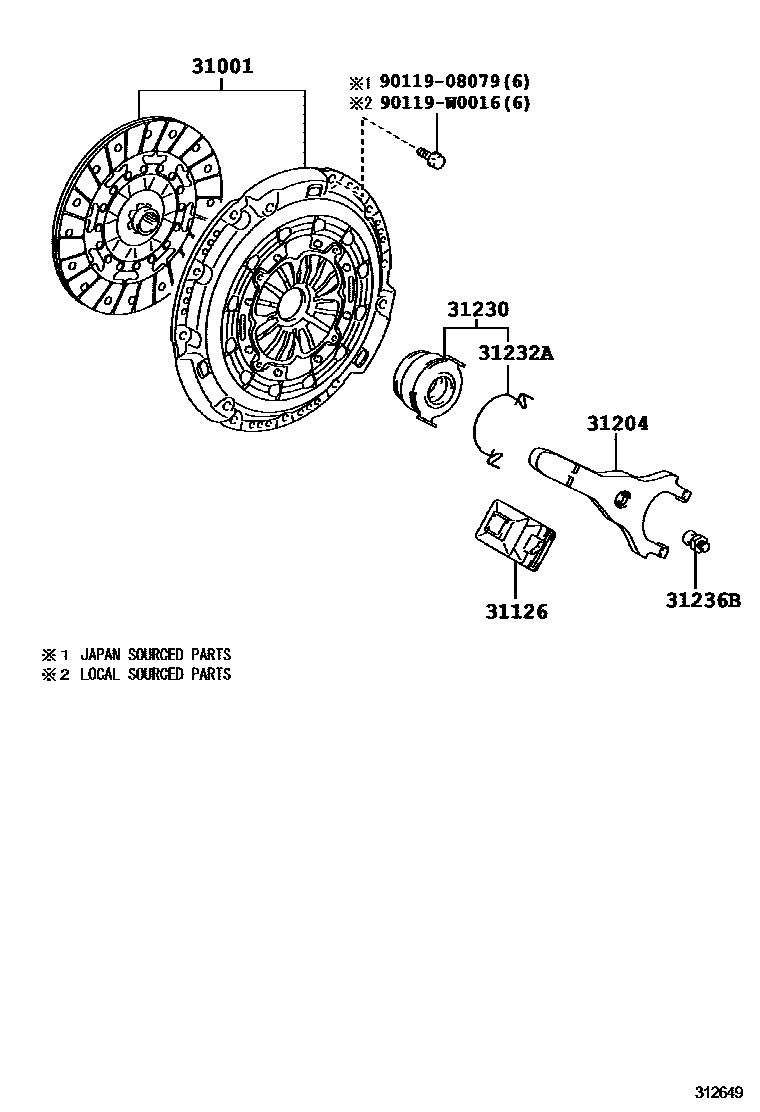

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

31001CLUTCH SET, COVER & DISC

main31001-05140iWWE185201210-201804

31126BOOT, CLUTCH RELEASE FORK

main31126-20080iADE186¥710201210-201505

main31126-64020iWWE185201505-201804

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20140iADE186¥4,970201210-201505

main31204-64030iWWE185201505-201804

31230BEARING ASSY, CLUTCH RELEASE

main31230-20200iWWE185¥3,960201210-201804

31232ACLIP, RELEASE BEARING HUB

main31232-20031iWWE185¥160201210-201804

31236BSUPPORT, RELEASE FORK

main31236-20080iADE186¥520201210-201309

main31236-64010iWWE185201505-201804

main31236-64020iADE186201309-201408

sub31236-64021

main31236-64021iADE186201409-201505

9011908079

main90119-08079¥120

90119W0016

main90119-W0016

8 parts on this diagram · 6 diagrams in section
