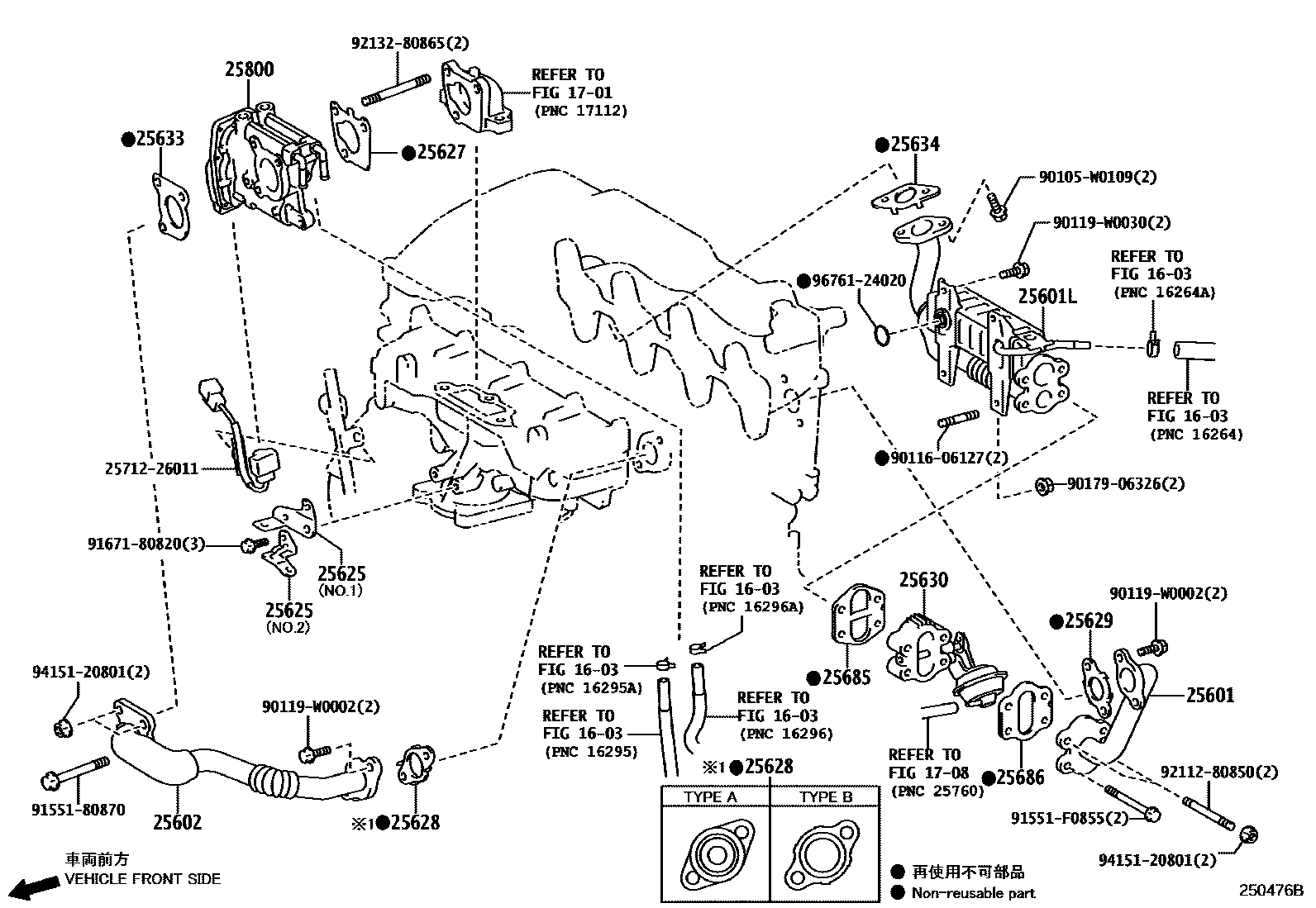

EXHAUST GAS RECIRCULATION SYSTEM
1603
1701
1708
25601PIPE SUB-ASSY, EGR, NO.1
(L)
(J)
25602PIPE SUB-ASSY, EGR, NO.2
25625BRACKET, EGR VALVE
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
25627GASKET, EGR VALVE
25628GASKET, EGR INLET
TYPE B:REFER ILLUST.
25629GASKET, EGR VALVE ADAPTER
25630VALVE ASSY, EGR, NO.2
25633GASKET, EGR VALVE
25685GASKET, EGR COOLER, NO.1
25686GASKET, EGR COOLER, NO.2
25800VALVE ASSY, ELECTRIC EGR CONTROL
2571226011WIRE, EMISSION CONTROL VALVE
main25712-26011
90105W0109
main90105-W0109
9011606127
main90116-06127
90119W0002
main90119-W0002
90119W0030
main90119-W0030
9017906326
main90179-06326
9155180870
main91551-80870
91551F0855
main91551-F0855
9167180820
main91671-80820
9211280850
main92112-80850
9213280865
main92132-80865
9415120801
main94151-20801
9676124020
main96761-24020
29 parts on this diagram · 7 diagrams in section
