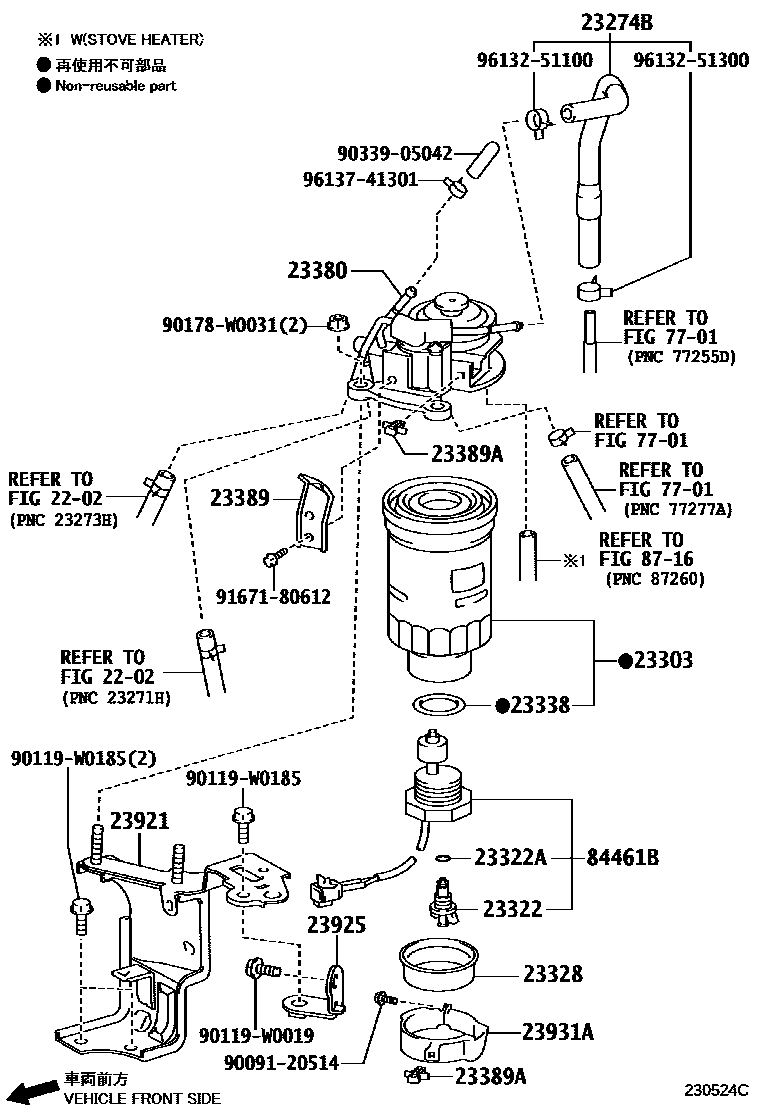

FUEL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1

2202

23274BHOSE, FUEL, NO.3

main23274-0N040i1NDTV..NDE180201505

main23274-0T010i1NDTV..NDE180201210-201302

(L)

main23274-0X010i1WW..WWE185201505-201708

(L)

main23274-0X011i1WW..WWE185201708-201804

(L)

main23274-26060i1NDTV..NDE180201210-201302

(J)

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-26160i1NDTV..NDE180201210-201505

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i1NDTV..NDE180201505

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1NDTV..NDE180201505

23328GASKET(FOR FUEL FILTER)

main23385-0X010i1WW..WWE185201505-201708

main23385-30160i1NDTV..NDE180201210-201505

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1NDTV..NDE180201505

23380CAP ASSY, FUEL FILTER

main23380-0R051i1NDTV..NDE180201210-201302

sub23380-26170

main23380-0R052i1NDTV..NDE180201302-201305

main23380-26171i1NDTV..NDE180201305-201505

main23380-0R061i1NDTV..NDE180..LHD201210-201302

COLD AREA SPEC

sub23380-26160

main23380-0R062supersedes 23380-0R052i1NDTV..NDE180..LHD201302-201305

COLD AREA SPEC

main23380-26161supersedes 23380-26171i1NDTV..NDE180..LHD201505

COLD AREA SPEC

23389CLAMP, FUEL FILTER

main23389-17530×2i1WW..WWE185201708-201804

main23389-26130i1NDTV..NDE180201210-201505

23389ACLAMP, FUEL FILTER

main23389-27130×2i1NDTV..NDE180201505

23921SUPPORT, FUEL FILTER

main23921-0R010i1ADFTV..ADE186201210

main23921-0X010i1WW..WWE185201505-201804

23925STAY, FUEL FILTER SUPPORT

main23925-0R010i1NDTV..NDE180201210-201505

23931ACOVER, FUEL FILTER

main23931-26030i1NDTV..NDE180201210-201302

main23931-26031i1NDTV..NDE180201302-201505

7701

84461BSWITCH, LEVEL WARNING

main84461-60081iADE186201210-201505

sub84461-60082

8716

9009120514

main90091-20514

90119W0019

main90119-W0019

90119W0185

main90119-W0185

90178W0031

main90178-W0031

9033905042

main90339-05042

9167180612

main91671-80612

9613251100

main96132-51100

9613251300

main96132-51300

9613741301

main96137-41301

25 parts on this diagram · 5 diagrams in section
