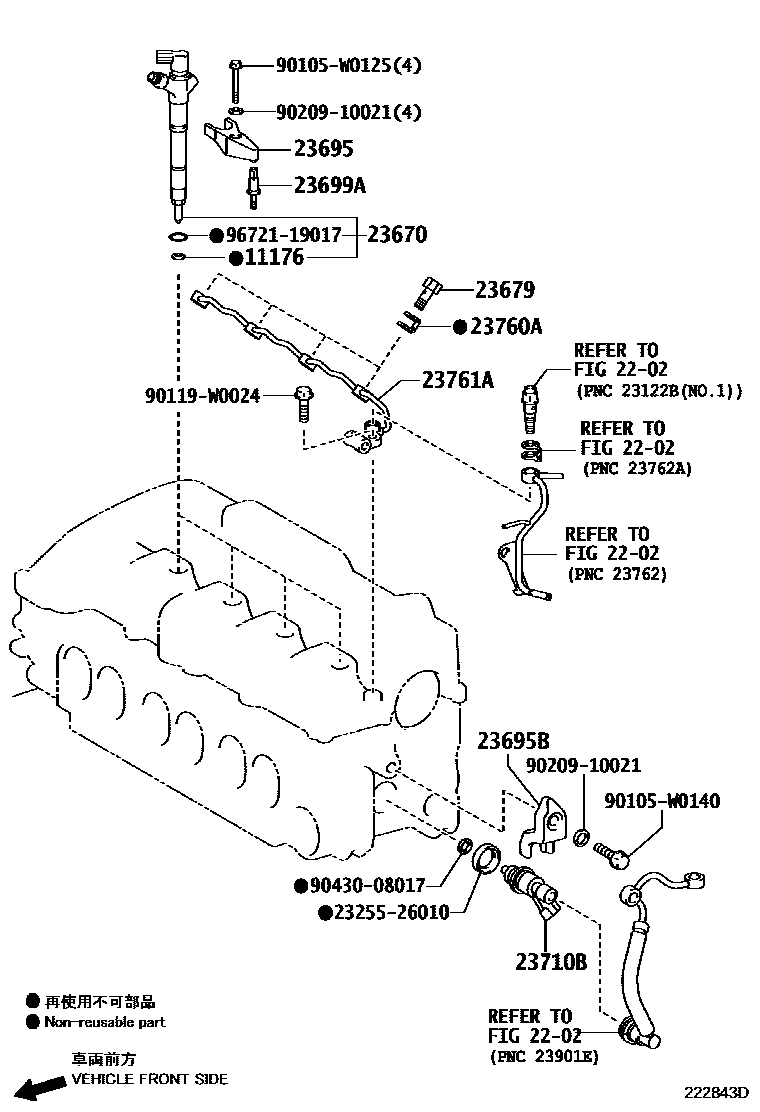

INJECTION NOZZLE

0001 1 0002 1 0003 1 0004 1

11176SEAT, INJECTION NOZZLE

main11176-26020i1ADFTV..ADE186201210

main11176-33010i1NDTV..NDE180201210-201505

2202

23670INJECTOR ASSY

main23670-09390i1NDTV..NDE180201210-201505

main23670-09410i1NDTV..NDE180201505

main23670-29115i1ADFTV..ADE186201210-201403

sub23670-29116

main23670-29116i1ADFTV..ADE186201403

main23670-WA020i1WW..WWE185201505-201804

23679SCREW, INJECTOR FOLLOW

main23679-26020i1ADFTV..ADE186201210

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-0R021i1ADFTV..ADE186201210

main23695-33020i1NDTV..NDE180201210-201505

main23695-WA010i1WW..WWE185201505-201804

23695BCLAMP, NOZZLE HOLDER, NO.2

main23695-26011i1ADFTV..ADE186201210

23699ASEAT, NOZZLE HOLDER CLAMP

main23699-0R021i1ADFTV..ADE186201210

main23699-33020i1NDTV..NDE180201210-201505

23710BINJECTOR ASSY, EXHAUST FUEL ADDITION

main23710-26012i1ADFTV..ADE186201210

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-0N030i1NDTV..NDE180201505

main23760-0W010i1NDTV..NDE180201210-201505

main23761-WA021i1WW..WWE185201505-201804

23760AGASKET

main90904-30008i1ADFTV..ADE186201210

23761APIPE, NOZZLE LEAKAGE, NO.1

main23761-0R040i1ADFTV..ADE186201210

(L)

main23761-26030i1ADFTV..ADE186201210

(J)

2325526010VALVE, THERMOSTATIC VACUUM TRANSMITTING, NO.1

main23255-26010

90105W0125

main90105-W0125

90105W0140

main90105-W0140

90119W0024

main90119-W0024

9020910021

main90209-10021

9043008017

main90430-08017

9672119017

main96721-19017

18 parts on this diagram · 4 diagrams in section
