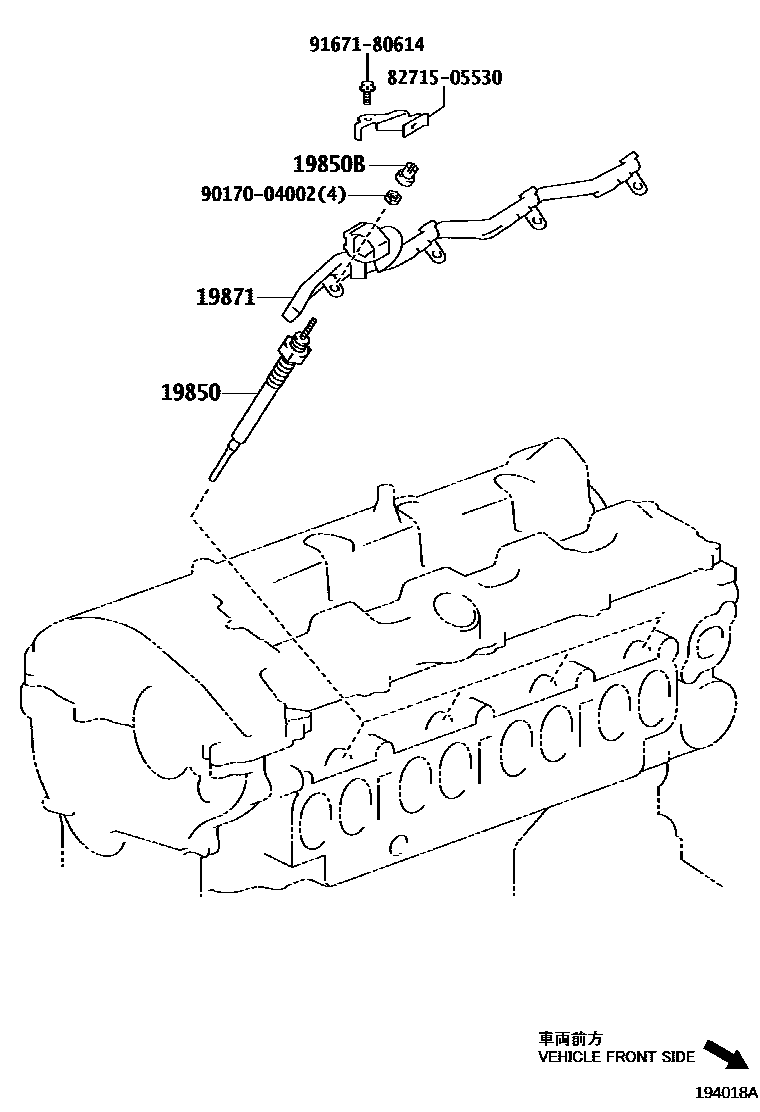

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

19850PLUG ASSY, GLOW

main19850-26030×4i1ADFTV..ADE186201210

*BV-GV=12V-11V

main19850-33020×4i1NDTV..NDE180201210-201505

*BV-GV=12V-11V

main19850-33040×4i1NDTV..NDE180201505

*BV-GV=12V-7V

main19850-WA020×4i1WW..WWE185201505-201804

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024×4i1ADFTV..ADE186201210

19871CONNECTOR, GLOW PLUG NO.1

main19871-0N010i1NDTV..NDE180201505

main19871-0R010i1ADFTV..ADE186201210

main19871-33020i1NDTV..NDE180201210-201505

8271505530BRACKET,WIRING HARNESS CLAMP

main82715-05530

9017004002

main90170-04002

9167180614

main91671-80614

6 parts on this diagram · 7 diagrams in section
