WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

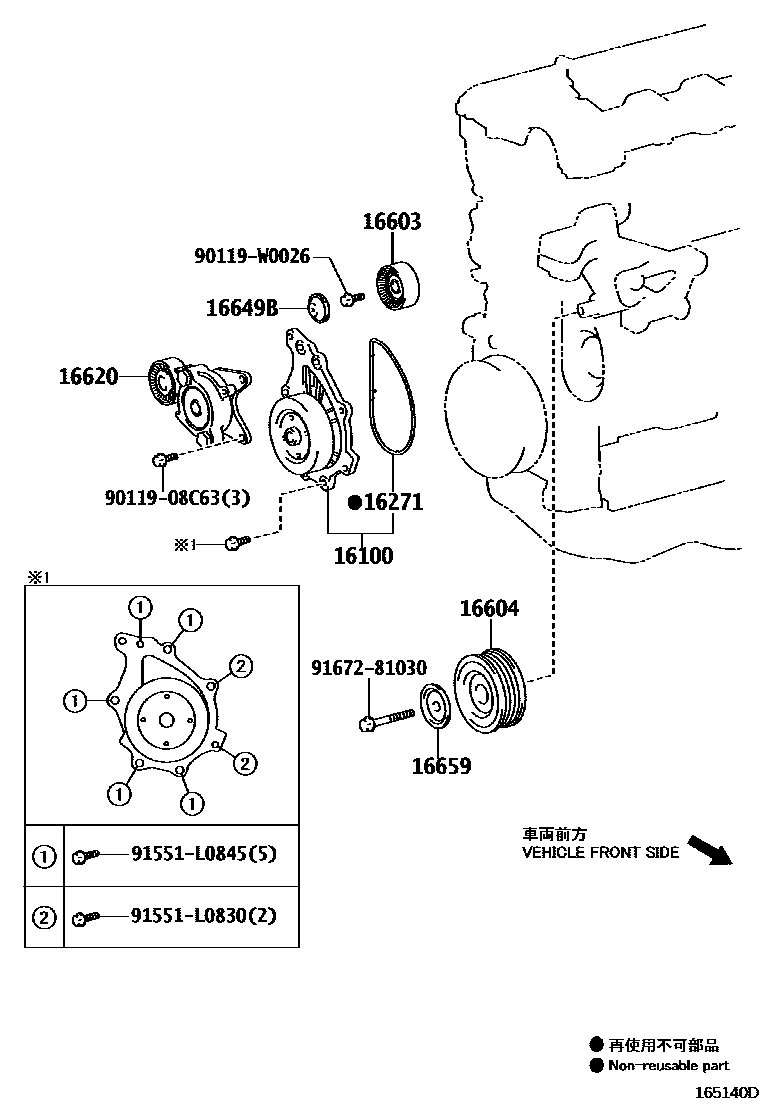

16100PUMP ASSY, ENGINE WATER

main16100-09501i1ZRFAE..ZRE185201210-201505

(L)

sub16100-09502

main16100-09580i1ADFTV..ADE186201210-201409

sub16100-09581

main16100-09581i1ADFTV..ADE186201409

main16100-09610i1NDTV..NDE180201210-201505

main16100-09680i1NDTV..NDE180201505

main16100-39466i1ZRFAE..ZRE185201210-201505

(J)

main16100-80004i1NRFE..NRE180201210-201308

sub16100-80010

sub91552-81050

main16100-80010i1NRFE..NRE180201308-201505

sub16100-80019

main16100-80014i8NRFTS..NRE185201505

main16100-WA010i1WW..WWE185201505-201804

main161A0-29015i2ZRFXE..ZWE186201211-201505

16271GASKET, WATER PUMP

main16271-26010i1ADFTV..ADE186201210

main16271-33030i1NDTV..NDE180201210-201505

main16271-37010i1ZRFAE..ZRE185201210-201505

main16271-37020i2ZRFXE..ZWE186201210-201505

main16271-47031i1NRFE..NRE180201210-201505

main16271-47060i8NRFTS..NRE185201505

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-0R010i1ADFTV..ADE186201210

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-26011i1ADFTV..ADE186201210-201408

sub16604-26012

main16604-26012i1ADFTV..ADE186201409

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0N010i1NDTV..NDE180201504-201505

(L)

main16620-0R010i1ADFTV..ADE186201210

main16620-33040i1NDTV..NDE180201210-201411

sub16620-33041

main16620-33041i1NDTV..NDE180201412-201601

(J)

sub16620-0N010

main16620-47030i1NRFE..NRE180201210-201505

sub16620-47031

main16620-47060i8NRFTS..NRE185201505-201612

sub16620-47061

main16620-47061i8NRFTS..NRE185201701

main16620-WA010i1WW..WWE185201505-201804

16649BPLATE, IDLER PULLEY COVER

main16649-0R010i1ADFTV..ADE186201210

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-26010i1ADFTV..ADE186201210

9011908C63

main90119-08C63

90119W0026

main90119-W0026

91551L0830

main91551-L0830

91551L0845

main91551-L0845

9167281030

main91672-81030

12 parts on this diagram · 7 diagrams in section
