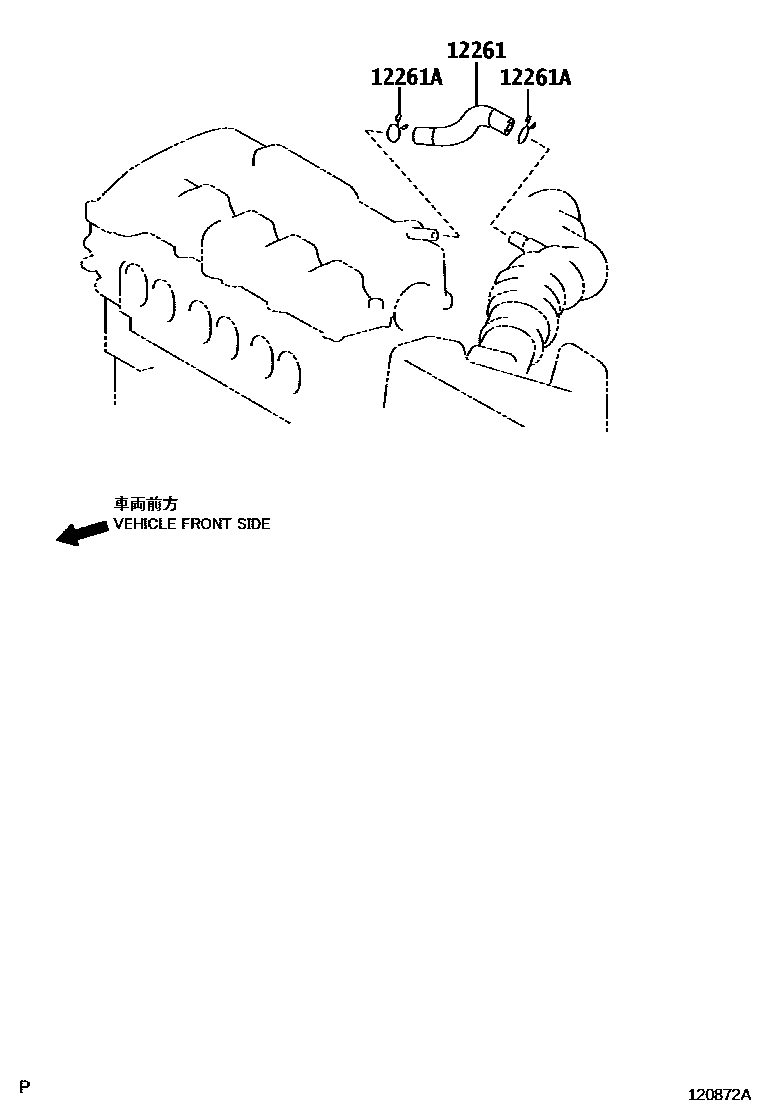

VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

12261HOSE, VENTILATION

main12261-0R030i1ADFTV..ADE186201210

main12261-33120i1NDTV..NDE180201210-201505

main12261-33130i1NDTV..NDE180201505

main12261-37050i1ZRFAE..ZRE185201210-201505

main12261-37060i2ZRFXE..ZWE186201505

main12261-47010i1NRFE..NRE180201210-201505

main12261-47110i8NRFTS..NRE185201505

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90466-22005i1ZRFAE,2ZRFXE..ZRE185,ZWE186201702

NO.2,TYPE B:REF ILL.

main90466-23003i1NDTV..NDE180201505

NO.2:REFER ILLUST.

main90467-15120i1ZRFAE,2ZRFXE..ZRE185,ZWE186201505

NO.1

main90467-16035i1NRFE..NRE180201210-201505

main90467-21004×2i1NDTV..NDE180201210-201505

main90467-22010×2i8NRFTS..NRE185201505

main90467-23002i1ZRFAE,2ZRFXE..ZRE185,ZWE186201210-201505

NO.2

2 parts on this diagram · 7 diagrams in section
