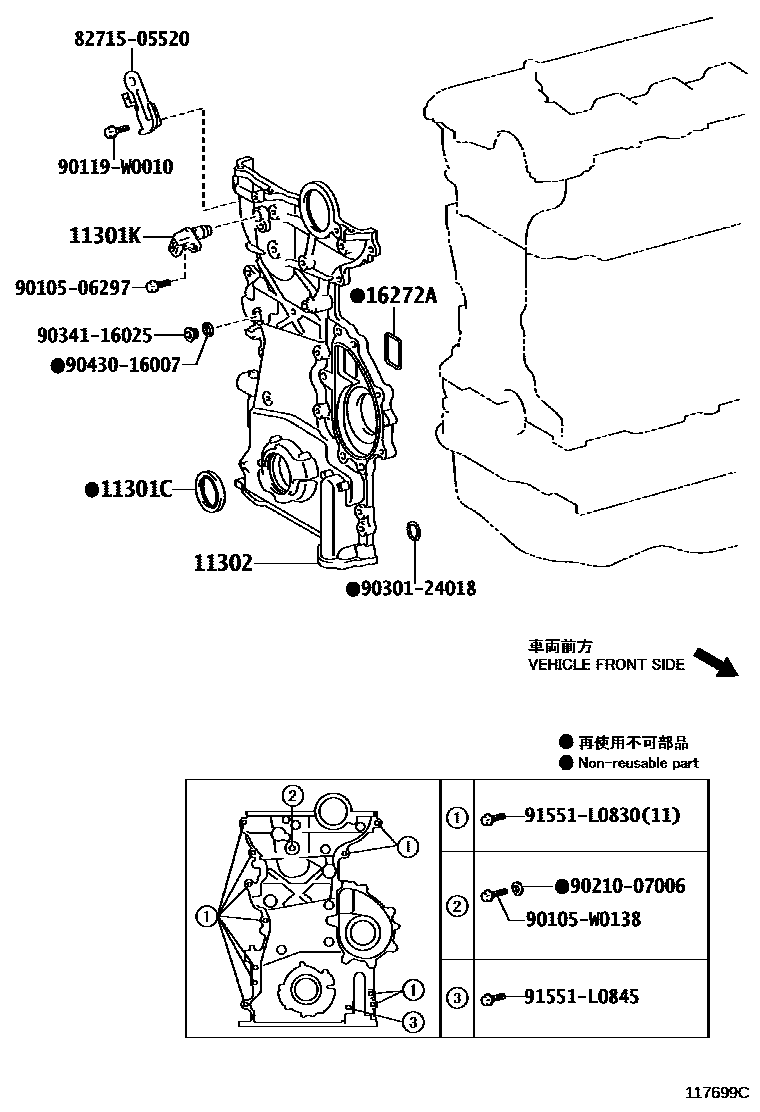

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90069-38025i1WW..WWE185201505-201804

main90311-W0009i1ADFTV..ADE186201210

sub90311-W0019

11301KSENSOR, CRANK POSITION

main90919-05061i1ADFTV..ADE186201210

main90919-05073i1NRFE..NRE180..RHD201210-201505

main90919-05079i1NRFE..NRE180..RHD201210-201405

main90919-05084i1NDTV..NDE180201210-201405

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-0R030i1ADFTV..ADE186201210

main11310-0T070i1ZRFAE..ZRE185201210-201409

(L)

sub11310-0T071

main11310-0T071i1ZRFAE..ZRE185201410-201505

(L)

main11310-0T100i2ZRFXE..ZWE186201210-201505

(L)

main11310-37011i1ZRFAE..ZRE185201210-201505

(J)

main11310-37062i2ZRFXE..ZWE186201210-201505

(J)

main11321-0N010i1NDTV..NDE180201210-201405

sub11321-0N040

sub13559-33021

16272AGASKET, WATER PUMP NO.2

main16272-26010i1ADFTV..ADE186201210

8271505520BRACKET,WIRING HARNESS CLAMP

main82715-05520

9010506297

main90105-06297

90105W0138

main90105-W0138

90119W0010

main90119-W0010

9021007006

main90210-07006

9030124018

main90301-24018

9034116025

main90341-16025

9043016007

main90430-16007

91551L0830

main91551-L0830

91551L0845

main91551-L0845
