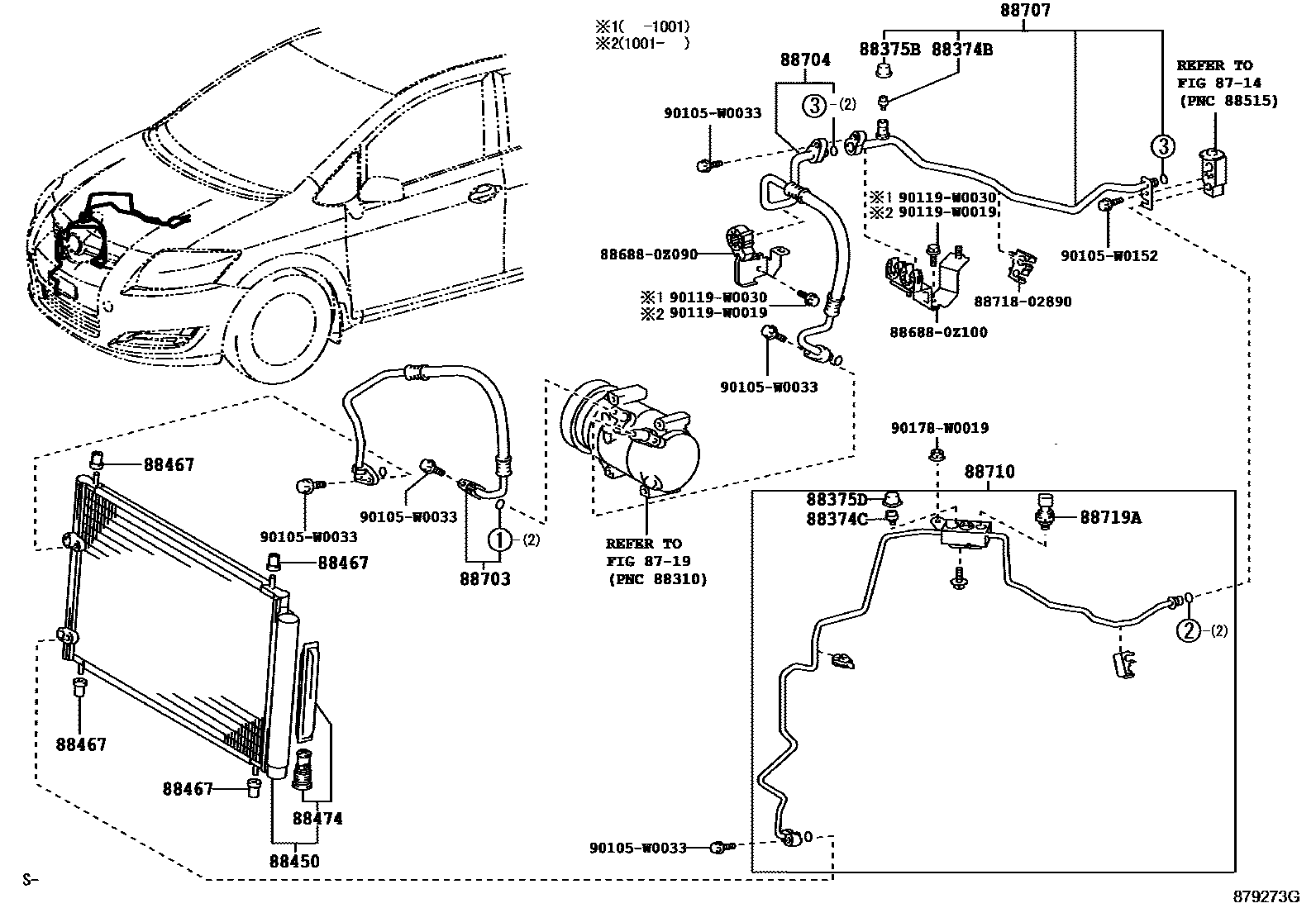

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1O-RING

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iNDE150,ZRE151..SOL200702-200903

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88374-30010iADE15#..SOL200702-200903

AIR CONDITIONER-WITHOUT

main88374-30010iADE150..LHD..5D..SOL..DCRL;ADE157,NDE150,NRE150,ZRE15#..5D..(6F,6FS)..SOL200811-201001

AIR CONDITIONER-MANUAL

main88374-30010iADE15#,ZRE152..LHD..SOL;NDE150,NRE150,ZRE151,ZWE150..G,SOL200912

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main88374-30010iADE15#,ZRE152..LHD..SOL;NDE150,NRE150,ZRE151,ZWE150..G,SOL200912

AIR CONDITIONER-AUTO(SINGLE)

main88374-30010iADE150,ZRE151..TERRA201010

88374CVALVE, SERVICE, NO.2

main88374-30010iNDE150..E;NDE150..LHD..5D..6F..TERRA..DCR200912

AIR CONDITIONER-AUTO(SINGLE)

main88374-30010iZZE150..SOL200702-200903

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88374-30010iADE15#..SOL200702-200903

AIR CONDITIONER-WITHOUT

main88374-30010iADE150..LHD..5D..SOL..DCRL;ADE157,NDE150,ZRE15#..5D..MTM..SOL200902-201001

AIR CONDITIONER-MANUAL

main88374-30010iADE15#,ZRE152..LHD..SOL;NDE150,ZRE151,ZWE150..G,SOL200912

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main88374-30010iADE150,ZRE151..TERRA201010

main88374-33070iNRE150..SOL200811-201001

AIR CONDITIONER-MANUAL

main88374-33070iNRE150..SOL200912

AIR CONDITIONER-AUTO(SINGLE)

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iADE150..TERRA200702-200903

AIR CONDITIONER-WITHOUT

main88375-30290iADE157200702-200903

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88375-30290iADE150..LHD..5D..SOL..DCRL;ADE157,NDE150,NRE150,ZRE15#..5D..(6F,6FS)..SOL200811-201001

AIR CONDITIONER-MANUAL

main88375-30290iADE15#,ZRE152..LHD..SOL;NDE150,NRE150,ZRE151,ZWE150..G,SOL200912

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main88375-30290iADE15#,ZRE152..LHD..SOL;NDE150,NRE150,ZRE151,ZWE150..G,SOL200912

AIR CONDITIONER-AUTO(SINGLE)

main88375-30290iADE150,ZRE151..TERRA201010

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iNDE150..E;NDE150,NRE150..LHD..5D..6F..TERRA..(DCR,HTWC)200912

AIR CONDITIONER-AUTO(SINGLE)

main88375-30280iZZE150..SOL200702-200903

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88375-30280iADE15#..SOL200702-200903

AIR CONDITIONER-WITHOUT

main88375-30280iADE150..LHD..5D..SOL..DCRL;ADE157,NDE150,NRE150,ZRE15#..5D..(6F,6FS)..SOL200811-201001

AIR CONDITIONER-MANUAL

main88375-30280iADE15#,ZRE152..LHD..SOL;NDE150,NRE150,ZRE151,ZWE150..G,SOL200912

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main88375-30280iADE150,ZRE151..TERRA201010

88450CONDENSER ASSY, W/RECEIVER

main88450-02280iNDE150,ZRE151..SOL¥31,100200702-200902

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88450-02280iNDE150,NRE150,ZRE15#..(4FC,6F,6FS)..SOL¥31,100200811-201001

AIR CONDITIONER-MANUAL

main88450-02280iZRE152..LHD..SOL;NDE150,NRE150,ZRE151..SOL¥31,100200912-201210

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main88450-02280iZRE151..TERRA¥31,100201010-201210

main88450-02410iADE15#..SOL200903-201001

AIR CONDITIONER-MANUAL

main88450-02410iADE15#..SOL200804-201001

AIR CONDITIONER-WITHOUT

main88450-02410iADE15#..LHD..SOL200912-201210

main88450-02410iADE15#..SOL200804-200903

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88450-12290iADE15#..SOL200702-200804

AIR CONDITIONER-WITHOUT

main88450-12290iADE150..TERRA200702-200804

AIR CONDITIONER-MANUAL(MAKER OPTION)

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010iADE15#,ZRE152..LHD..SOL;NDE150,NRE150,ZRE151..SOL¥220200912-201210

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main16716-28010iZZE150..SOL¥220200702-200903

AIR CONDITIONER-MANUAL(MAKER OPTION)

main16716-28010iADE15#..SOL¥220200702-200903

AIR CONDITIONER-WITHOUT

main16716-28010iNDE150..(6F,6FS)..SOL;ADE15#,NRE150,ZRE15#..(4FC,6F,6FS)..SOL..(DCRL,HTWC,HTWVM)¥220200811-201001

AIR CONDITIONER-MANUAL

main16716-28010iADE150,ZRE151..TERRA¥220201006-201211

88474DRYER, COOLER

main88474-12030iADE157200702-200804

AIR CONDITIONER-WITHOUT

main88474-12030iADE150..TERRA200702-200804

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88474-17010iADE15#..SOL200804-200903

AIR CONDITIONER-WITHOUT

main88474-17010iADE150..TERRA200702-200903

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88474-17010iNDE150..(6F,6FS)..SOL;ADE15#,NRE150,ZRE15#..(4FC,6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200811-201001

AIR CONDITIONER-MANUAL

main88474-17010iADE15#,ZRE152..LHD..SOL;NDE150,NRE150,ZRE151..SOL200912-201210

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main88474-17010iADE150,ZRE151..TERRA201010-201210

main88474-47030iZWE150201006-201210

88703HOSE SUB-ASSY, DISCHARGE

main88703-02350iZRE15#..3D..SOL;ZRE151..SOL..HTWC200902-201001

AIR CONDITIONER-MANUAL

main88703-02350iZRE151..SOL200702-200902

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88703-02350iZRE151..SOL;ZRE152..LHD..SOL200912

main88703-02360iZZE150..TERRA200702-200811

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88703-02370iNDE150..TERRA200702-200902

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88703-02380iADE15#..SOL200702-200801

AIR CONDITIONER-MANUAL(MAKER OPTION)

sub88703-02610

main88703-02580iNRE150..5D..SOL200811-201001

AIR CONDITIONER-MANUAL

main88703-02580iNRE150..SOL200912

AIR CONDITIONER-AUTO(SINGLE)

main88703-02590iADE157..5D200903-201001

AIR CONDITIONER-WITHOUT

main88703-02590iADE157..5D;ADE150..LHD..5D..SOL200903-201001

AIR CONDITIONER-MANUAL

main88703-02590iADE15#..LHD..SOL200912

main88703-02600iNDE150..3D..SOL200902-201001

AIR CONDITIONER-MANUAL

main88703-02600iNDE150..E;NDE150..LHD..5D..6F..TERRA..DCR200912

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main88703-02600iNDE150..E;NDE150..LHD..5D..6F..TERRA..DCR200912

AIR CONDITIONER-AUTO(SINGLE)

main88703-02610iADE150..TERRA200802-200903

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88703-02710iZWE150201006

88704HOSE SUB-ASSY, SUCTION

main88704-02580iZRE151..TERRA200702-200902

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88704-02580iZRE15#..5D..SOL..HTWVM200902-201001

AIR CONDITIONER-MANUAL

main88704-02580iZRE151..SOL;ZRE152..LHD..SOL200912

main88704-02590iZZE150..SOL200702-200811

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88704-02610iNDE150..TERRA200702-200902

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88704-02620iADE150..TERRA200702-200903

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88704-02830iNRE150..3D..SOL200811-201001

AIR CONDITIONER-MANUAL

main88704-02830iNRE150..LHD..5D..TERRA200912

AIR CONDITIONER-AUTO(SINGLE)

main88704-02850iNDE150..5D..6F..(E,TERRA)200902-201001

AIR CONDITIONER-MANUAL

main88704-02850iNDE150..E;NDE150..LHD..5D..6F..TERRA..DCR200912

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main88704-02850iNDE150..E;NDE150..LHD..5D..6F..TERRA..DCR200912

AIR CONDITIONER-AUTO(SINGLE)

main88704-0Z040iADE150..5D..TERRA200903-201001

AIR CONDITIONER-WITHOUT

main88704-0Z040iADE157..5D;ADE150..LHD..5D..SOL200903-201001

AIR CONDITIONER-MANUAL

main88704-0Z040iADE150..TERRA200912

main88704-0Z070iZWE150201006

88707PIPE SUB-ASSY, SUCTION

main88707-02030iZZE150..TERRA200702-200903

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88707-02150iNRE150..TERRA200811-201001

AIR CONDITIONER-MANUAL

main88707-02150iNRE150..TERRA200912

AIR CONDITIONER-AUTO(SINGLE)

main88707-02180iZWE150201006

main88707-05070iNDE150..5D..6F..(E,TERRA);ADE150,ZRE15#..5D..TERRA..(DCRL,HTWVM)¥13,000200902-201001

AIR CONDITIONER-MANUAL

main88707-05070iNDE150,ZRE151..SOL;ADE15#,ZRE152..LHD..SOL¥13,000200912

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main88707-05070iNDE150,ZRE151..SOL;ADE15#,ZRE152..LHD..SOL¥13,000200912

AIR CONDITIONER-AUTO(SINGLE)

main88707-05070iADE150,ZRE151..TERRA¥13,000201010

88710TUBE ASSY, AIR CONDITIONER

main88710-02780iZRE15#..5D..SOL..HTWVM200902-201001

AIR CONDITIONER-MANUAL

main88710-02780iZRE151..TERRA200702-200902

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88710-02780iZRE151..TERRA200912

main88710-02790iNDE150..SOL200902-201001

AIR CONDITIONER-MANUAL

main88710-02790iNDE150..SOL200702-200902

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88710-02790iNDE150..SOL200912

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main88710-02790iNDE150..SOL200912

AIR CONDITIONER-AUTO(SINGLE)

main88710-02800iADE150..TERRA200912

main88710-02800iADE157..3D200903-201001

AIR CONDITIONER-MANUAL

main88710-02800iADE157..3D200903-201001

AIR CONDITIONER-WITHOUT

main88710-02800iADE15#..SOL200702-200903

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88710-0Z170iNRE150..TERRA200912

AIR CONDITIONER-AUTO(SINGLE)

main88710-0Z170iNRE150..LHD..5D..TERRA200811-201001

AIR CONDITIONER-MANUAL

main88710-0Z270iZWE150201006

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iZZE150..SOL¥0200702-200903

AIR CONDITIONER-MANUAL(MAKER OPTION)

main88719-33020iADE150..LHD..5D..SOL..DCRL;ADE157,NDE150,NRE150,ZRE15#..5D..(6F,6FS)..SOL¥0200811-201001

AIR CONDITIONER-MANUAL

main88719-33020iNDE150..E¥0200912

AIR CONDITIONER-AUTO(SINGLE)

main88719-33020iNDE150..E¥0200912

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main88719-33020iADE150,ZRE151..TERRA¥0201010

886880Z090BRACKET, COOLER DIAPHRAGM

main88688-0Z090¥630

886880Z100BRACKET, COOLER DIAPHRAGM

main88688-0Z100¥1,050

8871802890PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02890¥240

90105W0033

main90105-W0033¥60

90105W0152

main90105-W0152¥60

90119W0019

main90119-W0019¥100

90119W0030

main90119-W0030¥60

90178W0019

main90178-W0019¥110

22 parts on this diagram · 7 diagrams in section
