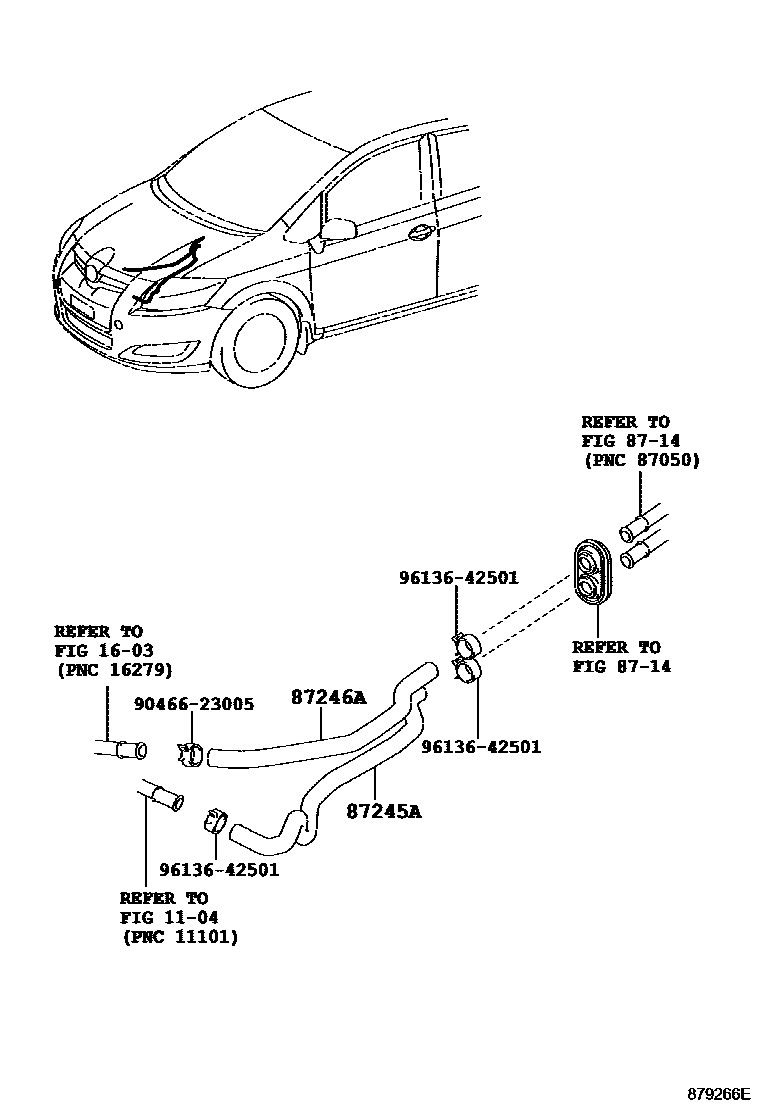

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1W(STOVE HEATER) 0006 1W(STOVE HEATER) 0007 1 0008 1W(EXHAUST HEATER) 0009 1 0010 1W(EXHAUST HEATER)

1104

1603

8714

87245AHOSE, HEATER WATER, INLET A

main87245-02640iNRE150..LHD200811-201001

COLD AREA SPEC

main87245-02A10iZRE15#200702-201207

sub87245-02P00

main87245-02A30iZZE150200702-200811

main87245-02A60iNDE150..LHD200702-200902

COLD AREA SPEC

main87245-02A80iADE15#..LHD200702-200903

COLD AREA SPEC

sub87245-05711¥2,290

main87245-02F10iNDE150..E,SOL;NDE150..6F..TERRA200912

COLD AREA SPEC

main87245-02F10iNDE150200902-201001

main87245-02J40iZWE150..LHD201006

WITH(EXHAUST HEATER & PTC HEATER)

main87245-02P00iZRE15#201208

main87245-05711iADE15#..LHD¥2,290200912

COLD AREA SPEC

main87245-05711iADE15#¥2,290200903-201001

87246AHOSE, HEATER WATER, OUTLET A

main87245-02870iNRE150200811-201001

main87245-02870iNRE150..LHD..5D200811-200912

RUSSIA SPEC, WITHOUT(EURO 4 REGULATION)&COLD AREA SPEC

main87245-02870iNRE150..LHD..5D200811-200912

RUSSIA SPEC, WITH(EURO 4 REGULATION)&COLD AREA SPEC

main87245-02A20iZRE151200702-201001

main87245-02A40iZZE150200702-200811

main87245-02A70iNDE150200702-200902

COLD AREA SPEC

main87245-02A90iADE15#..LHD200702-200903

COLD AREA SPEC

sub87245-02A91

main87245-02A91iADE15#..LHD200903-201110

COLD AREA SPEC

main87245-02A92iADE15#201110

COLD AREA SPEC

main87245-02F90iNDE150..3D;NDE150..5D..6FS..TERRA200902-201001

COLD AREA SPEC

main87245-02J00iZWE150201006

WITH(EXHAUST HEATER & PTC HEATER)

9046623005

main90466-23005¥220

9613642501

main96136-42501¥200

7 parts on this diagram · 10 diagrams in section
