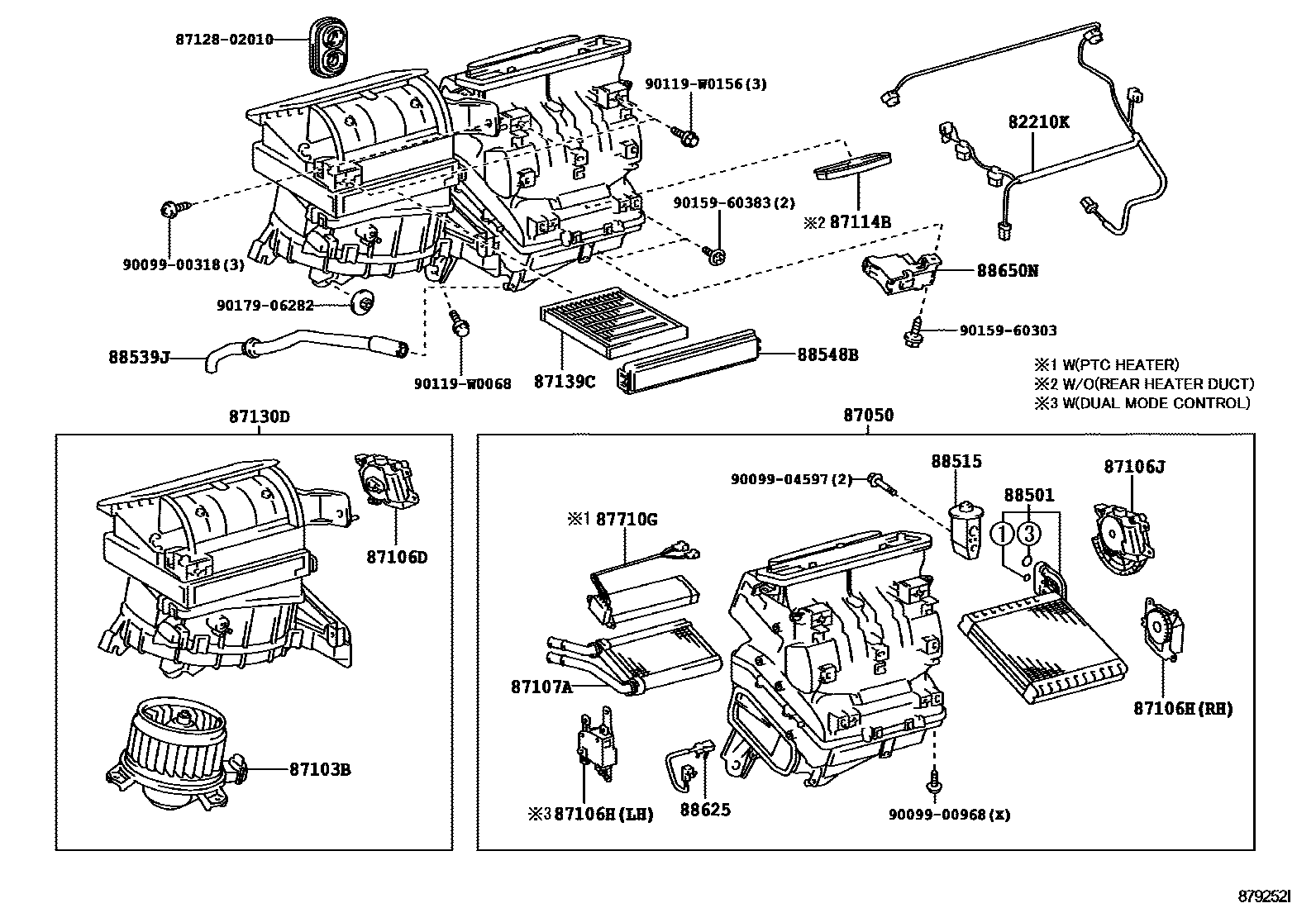

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1AUTO AIR CONDITIONER 0002 1MANUAL AIR CONDITIONER 0003 1MANUAL W/O(AIR CONDITIONER) 0004 1AUTO AIR CONDITIONER 0005 1MANUAL AIR CONDITIONER 0006 1MANUAL W/O(AIR CONDITIONER) 0007 1O-RING

82210KHARNESS ASSY, AIR CONDITIONER

main82212-02120iZWE150..LHD201006-201211

main82212-02130iZWE150..RHD201006-201211

main82212-02010iZZE150..LHD..SOL200702-200811

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main82212-02020iNDE150,NRE150,ZRE151..RHD..(E,SOL)200912-201210

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main82212-02050iZRE151..LHD..5D..6F;ZRE151..LHD..3D..6F..SOL;ZRE151..LHD..(4FC,6FS)..SOL;ADE15#,NDE150,NRE150,ZRE152..LHD..(E,SOL);NDE150,NRE150..LHD..5D..6F..TERRA..(DCR,HTWC)200912-201305

AIR CONDITIONER-AUTO(SINGLE)

main82212-02060iNDE150,NRE150,ZRE151..RHD..(E,SOL)200912-201210

AIR CONDITIONER-AUTO(SINGLE)

87050RADIATOR ASSY, AIR CONDITIONER

main87050-02J00iZWE150..RHD201006-201210

main87050-02800supersedes 87050-02790iNDE150..LHD..E200905-200912

LUXURY&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main87050-02830supersedes 87050-02410iZRE151,ZZE150..RHD..SOL200702-200902

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main87050-02840supersedes 87050-02420iADE15#..RHD200903-201001

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main87050-02890supersedes 87050-02870iNRE150,ZRE15#..LHD..SOL200912-201210

LUXURY&COLD AREA SPEC&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main87050-02A00supersedes 87050-02880iADE15#..LHD..SOL200912-201210

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main87050-02E60iNDE150..RHD..E200905-200912

LUXURY&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main87050-02F70iNDE150..LHD..E200912-201210

AIR CONDITIONER-AUTO(SINGLE)

main87050-02G10supersedes 87050-02E50iNDE150..RHD..SOL200912-201210

AIR CONDITIONER-AUTO(SINGLE)

main87050-02G90supersedes 87050-02G80iZWE150..LHD201006-201210

WITH(EXHAUST HEATER & PTC HEATER)

main87050-05731supersedes 87050-02410iNRE150,ZRE151..RHD..SOL200912-201210

AIR CONDITIONER-AUTO(SINGLE)

main87050-05761iADE15#,NDE150..LHD..SOL;NDE150..LHD..5D..6F..TERRA..DCR200912-201210

MID&COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE)

main87050-05771supersedes 87050-02880iADE15#..LHD..SOL200912-201210

AIR CONDITIONER-AUTO(SINGLE)

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-02120iADE157,NDE150,NRE150,ZRE15#..RHD..5D..(6F,6FS)200811-200912

main87103-02140iNDE150..LHD..6F..TERRA;ADE15#,NRE150,ZRE151..LHD;NDE150,ZRE152..LHD..(E,SOL)200912

main87103-05050iZWE150..RHD201006

main87103-05060iZWE150..LHD201006

main87103-02130supersedes 87103-02120iNDE150..RHD..E200912

LUXURY&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main87103-02150iNDE150..LHD..E200905-200912

LCA&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

87106DSERVO SUB-ASSY, DAMPER, NO.1

main87106-02150iNDE150,NRE150,ZRE151..RHD200912-201207

main87106-02160supersedes 87106-02150iZWE150..RHD201006-201211

main87106-02170iZZE150..LHD200702-200811

AIR CONDITIONER-MANUAL(DEALER OPTION)

main87106-02180iZWE150..LHD201006-201211

main87106-02260iADE15#,NDE150,NRE150,ZRE15#..LHD201208-201305

main87106-02300iNDE150,NRE150,ZRE151..RHD201208-201210

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-12170iZWE150201006

main87106-02120iADE150..LHD..5D..SOL..DCRL;ADE157,NDE150,NRE150,ZRE15#..5D..(6F,6FS)..SOL200811-200912

COLD AREA SPEC&AIR CONDITIONER-AUTO(DUAL MODE CONTROL),RH

main87106-02130iNDE150..E200912-201110

AIR CONDITIONER-AUTO(DUAL MODE CONTROL),LH

main87106-02270iADE15#,NDE150,NRE150,ZRE15#..SOL201111

WITH(EXHAUST HEATER & PTC HEATER)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL),RH

main87106-02280iADE15#,NDE150,NRE150,ZRE15#..SOL201111

AIR CONDITIONER-AUTO(DUAL MODE CONTROL),LH

main87106-05040iZRE151..LHD..5D..6F;ZRE151..LHD..(4FC,6FS)..SOL;ADE15#,NDE150,ZRE152..LHD..SOL;NDE150..LHD..5D..6F..TERRA..DCR;NRE150,ZRE151..LHD..3D..6F..SOL200912

AIR CONDITIONER-AUTO(SINGLE),RH

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-02140iZWE150201006

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-02150iNDE150..6F,6FS;ADE15#,NRE150,ZRE15#..(4FC,6F,6FS)..(DCRL,HTWC,HTWVM)200811-201001

87114BCOVER, HEATER

main87114-02010iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912

COLD AREA SPEC

87130DBLOWER ASSY

main87130-02250iZRE151,ZZE150..RHD200702-200807

AIR CONDITIONER-MANUAL(DEALER OPTION)

main87130-02251iNRE150,ZRE15#..RHD..3D..(6F,6FS)200811-201001

main87130-02260iNDE150..RHD..TERRA200702-200807

AIR CONDITIONER-MANUAL(DEALER OPTION)

main87130-02261iNDE150..RHD..5D..(E,TERRA)200909-200912

main87130-02290supersedes 87130-02300iZRE151,ZZE150..LHD..TERRA200702-200807

COLD AREA SPEC&AIR CONDITIONER-MANUAL(MAKER OPTION)

main87130-02291supersedes 87130-02301iZZE150..LHD200808-200811

AIR CONDITIONER-MANUAL(DEALER OPTION)

main87130-02760iZWE150..RHD201006

main87130-02270iZRE151,ZZE150..RHD..SOL200702-200807

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main87130-02271supersedes 87130-02251iNRE150,ZRE15#..RHD..5D..(6F,6FS)..SOL200811-200912

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main87130-02280iADE15#,NDE150..RHD..SOL200702-200807

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main87130-02281supersedes 87130-02261iNDE150..RHD..E200905-200912

MID&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main87130-02310iZRE151,ZZE150..LHD..SOL200702-200807

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main87130-02311iNRE150,ZRE15#..LHD..SOL200912

COLD AREA SPEC&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main87130-02320iZRE151..LHD..SOL200702-200807

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main87130-02321iNDE150..LHD..E200905-200912

MID&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main87130-02750supersedes 87130-02740iZWE150..LHD201006

WITH(EXHAUST HEATER & PTC HEATER)

main87130-05171iNRE150,ZRE151..RHD..SOL200912

AIR CONDITIONER-AUTO(SINGLE)

main87130-05181iNDE150..RHD..SOL200912

AIR CONDITIONER-AUTO(SINGLE)

main87130-05191iADE15#,NDE150..LHD..SOL;NDE150..LHD..5D..6F..TERRA..DCR200912

MID&COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE)

main87130-05201iADE15#,NDE150..LHD..SOL;NDE150..LHD..5D..6F..TERRA..DCR200912

AIR CONDITIONER-AUTO(SINGLE)

87139CFILTER, CLEAN AIR

main87139-02020iNDE150,ZRE151200702-200902

87710GQUICK HEATER ASSY

main87710-02010iNDE150..RHD..TERRA200702-200902

AIR CONDITIONER-MANUAL(DEALER OPTION)

main87710-02020iZRE152..LHD..SOL;ZRE151..LHD..5D..6F;ZRE151..LHD..(4FC,6FS)..SOL;NRE150,ZRE151..LHD..3D..6F..SOL200912

COLD AREA SPEC&AIR CONDITIONER-MANUAL

main87710-02070iNDE150..LHD..5D..(E,SOL);NDE150..LHD..5D..6F..TERRA200902-200912

main87710-02100iNDE150..RHD200912

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-02200iADE150,NDE150,ZRE151,ZZE150..TERRA200702-200809

COLD AREA SPEC&AIR CONDITIONER-MANUAL(MAKER OPTION)

main88501-02201supersedes 88501-02201iADE15#..SOL200809-200903

COLD AREA SPEC&AIR CONDITIONER-MANUAL(MAKER OPTION)

main88501-02202iNDE150..LHD..5D..TERRA..DCR201108

WITH(EXHAUST HEATER & PTC HEATER)&AIR CONDITIONER-MANUAL

main88501-47050iZWE150201006-201007

main88501-47051iZWE150201007

88515VALVE, COOLER EXPANSION

main88515-02150supersedes 88515-02150iNDE150..LHD..(5F,5FS)..TERRA;ADE150,ZRE151..TERRA..(DCR,DCRL,HTWC)200702-200903

COLD AREA SPEC&AIR CONDITIONER-MANUAL(MAKER OPTION)

main88515-02520iNDE150..LHD..5D..TERRA..DCR201111

WITH(EXHAUST HEATER & PTC HEATER)&AIR CONDITIONER-MANUAL

main88515-47040iZWE150201006

88539JHOSE, DRAIN COOLER

main88539-02100iZZE150..RHD200702-200811

main88539-02110iNDE150..LHD..6F..TERRA;NDE150,ZRE152..LHD..(E,SOL);ADE15#,NRE150,ZRE151,ZWE150..LHD200912-201111

main88539-02370iNDE150,NRE150,ZRE151,ZWE150..RHD201112

main88539-02380iADE15#,NDE150,NRE150,ZRE15#,ZWE150..LHD201112

88548BCASE, AIR FILTER

main88548-02060iADE150..RHD..DCRL;ADE157,NDE150,NRE150,ZRE15#..RHD..3D..(6F,6FS)200811-201001

main88548-02070iNDE150..LHD..5D..6F..TERRA;NDE150..LHD..5D..(6F,6FS)..(E,SOL);ADE15#,NRE150,ZRE15#..LHD..5D..(6F,6FS)..(DCRL,HTWC,HTWVM)200811-200912

88625THERMISTOR, COOLER, NO.1

main88625-02110supersedes 88625-02110iADE15#..SOL200702-200903

COLD AREA SPEC&AIR CONDITIONER-MANUAL(MAKER OPTION)

main88625-71010iZWE150201006

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-02410iADE157..LHD200702-200903

COLD AREA SPEC&AIR CONDITIONER-WITHOUT

main88650-02630iADE15#..LHD;NDE150..LHD..(E,SOL);NDE150..LHD..6F..TERRA200912

AIR CONDITIONER-MANUAL

main88650-02640supersedes 88650-02630iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;ADE157,NDE150..5D..(E,SOL)200902-200912

COLD AREA SPEC

main88650-02820iZWE150201006

main88650-02420supersedes 88650-02400iADE15#..LHD..SOL;NDE150..LHD..(5F,5FS)..SOL200702-200903

COLD AREA SPEC&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main88650-02430iADE15#..SOL;NDE150..(5F,5FS)..SOL200702-200903

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main88650-02650iNDE150..LHD..E200905-200912

LCA&COLD AREA SPEC&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main88650-02660iNDE150..E200912

LUXURY&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main88650-02730iADE15#,NDE150..LHD..SOL;NDE150..LHD..5D..6F..TERRA..DCR200912

COLD AREA SPEC&AIR CONDITIONER-AUTO(SINGLE)

main88650-02740iNDE150..E200912

AIR CONDITIONER-AUTO(SINGLE)

main88650-02810iZWE150..LHD201006

WITH(EXHAUST HEATER & PTC HEATER)

8712802010GROMMET, HEATER

main87128-02010

9009900318

main90099-00318

9009900968

main90099-00968

9009904597

main90099-04597

90119W0068

main90119-W0068

90119W0156

main90119-W0156

9015960303

main90159-60303

9015960383

main90159-60383

9017906282

main90179-06282

26 parts on this diagram · 7 diagrams in section
