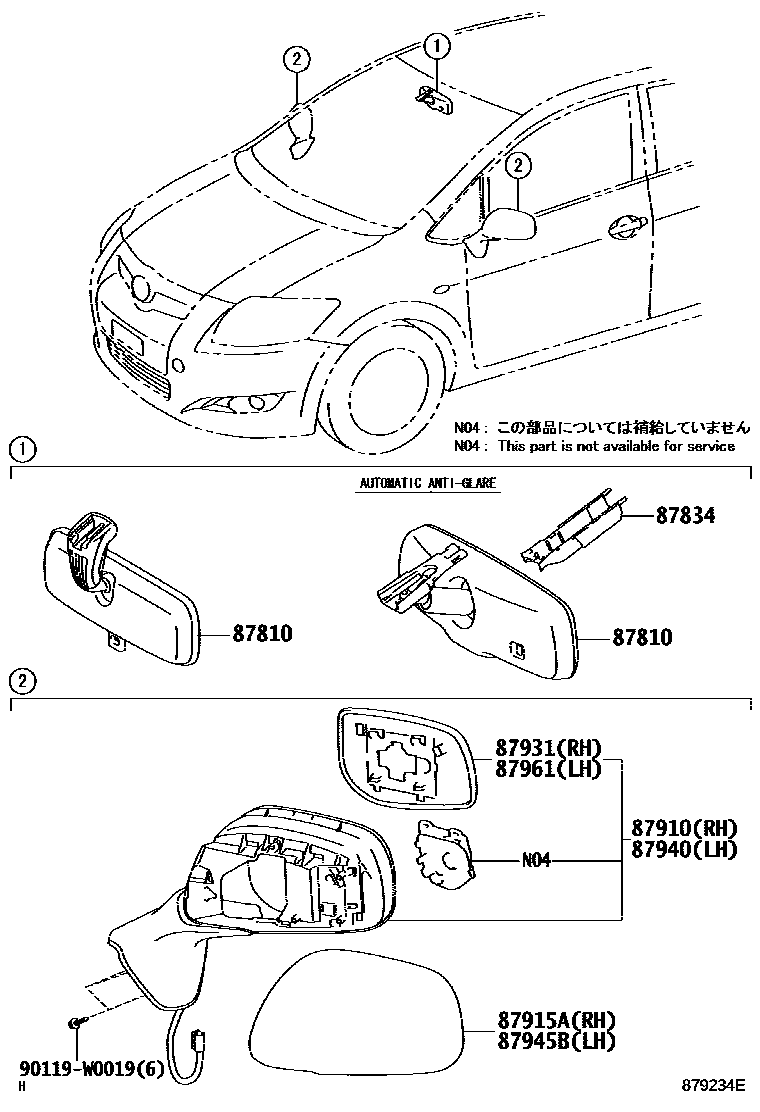

MIRROR
87810MIRROR ASSY, INNER REAR VIEW
INTERMITTENT WIPER-AUTO(RAIN SENSOR)&BACK MONITOR-WITH(IN INNER MIRROR)
INTERMITTENT WIPER-AUTO(RAIN SENSOR)
INTERMITTENT WIPER-AUTO(RAIN SENSOR)
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
INTERMITTENT WIPER-AUTO(RAIN SENSOR)
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTIABLE(COLORED)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTIABLE(COLORED)
main87901-02180supersedes 87901-02130iNDE150..LHD..6F..(E,TERRA);ADE150,NRE150,ZRE151..LHD..TERRA200912
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER
main87901-02200iNDE150..LHD..6F..TERRA;NDE150,ZRE152..LHD..(E,SOL);ADE15#,NRE150,ZRE151,ZWE150..LHD200912
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
NO PAINT REQ.,LIGHT&OUTSIDE REAR VIEW MIRROR-MANUAL REMOTE CONTROL
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-MANUAL REMOTE CONTROL
87915ACOVER, OUTER MIRROR, RH
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
LIGHT&OUTSIDE REAR VIEW MIRROR-MANUAL REMOTE CONTROL
87931OUTER MIRROR, RH
main87908-02720supersedes 87908-02710iZRE151..4FC;NDE150..5D..6FS..TERRA;NDE150..LHD..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..LHD..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200811-201001
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
OUTSIDE REAR VIEW MIRROR-MANUAL REMOTE CONTROL
LIGHT&OUTSIDE REAR VIEW MIRROR-MANUAL REMOTE CONTROL
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTIABLE(COLORED)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTIABLE(COLORED)
main87906-02180supersedes 87906-02170iNDE150..LHD..6F..(E,TERRA);ADE150,NRE150,ZRE151..LHD..TERRA200912
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER
main87906-02200iNDE150..LHD..6F..TERRA;NDE150,ZRE152..LHD..(E,SOL);ADE15#,NRE150,ZRE151,ZWE150..LHD200912
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(BLACK),W/HEATER
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-MANUAL REMOTE CONTROL
NO PAINT REQ.,LIGHT&OUTSIDE REAR VIEW MIRROR-MANUAL REMOTE CONTROL
87945BCOVER, OUTER MIRROR, LH
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
LIGHT&OUTSIDE REAR VIEW MIRROR-MANUAL REMOTE CONTROL
87961MIRROR OUTER, LH
main87909-02700supersedes 87909-02690iZRE151..4FC;NDE150..5D..6FS..TERRA;NDE150..LHD..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..LHD..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200811-201001
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER
LIGHT&OUTSIDE REAR VIEW MIRROR-MANUAL REMOTE CONTROL
OUTSIDE REAR VIEW MIRROR-MANUAL REMOTE CONTROL
90119W0019
main90119-W0019
9 parts on this diagram · 3 diagrams in section
