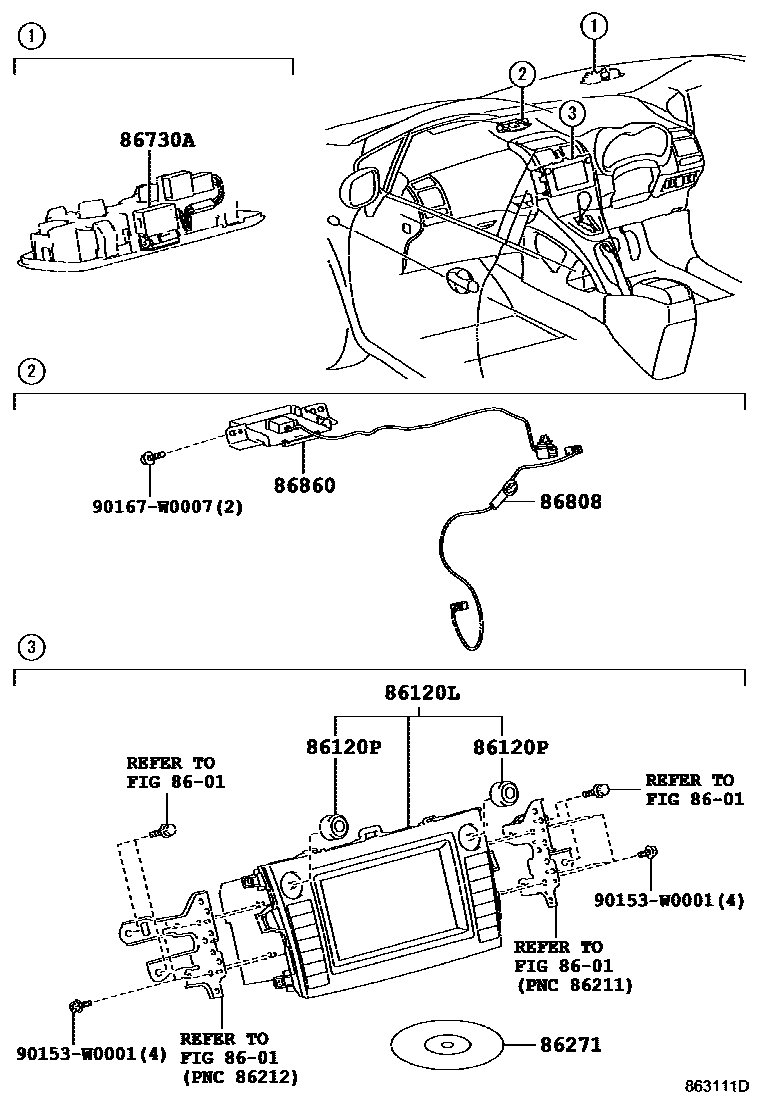

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1DISPLAY AUDIO

8601

86120LRECEIVER ASSY, NAVIGATION

86120PKNOB, NAVIGATION RECEIVER SWITCH

86271DISC, DISC PLAYER

main86271-53031

main86271-24140

86730AMICROPHONE ASSY, TELEPHONE

main86730-12010iADE15#,NDE150,NRE150,ZRE15#,ZWE150..LHD..(G,SOL)200912-201210

CD 6SPEAKER(MULTI)

main86730-12010iADE15#,NDE150,NRE150,ZRE15#,ZWE150..LHD..(G,SOL)200912-201210

RADIOLESS 6SPEAKER

main86730-12010iADE15#,NDE150,NRE150,ZRE15#,ZWE150..LHD..(G,SOL)200912-201210

CD BLUETOOTH 6SPEAKER(MULTI)

main86730-12020iNDE150,NRE150,ZRE151,ZWE150..RHD..(G,SOL)200912-201210

CD 6SPEAKER(MULTI)

main86730-12020iNDE150,NRE150,ZRE151,ZWE150..RHD..(G,SOL)200912-201210

RADIOLESS 6SPEAKER

main86730-12020iNDE150,NRE150,ZRE151,ZWE150..RHD..(G,SOL)200912-201210

CD BLUETOOTH 6SPEAKER(MULTI)

86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1

main86808-02020

86860ANTENNA ASSY, NAVIGATION

main86860-12070

90153W0001

main90153-W0001

90167W0007

main90167-W0007

9 parts on this diagram · 2 diagrams in section
