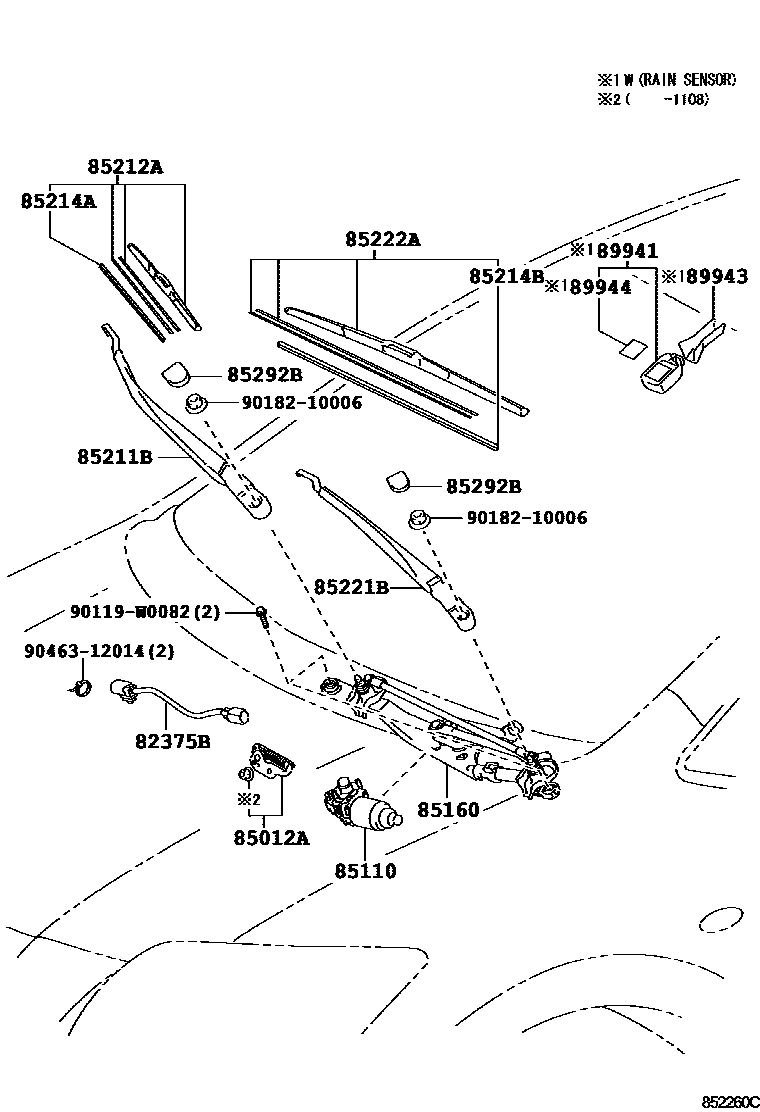

WINDSHIELD WIPER

0001 1 0002 1

82375BWIRE, WIPER MOTOR

main82375-02010iZZE150200702-200811

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-02010iNDE150,NRE150,ZRE151,ZWE150..RHD201207

main85012-02020iADE15#,NDE150,NRE150,ZRE15#,ZWE150..LHD201207

main85012-50010iZRE151..4FC;NDE150..5D..6FS..TERRA;NDE150..LHD..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..LHD..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200811-201001

main85012-58030iNDE150,NRE150,ZRE151,ZWE150..RHD200912-201206

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-02180iZZE150..RHD200702-200811

main85110-02190iNDE150,ZRE151..LHD200702-200902

85160LINK ASSY, WINDSHIELD WIPER

main85150-02160iZZE150..RHD200702-200811

main85150-02170iZRE151..4FC;NDE150..5D..6FS..TERRA;NDE150..LHD..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..LHD..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200811-201001

85211BARM, FRONT WIPER, RH

main85211-02170iADE15#,NDE150,ZRE151,ZZE150..RHD200702-200802

main85211-02171iZZE150..RHD200803-200811

main85211-02180iADE15#,NDE150,ZRE151,ZZE150..LHD200702-200802

main85211-02181iNDE150..LHD..5D..6F..TERRA;NDE150..LHD..5D..(6F,6FS)..(E,SOL);ADE15#,NRE150,ZRE15#..LHD..5D..(6F,6FS)..(DCRL,HTWC,HTWVM)200811-200912

85212ABLADE, FR WIPER, RH

main85212-02190iZRE151..4FC;NDE150..5D..6FS..TERRA;NDE150..LHD..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..LHD..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200811-201001

main85212-02200iADE15#,NDE150,ZRE151,ZZE150..RHD200702-200810

main85212-02201iADE15#..RHD200811-200903

85214ARUBBER, WIPER, RH

main85214-02220iZZE150..RHD200702-200811

main85214-02230iZRE151..4FC;NDE150..5D..6FS..TERRA;NDE150..LHD..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..LHD..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200811-201001

85214BRUBBER, WIPER, LH

main85214-02220iZZE150..LHD200702-200811

main85214-02230iNDE150,NRE150,ZRE151,ZWE150..RHD200912

85221BARM, FRONT WIPER, LH

main85221-02180iADE15#,NDE150,ZRE151,ZZE150..RHD200702-200802

main85221-02181iZZE150..RHD200803-200811

main85221-02190iADE15#,NDE150,ZRE151,ZZE150..LHD200702-200802

main85221-02191iNDE150..LHD..6F..TERRA;NDE150,ZRE152..LHD..(E,SOL);ADE15#,NRE150,ZRE151,ZWE150..LHD200912

85222ABLADE, FR WIPER, LH

main85222-02190iNDE150,NRE150,ZRE151,ZWE150..RHD200912

main85222-02210iADE15#,NDE150,ZRE151,ZZE150..LHD200702-200810

main85222-02211iZRE151..4FC;NDE150..5D..6FS..TERRA;NDE150..LHD..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..LHD..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200811-201001

85292BCAP, FRONT WIPER ARM HEAD

main85292-0F010×2iZZE150200702-200811

89941SENSOR, RAIN

main89941-02010iZWE150..SOL201006

HV LOW GRADE(WITHOUT BACK GUIDE MONITOR)

89943COVER, RAIN SENSOR

main89943-02010iZWE150..SOL201006

HV LOW GRADE(WITHOUT BACK GUIDE MONITOR)

89944TAPE, RAIN SENSOR

main89944-02010iZWE150..SOL201006

HV LOW GRADE(WITHOUT BACK GUIDE MONITOR)

90119W0082

main90119-W0082

9018210006

main90182-10006

9046312014

main90463-12014

17 parts on this diagram · 2 diagrams in section
