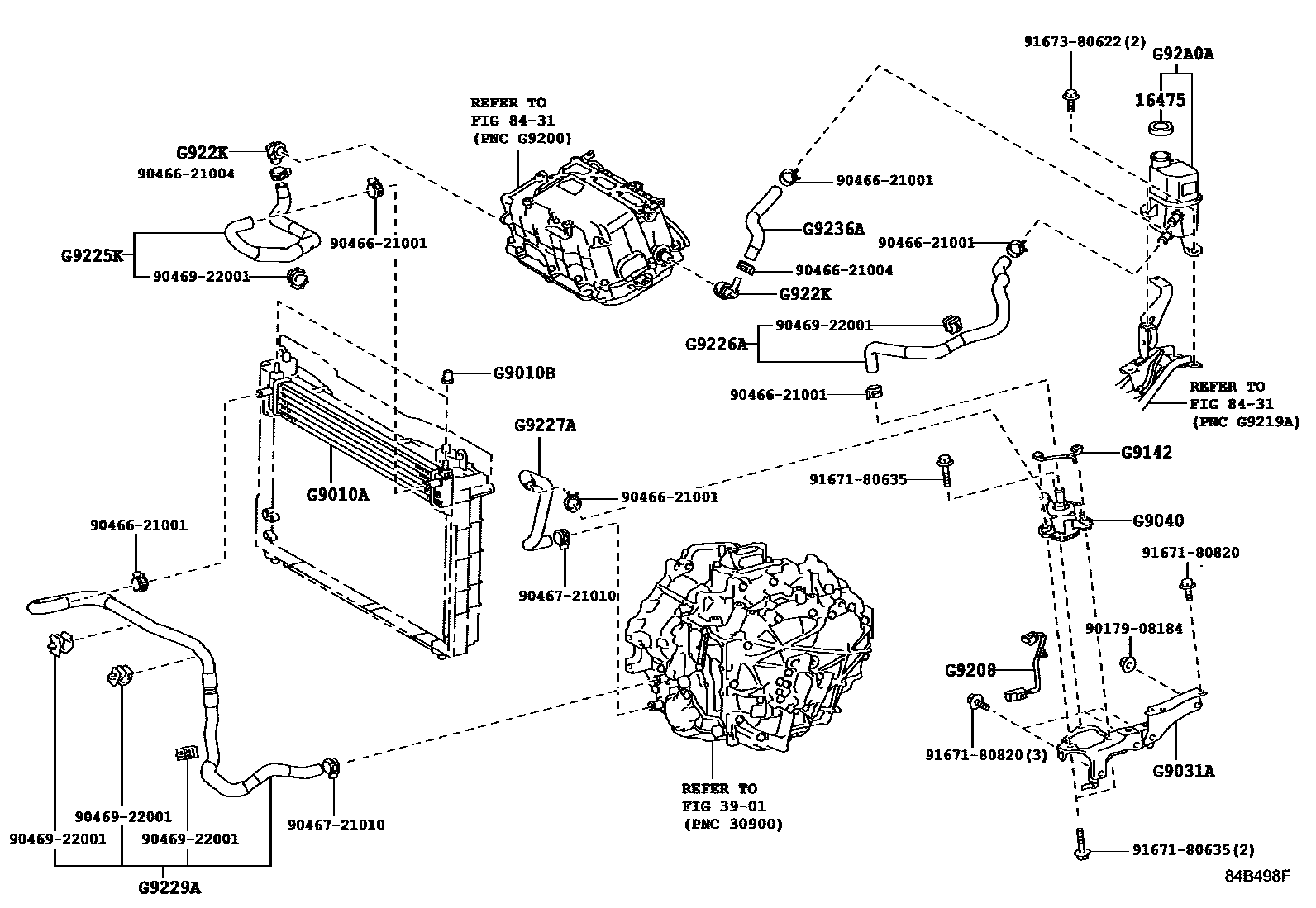

INVERTER COOLING

16475CAP, RESERVE TANK

main16475-37010i2ZRFXE..ZWE150201111

sub16475-28140

main16475-51010i2ZRFXE..ZWE150201006-201110

sub16475-28140

3901

8431

G9010ARADIATOR ASSY

mainG901047031iZWE150201006

subG9010-47032

G9010BCUSHION, INVERTER RADIATOR

main16716-37010×2iZWE150201006

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG903147010iZWE150201006

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904047090iZWE150201108-201211

mainG904048020iZWE150201006-201107

G9142BRACKET, HYBRID WATER PUMP, NO.2

mainG914247010iZWE150201006

G9208WIRE SUB-ASSY, INVERTER

mainG920847080iZWE150201006

G9225KHOSE, INVERTER COOLING, NO.1

mainG922547021iZWE150201006

G9226AHOSE, INVERTER COOLING, NO.2

mainG922612010iZWE150201006

G9227AHOSE, INVERTER COOLING, NO.3

mainG922747020iZWE150201006

G9229AHOSE, INVERTER COOLING, NO.5

mainG922947020iZWE150201006

G922KCONNECTOR, HYBRID WATER HOSE

mainG922K47011×2iZWE150201006

G9236AHOSE, INVERTER COOLING, NO.6

mainG923647031iZWE150201006

G92A0ATANK ASSY, INVERTER RESERVE

mainG92A047010iZWE150201006

subG92A0-47011

9017908184

main90179-08184

9046621001

main90466-21001

9046621004

main90466-21004

9046721010

main90467-21010

9046922001

main90469-22001

9167180635

main91671-80635

9167180820

main91671-80820

9167380622

main91673-80622

24 parts on this diagram · 1 diagram in section
