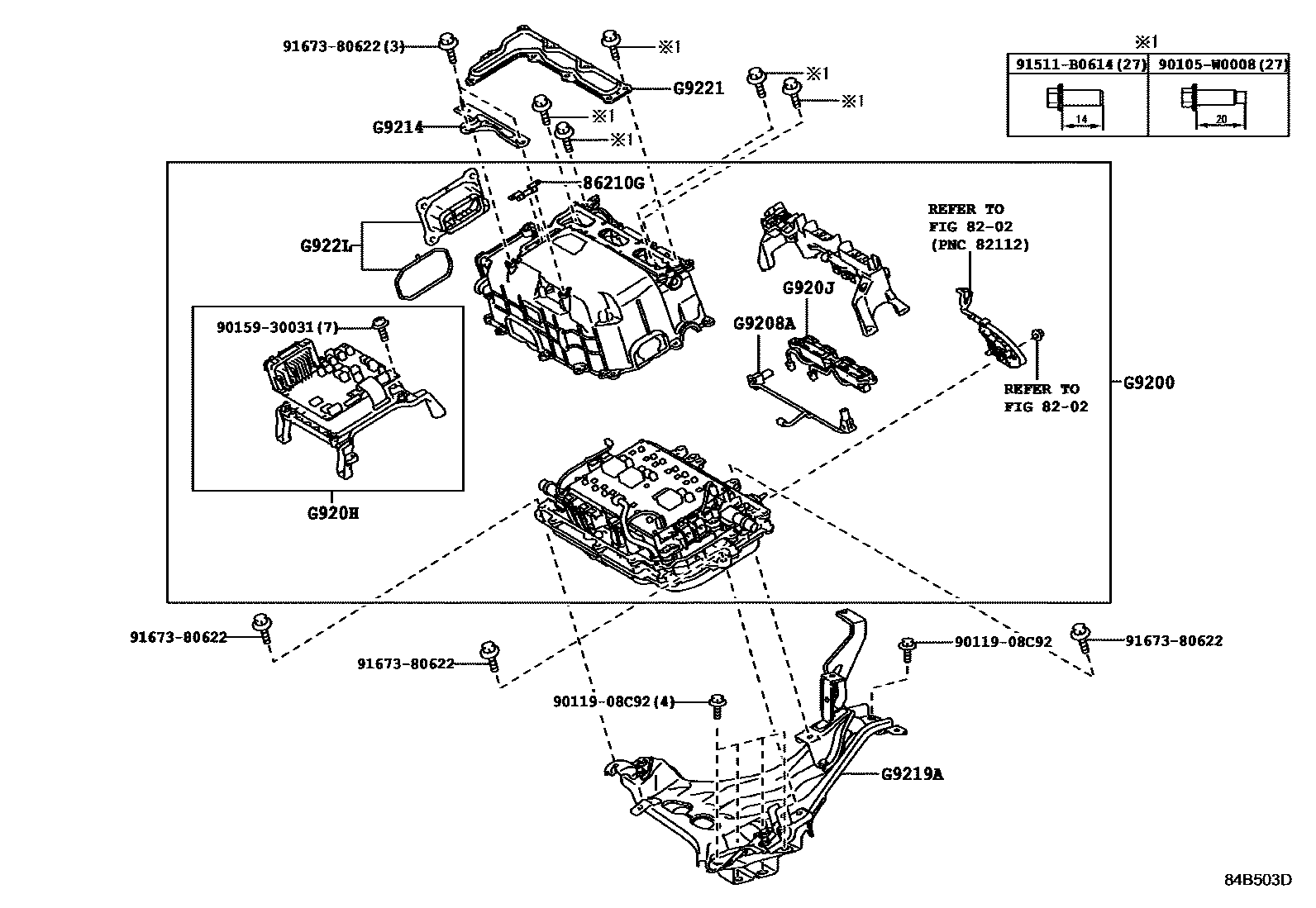

HEV INVERTER

0001 1INVERTER ASSY 0002 1KIT PARTS 0003 1

8202

86210GFUSE, HIGH VOLTAGE

main90982-11050iZWE150201006-201210

G9200INVERTER ASSY, W/CONVERTER

mainG920049015iZWE150201108-201208

subG9200-49025

mainG920049025iZWE150201208-201210

mainG92A047030iZWE150201006-201107

subG92A0-47031

G9208AWIRE SUB-ASSY, INVERTER

mainG920847090iZWE150201006-201210

G920HCOMPUTER SUB-ASSY, MOTOR GENERATOR CONTROL

mainG920H47030iZWE150201006-201210

subG920H-47150

G920JSENSOR SUB-ASSY, INVERTER CURRENT

mainG920J52010iZWE150201006-201210

G9214BRACKET, INVERTER, NO.1

mainG921447050iZWE150201006-201210

subG9214-47060

G9219ABRACKET, INVERTER TRAY

mainG911047011iZWE150201006-201210

subG9110-47030

G9221COVER, INVERTER

mainG902247041iZWE150201006-201210

G922LCOVER, INVERTER SIGNAL CONNECTOR

mainG922L47010iZWE150201006-201210

90105W0008

main90105-W0008

9011908C92

main90119-08C92

9015930031

main90159-30031

91511B0614

main91511-B0614

9167380622

main91673-80622

15 parts on this diagram · 3 diagrams in section
