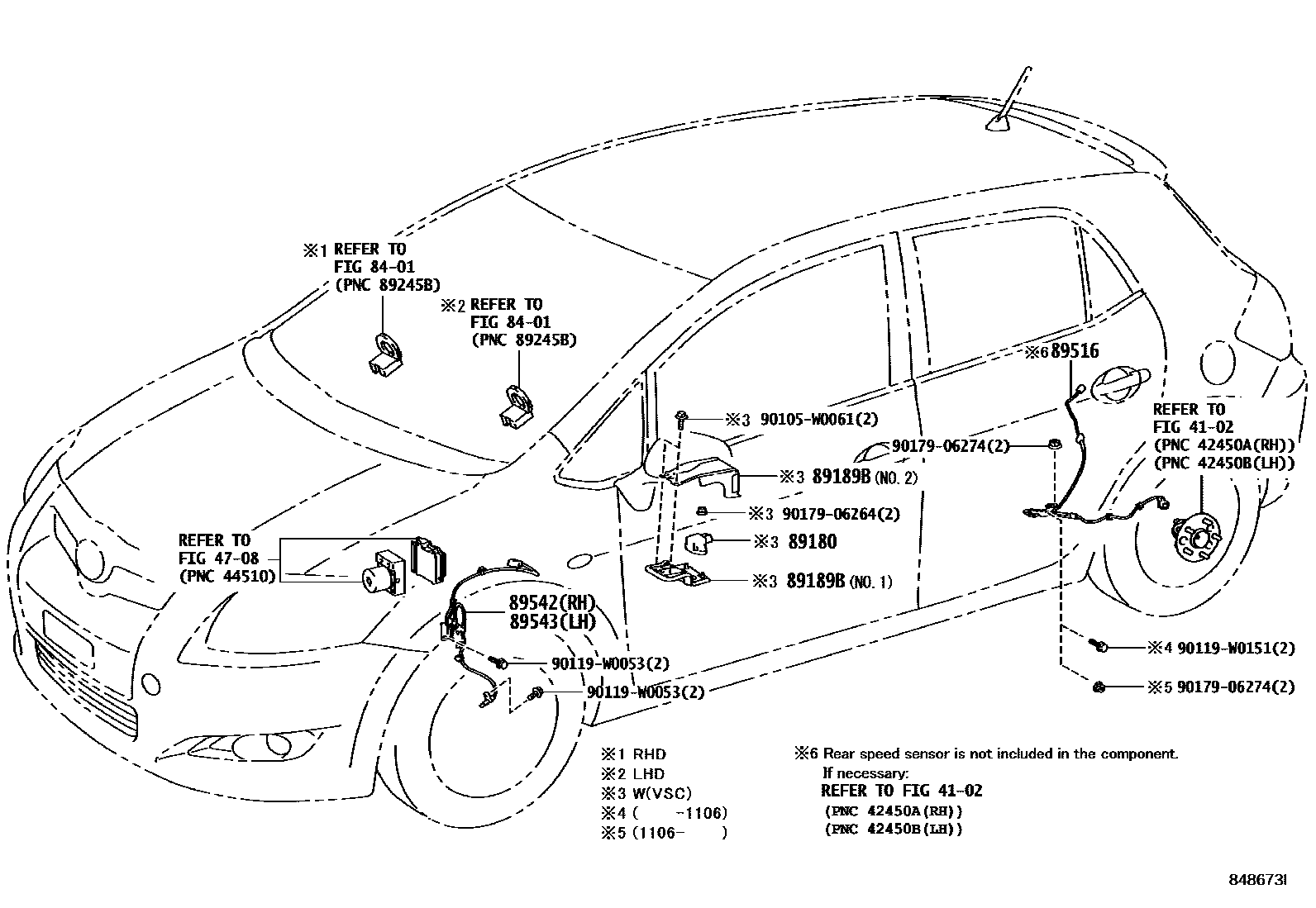

ABS & VSC

0001 1 0002 1 0003 1

4102

4708

8401

89180SENSOR ASSY, YAWRATE

main89180-12140iZWE150¥120,000201006

main89183-06010iADE150..TERRA200702-200903

VSC-WITH

main89183-06010iADE150..TERRA200702-200903

VSC-WITH(W/CUT OFF SWITCH)

main89183-06010iADE157..5D200903-201001

89189BBRACKET, YAWRATE SENSOR

main89189-02020iADE157200702-201001

NO.1

main89189-02020iADE157200702-200903

VSC-WITH,NO.1

main89189-02020iADE157200702-200903

VSC-WITH(W/CUT OFF SWITCH),NO.1

main89189-02030iADE150200702-201001

NO.2

main89189-02030iADE157200702-200903

VSC-WITH,NO.2

main89189-02030iADE157200702-200903

VSC-WITH(W/CUT OFF SWITCH),NO.2

main89189-02030iZWE150201006

89516WIRE, SKID CONTROL SENSOR

main89516-02071iNDE150,ZRE151200702-201106

RH

main89516-02081iZZE150200702-201106

LH

main89516-02090iADE157¥440200702-201001

RH

main89516-02100iADE157..3D¥2,570200702-201001

LH

main89516-02170iADE150,NDE150,NRE150,ZRE15#,ZWE150201106

RH

main89516-02180iADE150,NDE150,NRE150,ZRE15#,ZWE150201106

LH

89542SENSOR, SPEED, FRONT RH

main89542-02060iADE15#,NDE150,ZRE151,ZZE150200702-200706

sub89542-02061¥18,100

main89542-02061iNDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC¥18,100200707-201305

main89542-12080iZWE150¥15,100201006-201211

89543SENSOR, SPEED, FRONT LH

main89543-02060iADE15#,NDE150,ZRE151,ZZE150¥21,700200702-200706

sub89543-02061¥18,100

main89543-02061iZZE150¥18,100200707-201305

main89543-12080iZWE150¥15,100201006-201211

90105W0061

main90105-W0061

90119W0053

main90119-W0053¥100

90119W0151

main90119-W0151¥100

9017906264

main90179-06264¥100

9017906274

main90179-06274¥70

13 parts on this diagram · 3 diagrams in section
