METER

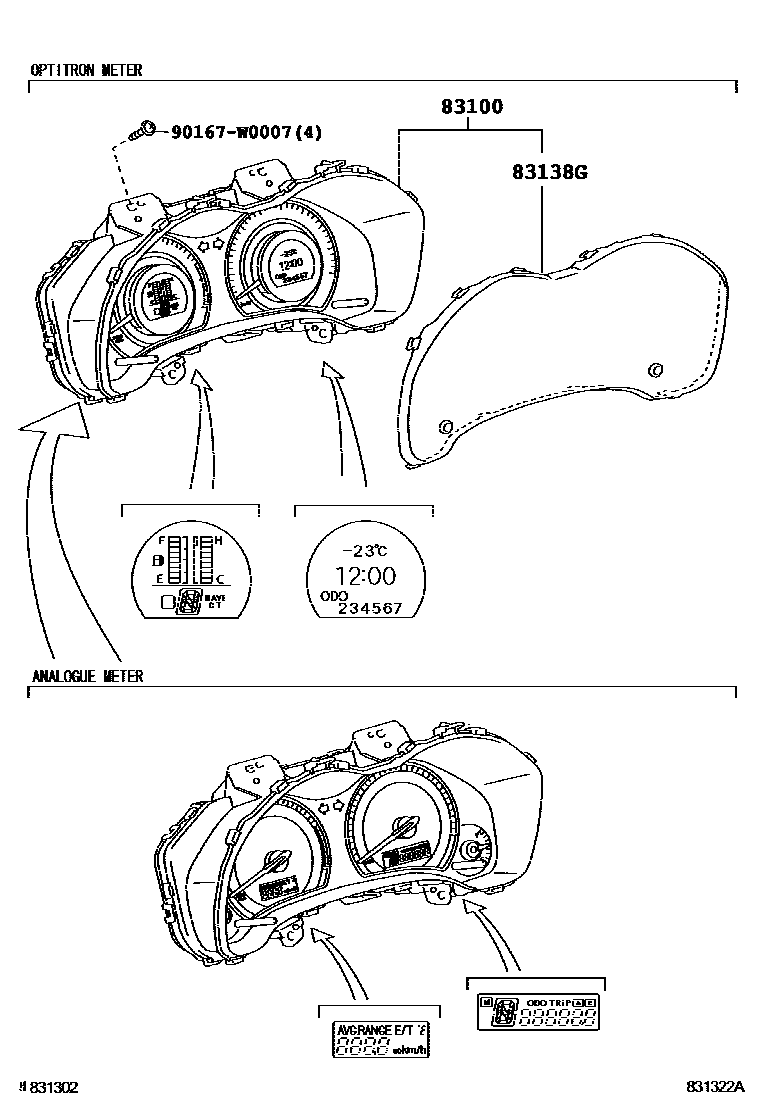

83100METER ASSY, COMBINATION

main83800-02L52i200702-200902

main83800-02L92i200702-200902

main83800-02M12i200702-200706

main83800-02M32i200702-200706

main83800-0Z290i200707-200902

main83800-0Z300i200707-200902

main83800-0Z460i200902-201001

main83800-0Z480i200902-200912

main83800-0Z500i200902-200912

main83800-0Z520i200902-201001

main83800-0ZC40i200912-201210

main83800-0ZC60i200912-201210

main83800-0ZC80i200912-201210

main83800-0ZD00i200912-201210

main83800-0ZD70i200912-201210

main83800-0ZN50i201006-201105

main83800-0ZN51i201106-201210

main83800-0ZN70i200909-201001

main83800-0ZP00i201001-201210

main83800-02L21i200702-200811

SPEEDOMETER-KM/H,W(METER ASSY:ANALOGUE)

main83800-02L41i200702-200902

SPEEDOMETER-KM/H,W(METER ASSY:ANALOGUE)

main83800-02L62i200702-200902

SPEEDOMETER-MILE&KM/H,W(METER ASSY:OPTITRON)

main83800-02M02i200702-200902

SPEEDOMETER-MILE&KM/H,W(*MMT & METER ASSY:OPTITRON)

main83800-02M22i200702-200902

SPEEDOMETER-MILE&KM/H,W(METER ASSY:OPTITRON)

main83800-02M42i200702-200902

SPEEDOMETER-MILE&KM/H,W(*MMT & METER ASSY:OPTITRON)

main83800-0Z340i200811-200912

SPEEDOMETER-KM/H,W(METER ASSY:ANALOGUE)

main83800-0Z350i200902-200912

SPEEDOMETER-KM/H,W(METER ASSY:ANALOGUE)

main83800-0Z360i200902-201001

SPEEDOMETER-KM/H,W(METER ASSY:ANALOGUE)

main83800-0Z420supersedes 83800-0Z440i200811-201001

STOP & START SYSTEM PACKAGE

main83800-0Z430i200811-200912

STOP & START SYSTEM PACKAGE&SPEEDOMETER-MILE&KM/H,W(METER ASSY:OPTITRON)

main83800-0Z450i200811-201001

SPEEDOMETER-MILE&KM/H,W(METER ASSY:OPTITRON)

main83800-0Z470i200902-201001

SPEEDOMETER-MILE&KM/H,W(METER ASSY:OPTITRON)

main83800-0Z490i200902-200912

SPEEDOMETER-MILE&KM/H,W(*MMT & METER ASSY:OPTITRON)

main83800-0Z510i200902-201001

SPEEDOMETER-MILE&KM/H,W(METER ASSY:OPTITRON)

main83800-0Z530i200902-201001

SPEEDOMETER-MILE&KM/H,W(*MMT & METER ASSY:OPTITRON)

main83800-0ZB40i200912-201105

SPORT PACKAGE

main83800-0ZB50i201105-201210

SPEEDOMETER-KM/H,W(METER ASSY:ANALOGUE)

main83800-0ZC00supersedes 83800-0ZC20i200912-201305

STOP & START SYSTEM PACKAGE

main83800-0ZC10i200912-201210

STOP & START SYSTEM PACKAGE&SPEEDOMETER-MILE & KM/H,W(METER ASSY:OPTITRON)

main83800-0ZC30i200912-201210

SPEEDOMETER-MILE & KM/H,W(METER ASSY:OPTITRON)

main83800-0ZC50i200912-201210

SPEEDOMETER-MILE & KM/H,W(METER ASSY:OPTITRON)

main83800-0ZC70i200912-201210

SPEEDOMETER-MILE&KM/H,W(*MMT & METER ASSY:OPTITRON)

main83800-0ZC90i200912-201210

SPEEDOMETER-MILE & KM/H,W(METER ASSY:OPTITRON)

main83800-0ZD10i200912-201210

SPEEDOMETER-MILE&KM/H,W(*MMT & METER ASSY:OPTITRON)

main83800-0ZM30i200912-201210

SPEEDOMETER-MILE & KM/H,W(METER ASSY:ANALOGUE)

main83800-0ZM40i201105-201210

SPEEDOMETER-KM/H,W(*MMT & METER ASSY:ANALOGUE)

main83800-0ZM50i200912-201210

SPEEDOMETER-MILE&KM/H,W(*MMT & METER ASSY:ANALOGUE)

main83800-0ZM60i201105-201210

SPEEDOMETER-MILE & KM/H,W(METER ASSY:ANALOGUE)

main83800-0ZM70i200912-201105

SPORT PACKAGE

main83800-0ZM80i200912-201210

SPEEDOMETER-MILE&KM/H,W(*MMT & METER ASSY:ANALOGUE)

main83800-0ZM90i200912-201210

LIGHT

main83800-0ZN00i200912-201210

LIGHT&SPEEDOMETER-MILE & KM/H,W(METER ASSY:OPTITRON)

main83800-0ZN30i201006-201105

WITH(EXHAUST HEATER & PTC HEATER)

main83800-0ZN31i201106-201210

WITH(EXHAUST HEATER & PTC HEATER)

main83800-0ZN40i201006-201105

SPEEDOMETER-MILE & KM/H,W(METER ASSY:OPTITRON)

main83800-0ZN41i201106-201210

SPEEDOMETER-MILE & KM/H,W(METER ASSY:OPTITRON)

main83800-0ZN60i200909-201001

SPEEDOMETER-KM/H,W(METER ASSY:ANALOGUE)

83138GGLASS, COMBINATION METER

main83852-02L21i200912-201210

SPEEDOMETER-MILE & KM/H,W(METER ASSY:ANALOGUE)

main83852-02L51i200702-200811

main83852-0ZN30i201006-201210

90167W0007

main90167-W0007

3 parts on this diagram · 1 diagram in section
