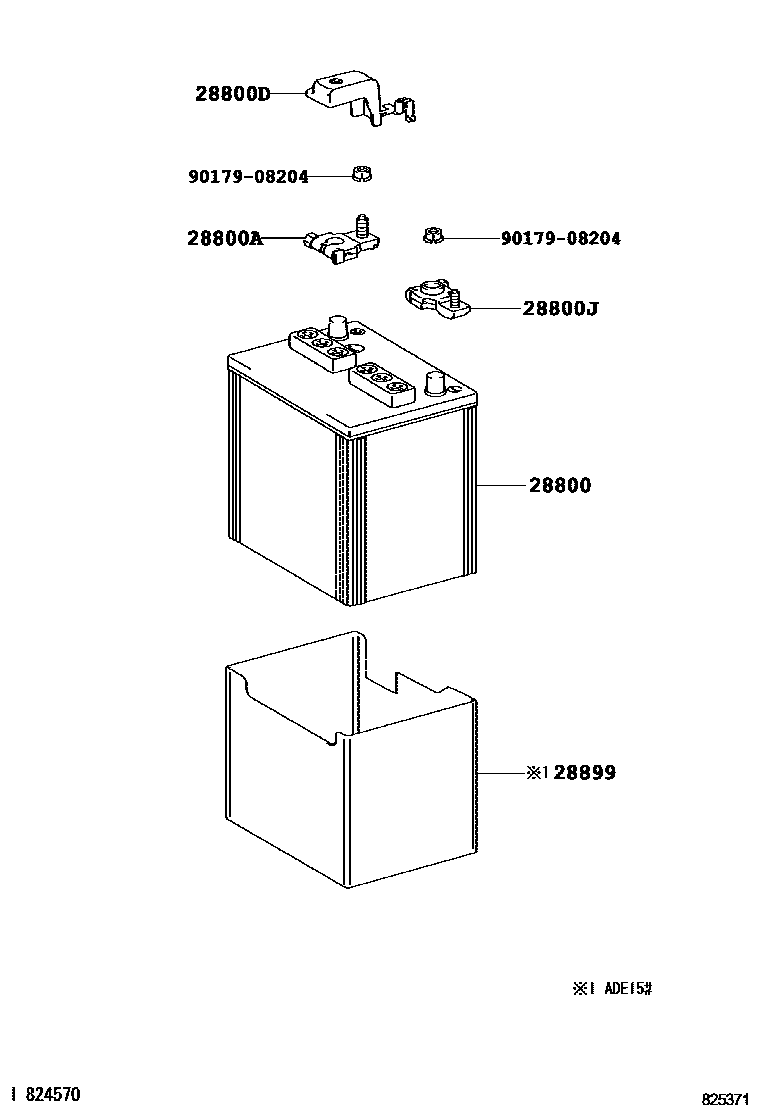

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY

28800BATTERY

main28800-0D130i4ZZFE..ZZE150..TERRA200702-200902

LN1,MUTLU

main28800-0D140i1ZRFE..ZRE151..TERRA200702-201305

LN2,MUTLU

main28800-0D140i1ZRFE..ZRE151..TERRA200702-200902

LN2,COLD AREA SPEC,MUTLU

main28800-0D140i1ZRFE..ZRE151..TERRA200702-200902

LN2,COLD AREA SPEC&FRONT FOG LAMP-WITH(WHITE),MUTLU

main28800-0D140i1ZRFE..ZRE151..TERRA200702-200902

LN2,SUB COLD AREA SPEC,MUTLU

main28800-0D140i1ZRFE..ZRE151..TERRA200702-200902

LN2,SUB COLD AREA SPEC&FRONT FOG LAMP-WITH(WHITE),MUTLU

main28800-0D140i1ZRFE..ZRE151..TERRA200702-200902

LN2,FRONT FOG LAMP-WITH(WHITE),MUTLU

main28800-0D340i4ZZFE..ZZE150..TERRA200702-200902

LN1,VARTA

main28800-0D350i1ZRFE..ZRE151..TERRA200702-200902

LN2,SUB COLD AREA SPEC&FRONT FOG LAMP-WITH(WHITE),VARTA

main28800-0D350i4ZZFE..ZZE150..SOL200702-201305

LN2,VARTA

main28800-0D350i4ZZFE..ZZE150..SOL200702-200902

LN2,COLD AREA SPEC,VARTA

main28800-0D350i4ZZFE..ZZE150..SOL200702-200902

LN2,COLD AREA SPEC&FRONT FOG LAMP-WITH(WHITE),VARTA

main28800-0D350i4ZZFE..ZZE150..SOL200702-200902

LN2,SUB COLD AREA SPEC,VARTA

main28800-0D350i4ZZFE..ZZE150..SOL200702-200902

LN2,FRONT FOG LAMP-WITH(WHITE),VARTA

main28800-0R050i1ADFTV,2ADFHV..ADE15#..LHD200903-201210

LN4,MUTLU

main28800-0R060i2ADFHV..ADE157..5D;1ADFTV..ADE150..LHD..5D200903-201210

LN4,VARTA

main28800-0R060i1ADFTV,2ADFHV..ADE15#200702-200903

LN4

main28800-21170i2ZRFXE..ZWE150201006-201011

S46B24R

sub28800-21171

main28800-21171i2ZRFXE..ZWE150201012-201210

S46B24R

sub28800-21172

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i1ZRFE..ZRE151..4FC;1NRFE,1ZRFAE,2ZRFAE..NRE150,ZRE15#..3D200702-201001

main90982-05056i1NDTV..NDE150..5D..6F..TERRA;1ADFTV..ADE150..LHD..5D..DCRL;2ADFHV,1NDTV..ADE157,NDE150..5D..(E,SOL)200702-201001

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12490i2ZRFAE..ZRE152..LHD..SOL;1NRFE,1ZR#..NRE150,ZRE151200702-201001

main82821-12620i1ADFTV,2ADFHV..ADE15#..LHD200702-201001

main82821-52060i1NDTV..NDE150200702-201001

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070i4ZZFE..ZZE150200702-201001

main90982-06071i2ZRFXE..ZWE150201006

28899INSULATOR, BATTERY

main28899-26050i1ADFTV,2ADFHV..ADE15#200702-201001

9017908204

main90179-08204

6 parts on this diagram · 5 diagrams in section
