CENTER STOP LAMP

7601

81006LAMP SET, STOP CENTER

main81006-12010iNDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC200702-200911

sub81006-12011

main81006-12011iADE15#..LHD..5D;NDE150..5D..(E,SOL);ZRE152..LHD..5D..SOL;NDE150..5D..6F..TERRA;NRE150,ZRE151..5D..MTM200912-201001

81570LAMP ASSY, CENTER STOP

main81570-05110

81579BRACKET, CENTER STOP LAMP

main81579-02080

81935DCORD ASSY, CENTER STOP LAMP

9015950270

main90159-50270

90159W0007

main90159-W0007

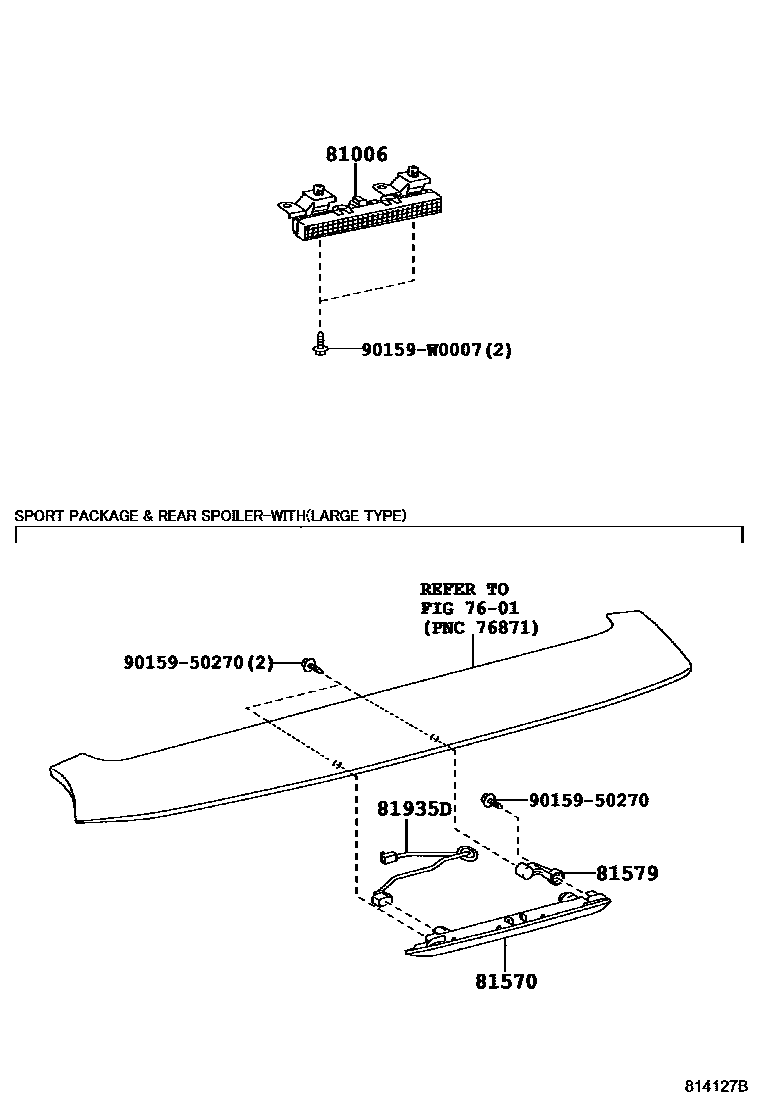

7 parts on this diagram · 1 diagram in section
