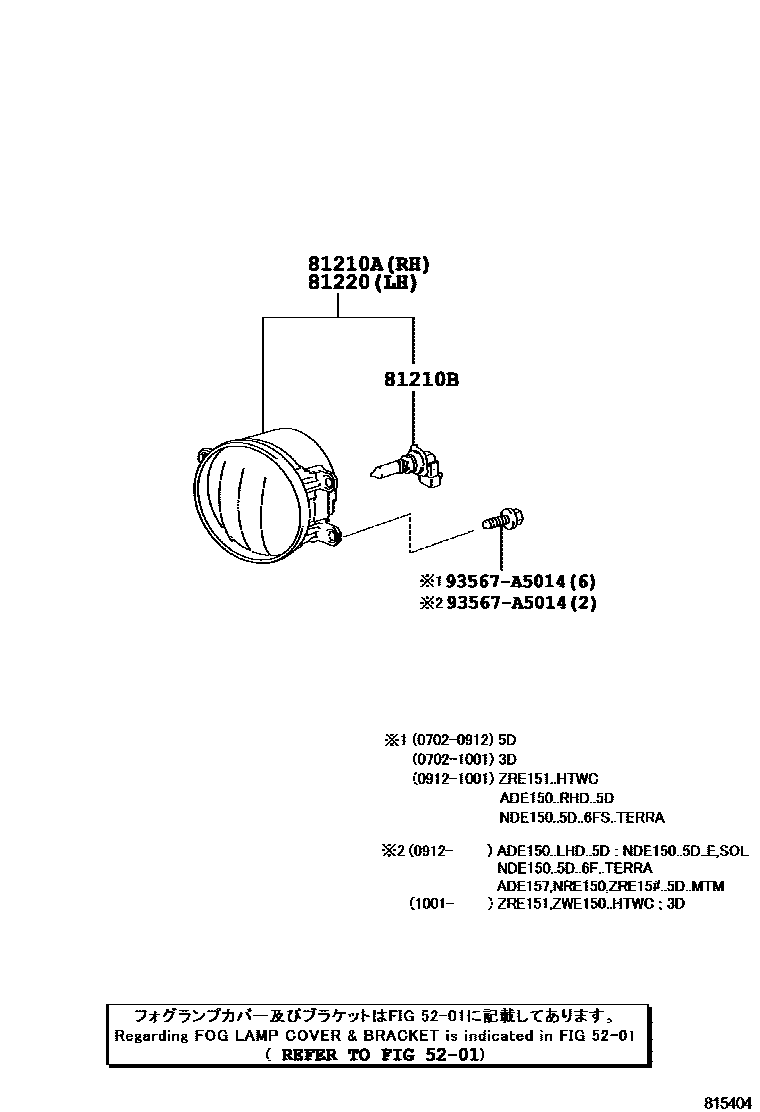

FOG LAMP

0001 1 0002 1

5201

81210ALAMP ASSY, FOG, RH

main81210-02110iADE150,NDE150,NRE150,ZRE151..E,TERRA201203-201305

FRONT FOG LAMP-WITH(WHITE)

main81210-02110iNRE150,ZRE151..RHD..5D..6F..SOL201203-201210

FRONT FOG LAMP-WITHOUT

main81210-0D041iZZE150..SOL200702-201004

FRONT FOG LAMP-WITH(WHITE)

sub81210-0D042

main81210-0D041iZZE150..SOL200702-201004

FRONT FOG LAMP-WITHOUT

sub81210-0D042

main81210-0D042iNRE150,ZRE151..RHD..5D..6F..SOL201005-201203

FRONT FOG LAMP-WITHOUT

main81210-0D042iADE15#,NDE150,NRE150,ZRE15#,ZWE150..G,SOL201005-201203

FRONT FOG LAMP-WITH(WHITE)

81210BBULB, FOG LAMP

main90981-13081iNDE150..(5F,5FS)..TERRA;ADE150,ZRE151,ZZE150..TERRA..(DCR,DCRL,HTWC)200702-201203

12V 55W,HALOGEN,FRONT FOG LAMP-WITHOUT

main90981-13081iADE150,ZRE151,ZZE150..RHD..5D..(5F,6F)..SOL..(DCR,HTWC)200702-201203

12V 55W,HALOGEN

main90981-13081iADE150,ZRE151,ZZE150..RHD..5D..(5F,6F)..SOL..(DCR,HTWC)200702-201203

12V 55W,HALOGEN,FRONT FOG LAMP-WITH(WHITE)

main90981-WD016iADE15#,NDE150,NRE150,ZRE15#,ZWE150..G,SOL201203-201210

12V 19W

main90981-WD016iADE15#,NDE150,NRE150,ZRE15#,ZWE150..G,SOL201203-201210

12V 19W,FRONT FOG LAMP-WITHOUT

main90981-WD016iADE150,NDE150,NRE150,ZRE151..E,TERRA201203-201305

12V 19W,FRONT FOG LAMP-WITH(WHITE)

81220LAMP ASSY, FOG, LH

main81220-02110iNRE150,ZRE151..RHD..5D..6F..SOL201203

FRONT FOG LAMP-WITHOUT

main81220-02110iNRE150,ZRE151..RHD..5D..6F..SOL201203

FRONT FOG LAMP-WITH(WHITE)

main81220-0D041iNDE150,ZRE151..TERRA200702-201004

FRONT FOG LAMP-WITH(WHITE)

sub81220-0D042

main81220-0D041iNDE150,ZRE151..TERRA200702-201004

FRONT FOG LAMP-WITHOUT

sub81220-0D042

main81220-0D042iNRE150,ZRE151..RHD..5D..6F..SOL201005-201203

FRONT FOG LAMP-WITHOUT

main81220-0D042iNRE150,ZRE151..RHD..5D..6F..SOL201005-201203

FRONT FOG LAMP-WITH(WHITE)

93567A5014

main93567-A5014

5 parts on this diagram · 2 diagrams in section
