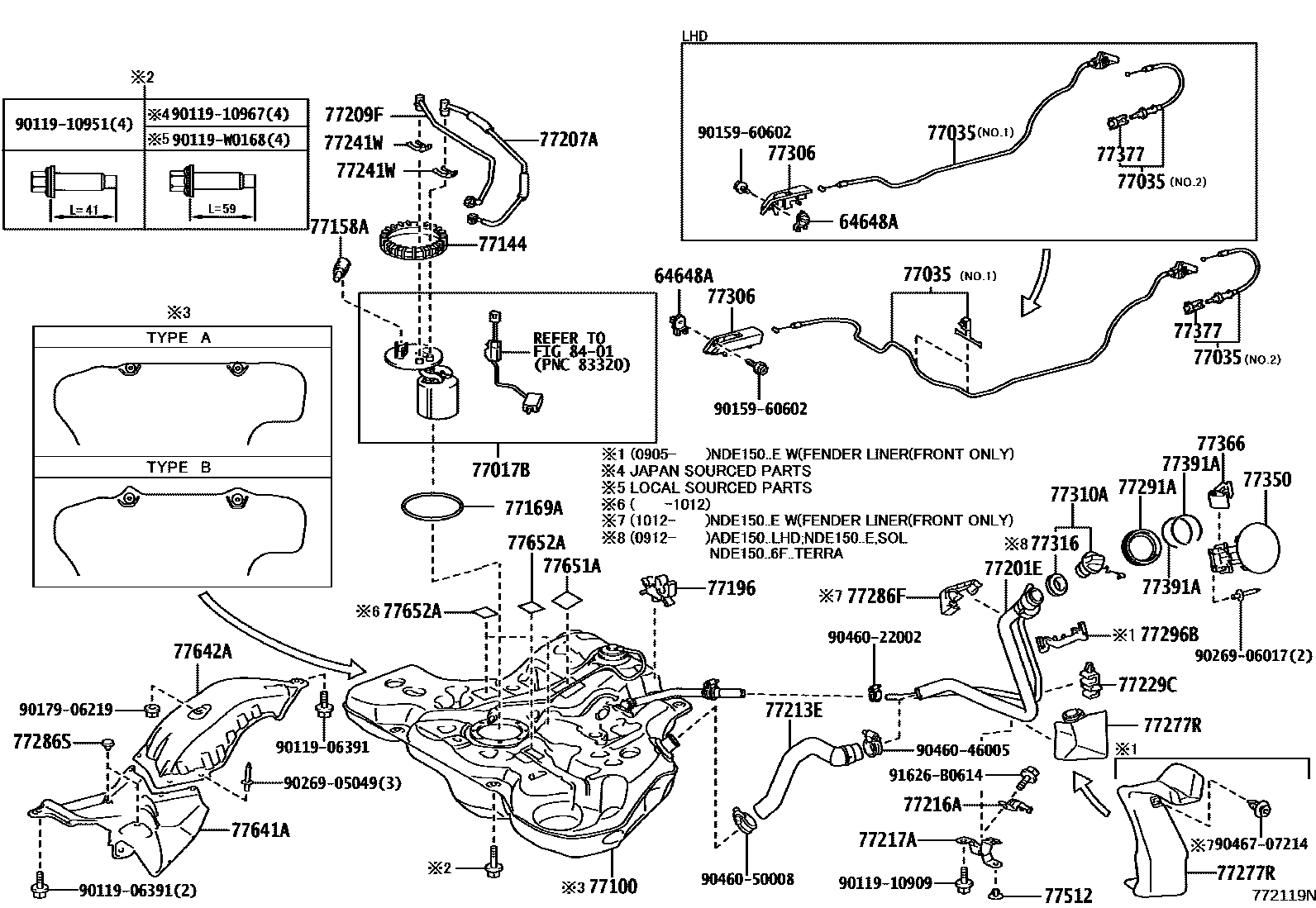

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0005 1FUEL TANK 0006 1FUEL TANK 0007 1FUEL TUBE 0008 1FUEL TUBE 0010 1FUEL TUBE

64648AGROMMET, LUGGAGE DOOR LOCK OPENER

main64648-12020iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201001

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77010-02020iADE157..LHD200912

LIGHT

sub77010-02080

main77010-02020iNDE150200702-201001

sub77010-02080

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-12430iADE150..RHD..DCRL;ADE157,NDE150,NRE150,ZRE15#..RHD..3D..(6F,6FS)200811-201001

NO.1

main77035-12430iZZE150..RHD200702-200903

NO.1:REFER ILLUST.

main77035-12440iADE15#..LHD200702-200903

NO.1:REFER ILLUST.

main77035-12440iNDE150..LHD..5D..6F..TERRA;NDE150..LHD..5D..(6F,6FS)..(E,SOL);ADE15#,NRE150,ZRE15#..LHD..5D..(6F,6FS)..(DCRL,HTWC,HTWVM)200811-201001

NO.1

main77035-12490iNDE150,ZRE151200702-200903

NO.2:REFER ILLUST.

main77035-12490iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200811-201001

NO.2

77100TANK ASSY, FUEL

main77001-02250iZZE150200702-201001

main77001-02260iADE157,NDE150..3D;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA200702-201001

main77001-02260iADE15#..LHD;NDE150..E,SOL;NDE150..6F..TERRA200912

TYPE A:REFER ILLUST.

main77001-02540iADE15#..LHD;NDE150..E,SOL;NDE150..6F..TERRA200912

TYPE B:REFER ILLUST.

main77001-47120iZWE150201006

sub77001-76250

77144RETAINER, FUEL PUMP GAUGE

main77144-0H010iNDE150,ZRE151200702-201001

main77144-0H010iADE150..LHD;NDE150..E,SOL;NDE150..6F..TERRA200912

LIGHT

main77144-52040iZWE150201006

77158ASUPPORT, TANK SUCTION TUBE

main77158-0D020iADE15#200702-201001

main77158-0D020iADE157..LHD200912

LIGHT

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0D030iZZE150200702-201001

main77169-0D030iADE150..LHD;NDE150..E,SOL;NDE150..6F..TERRA200912

LIGHT

main77169-52030iZWE150201006

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-02050iZZE150200702-201001

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-12640iZZE150200702-201001

sub77201-12641

sub77216-12190

sub77217-47080

sub91626-B0614

main77201-12650iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;ADE157,NDE150..5D..(E,SOL)200702-201001

sub77201-12651

sub77216-12190

sub77217-47080

sub91626-B0614

main77201-12810iZWE150201006

77207ATUBE SUB-ASSY, FUEL RETURN

main77204-02050iNDE150200702-201001

main77204-02050iADE157..LHD200912

LIGHT

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-02090iZZE150200702-201001

main77209-02090iADE150..LHD;NDE150..E,SOL;NDE150..6F..TERRA200912

LIGHT

main77209-47060iZWE150201006

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-12270iZZE150200702-201001

main77213-12340iZWE150201006

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-12190iNDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC200702-201210

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-47080iNDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC200702-201210

77229CCLAMP, BREATHER TUBE

main77229-12070iZZE150200702-201001

77241WCLIP, TUBE JOINT

main77241-32060iADE157..LHD200912

LIGHT

main77241-32060iZZE150200702-201001

main77241-33011iZWE150201007

main77241-60320iZWE150201006-201007

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-12180iZZE150200702-201305

77286FCLAMP, FUEL TUBE, NO.2

77286SCUSHION, FUEL TANK PROTECTOR

main77286-02070iADE150,NDE150,NRE150,ZRE15#201208

main77286-12110iNDE150,ZRE151200702-201207

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-02080iZZE150200702-201001

77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-52030iZZE150..RHD200702-201010

main77306-52040iZZE150..LHD200702-201010

main77306-52050iNDE150,NRE150,ZRE151,ZWE150..RHD201010

main77306-52060iADE15#,NDE150,NRE150,ZRE15#,ZWE150..LHD201010

77310ACAP ASSY, FUEL TANK

main77300-20020iADE150..LHD..5D;NDE150..5D..6F..TERRA;ADE157,NDE150..5D..(E,SOL)200901-201001

main77300-52030iNRE150,ZRE15#..5D..(6F,6FS)200702-201001

77316GASKET, FUEL TANK CAP

main77316-52040iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912

77350LID ASSY, FUEL FILLER OPENING

main77350-12480iZZE150200702-201001

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-52010iZZE150200702-201001

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12060iZZE150200702-201001

77391ARING, FUEL INLET BOX

main77391-12020iZZE150200702-201001

77512BRACKET, FUEL TANK, REAR

main77512-35140iZZE150200702-201001

77641APROTECTOR, FUEL TANK, NO.1

main77641-02060iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;NDE150,NRE150,ZRE15#..3D..(6F,6FS)200702-201001

main77641-02070iADE157..5D200702-201001

main77641-02160iZWE150201006

77642APROTECTOR, FUEL TANK, NO.2

main77642-02010iADE150200702-200906

sub77606-12130

main77642-02011iADE150..LHD..5D;NDE150..5D..(E,SOL);NDE150..5D..6F..TERRA;NRE150,ZRE15#..5D..MTM200906-201001

77651ACUSHION, FUEL TANK, NO.1

main77651-12070iZWE150200702-201001

main77651-12070iADE150..LHD;NDE150..E,SOL;NDE150..6F..TERRA200912

LIGHT

77652ACUSHION, FUEL TANK, NO.2

main77652-45020iZRE151..4FC;NRE150,ZRE15#..3D..(6F,6FS)200702-201012

8401

9011906391

main90119-06391

9011910909

main90119-10909

9011910951

main90119-10951

9011910967

main90119-10967

90119W0168

main90119-W0168

9015960602

main90159-60602

9017906219

main90179-06219

9026905049

main90269-05049

9026906017

main90269-06017

9046022002

main90460-22002

9046046005

main90460-46005

9046050008

main90460-50008

9046707214

main90467-07214

91626B0614

main91626-B0614

48 parts on this diagram · 8 diagrams in section
