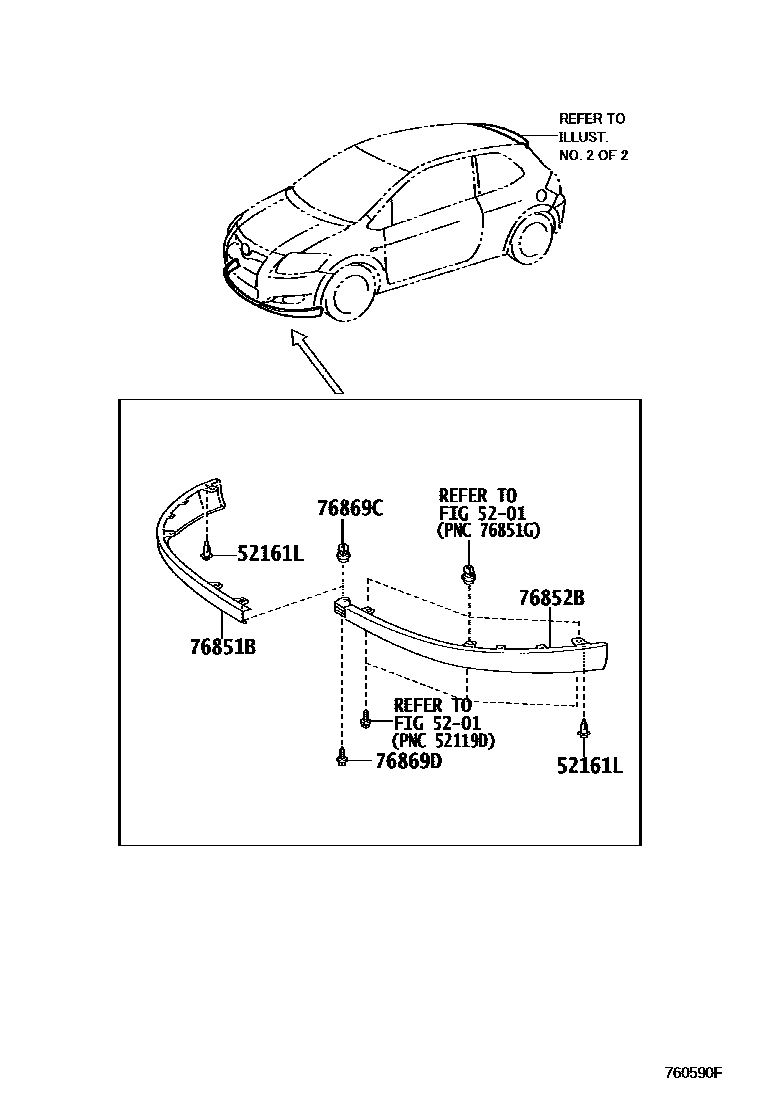

MUDGUARD & SPOILER

0001 1 0004 1 0005 1 0006 1ISRAEL SPEC 0007 1

5201

52161LPIECE, FRONT SPOILER

main52161-02030iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200702-201001

(L)

main52161-16010iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200702-201001

(J)

sub52161-0K040

76851BSPOILER, FRONT, RH

main76851-02120iNDE150..5F,5FS;ADE15#,ZRE151,ZZE150..DCR,DCRL,HTWC200702-201001

main76851-02190iADE15#..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912

main76851-02230iZWE150201006

76852BSPOILER, FRONT, LH

main76852-02110iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201001

main76852-02170iADE15#..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912

main76852-02210iZWE150201006

76869CGROMMET, SCREW, NO.1

main90189-05144iADE15#,NDE150,ZRE151,ZZE150200702-201001

main90189-06234iNDE150..5F,5FS;ADE15#,ZRE151..DCR,DCRL,HTWC200901-201305

76869DSCREW, NO.2

main90159-60488iNDE150..6F,6FS;ADE15#,NRE150,ZRE15#..(4FC,6F,6FS)..(DCRL,HTWC,HTWVM)200702-201305

6 parts on this diagram · 5 diagrams in section
