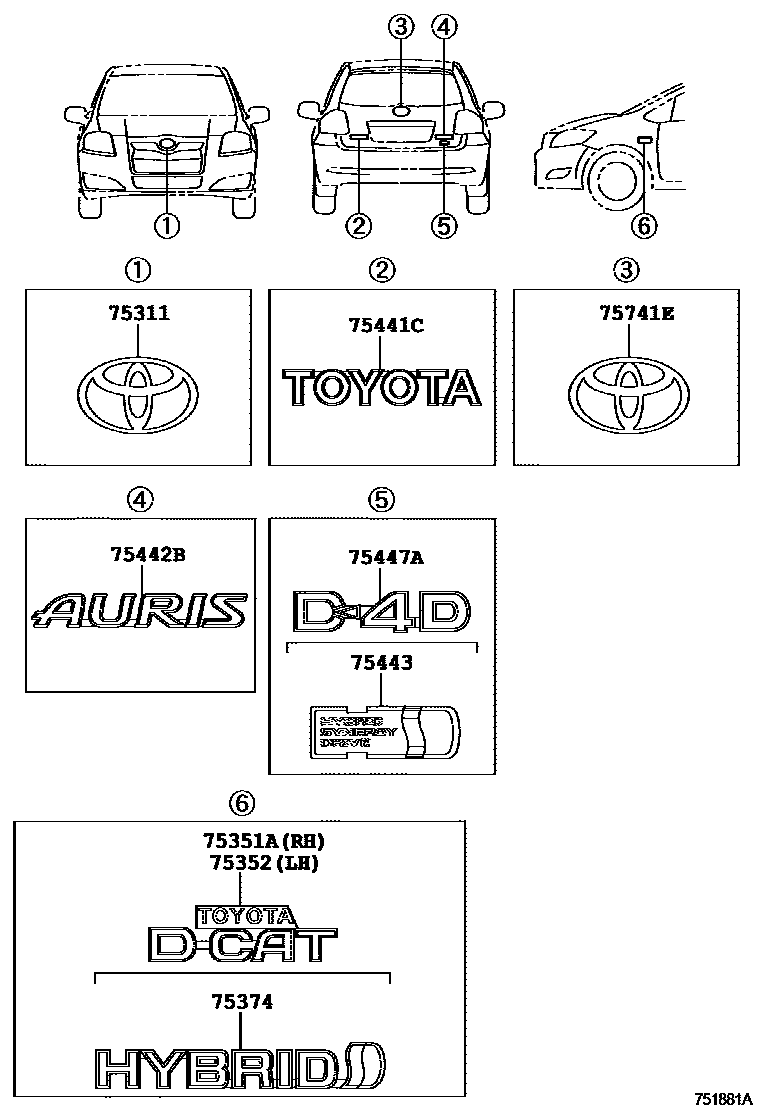

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75301-02070iADE15#..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912

main75311-02140iZZE150200702-201001

main90975-02174iZWE150201006

75351AEMBLEM, FRONT FENDER

main75351-12190iADE157..3D200702-201001

75352BASE, FRONT FENDER EMBLEM

main75352-12050iADE157200702-201001

75374EMBLEM, SIDE PANEL

main75374-33011iZWE150201006-201010

RH

sub75374-33090

main75374-33021iZWE150201006-201010

LH

sub75374-33100

main75374-33090iZWE150201011

RH

main75374-33100iZWE150201011

LH

75441CPLATE, BACK DOOR NAME

main75441-02110iADE15#200702-201001

TOYOTA

75442BPLATE, BACK DOOR NAME, NO.2

main75442-02140iZZE150200702-201001

AURIS

75443PLATE, BACK DOOR NAME, NO.3

main75443-12B10iZWE150201011

main75443-30530iZWE150201006-201010

75447APLATE, BACK DOOR NAME, NO.7

main75447-02051iADE15#,NDE150200702-200710

SOUTH AFRICA SPEC

75741EEMBLEM, SYMBOL

main75312-0D010iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201001

main75403-12030iZWE150201006

main90975-02194iADE15#..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912

9 parts on this diagram · 1 diagram in section
