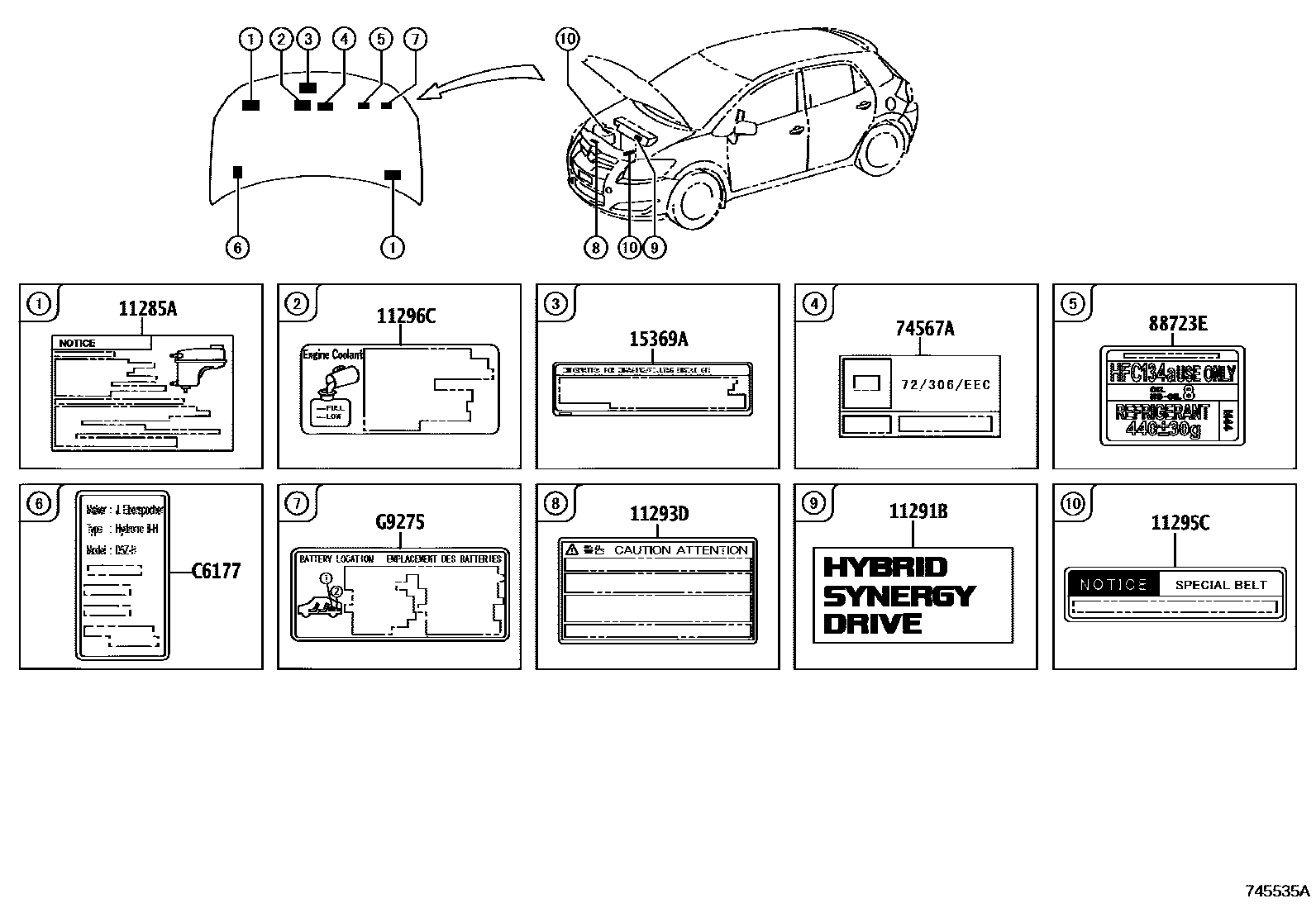

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM 0002 1EXTERIOR 0003 1EXTERIOR & INTERIOR

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-22080i4ZZFE..ZZE150200702-200811

main11285-26010i1ADFTV,2ADFHV,1NDTV..ADE15#,NDE150200702-200810

main11285-33030i1ADFTV..ADE150..RHD..DCRL;1ADFTV..ADE150..LHD..3D..DCRL;2ADFHV,1NRFE..ADE157,NRE150..3D200811-201001

main11285-33040i1NDTV..NDE150..3D;1NDTV..NDE150..5D..6FS..TERRA200902-201001

main11285-37040i2ZRFXE..ZWE150201006-201105

main11285-37060i2ZRFXE..ZWE150201106

11291BPLATE, ENGINE NAME

main11291-37060i2ZRFXE..ZWE150201006-201210

11293DLABEL, ENGINE CAUTION

main11293-21080i2ZRFXE..ZWE150201006-201010

main11293-21081i2ZRFXE..ZWE150201011

sub11293-36070

11295CLABEL, ENGINE SERVICE NOTICE, NO.2

main11295-33010i1NDTV..NDE150200902-201001

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-27020i1ADFTV,2ADFHV,1NDTV,1ZRFE,4ZZFE..ADE15#,NDE150,ZRE151,ZZE150200702-200704

15369ALABEL, ENGINE OIL INFORMATION

main15369-0N010i1NDTV..NDE150..3D..DCRL;1NDTV..NDE150..5D..6FS..TERRA..DCRL200902-201001

(L)

main15369-33010i1NDTV..NDE150..RHD..DCRL;1NDTV..NDE150..LHD..(E,SOL)..DCRL;1NDTV..NDE150..LHD..6F..TERRA..DCRL200912

(J)

sub15369-11010

74567APLATE, E.C.E APPROVED NUMBER

main74567-20261iADE150..DCR200702-200903

main74567-25041iADE15#..LHD;NDE150..RHD..DCRL;NDE150..LHD..(E,SOL)..DCRL;NDE150..LHD..6F..TERRA..DCRL200912

main74567-26201iNDE150..SOL..DCR;NDE150..6F..TERRA..DCR200912

88723ELABEL, COOLER SERVICE CAUTION

main88733-12060iZWE150201006

main88733-20020supersedes 88733-20020iZZE150..SOL200702-200811

AIR CONDITIONER-MANUAL(MAKER OPTION)

C6177LABEL, HEATER NOTICE

mainC617705010iADE15#..LHD;NDE150..LHD..(E,SOL);NDE150..LHD..6F..TERRA200912

COLD AREA SPEC

G9275LABEL, BATTERY CAUTION, NO.1

mainG927547030iZWE150201006

subG9275-76020

10 parts on this diagram · 3 diagrams in section
