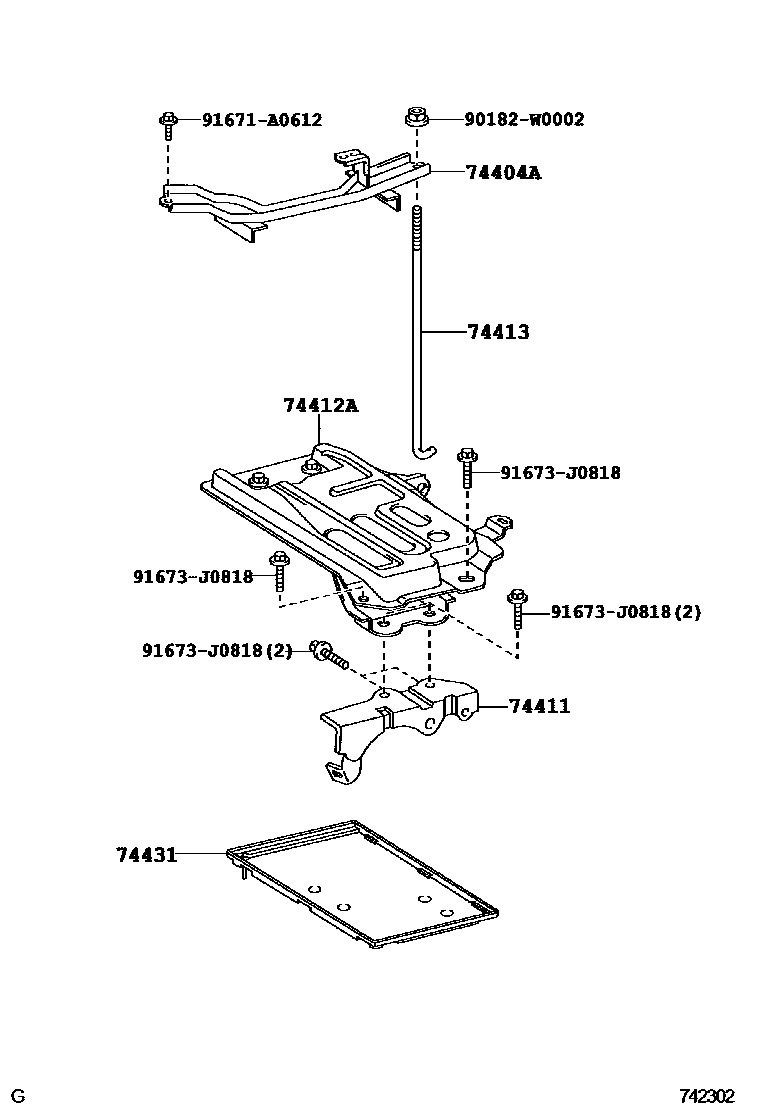

BATTERY CARRIER

0001 1 0002 1

74404ACLAMP SUB-ASSY, BATTERY

main74404-02120iADE15#..LHD200912

main74404-02131iNDE150,ZRE151200702-200902

*153

main74404-02140supersedes 74404-02130iZZE150..LHD..TERRA200702-200811

FRONT FOG LAMP-WITH(WHITE),*154

main74404-02280iNRE150..3D200811-201001

*153

main74404-02260iNRE150200912

STOP & START SYSTEM PACKAGE,*154

74411CARRIER, BATTERY

main74401-02010iADE15#200702-200903

74412ACARRIER, BATTERY, NO.2

main74410-02010iADE15#..LHD200912

main74410-02020iNRE150,ZRE151;ZRE152..LHD..SOL200912

main74410-02030iNDE150..3D;NDE150..5D..6FS..TERRA200902-201001

main74410-02110iNRE150..5D200811-200912

STOP & START SYSTEM PACKAGE

74413BOLT, BATTERY CLAMP

main74451-30110iNDE150,ZRE151200702-200902

main74451-52010iZWE150201006

74431TRAY, BATTERY

main74431-02140iADE157..3D;ADE150..RHD;ADE150..LHD..3D200903-201001

main74431-02160supersedes 74431-02180iZRE151..TERRA200702-200902

COLD AREA SPEC

main74440-12010iZWE150201006

main74431-02150supersedes 74431-02170iNDE150..LHD200702-200902

SUB COLD AREA SPEC

90182W0002

main90182-W0002

91671A0612

main91671-A0612

91673J0818

main91673-J0818

8 parts on this diagram · 2 diagrams in section
