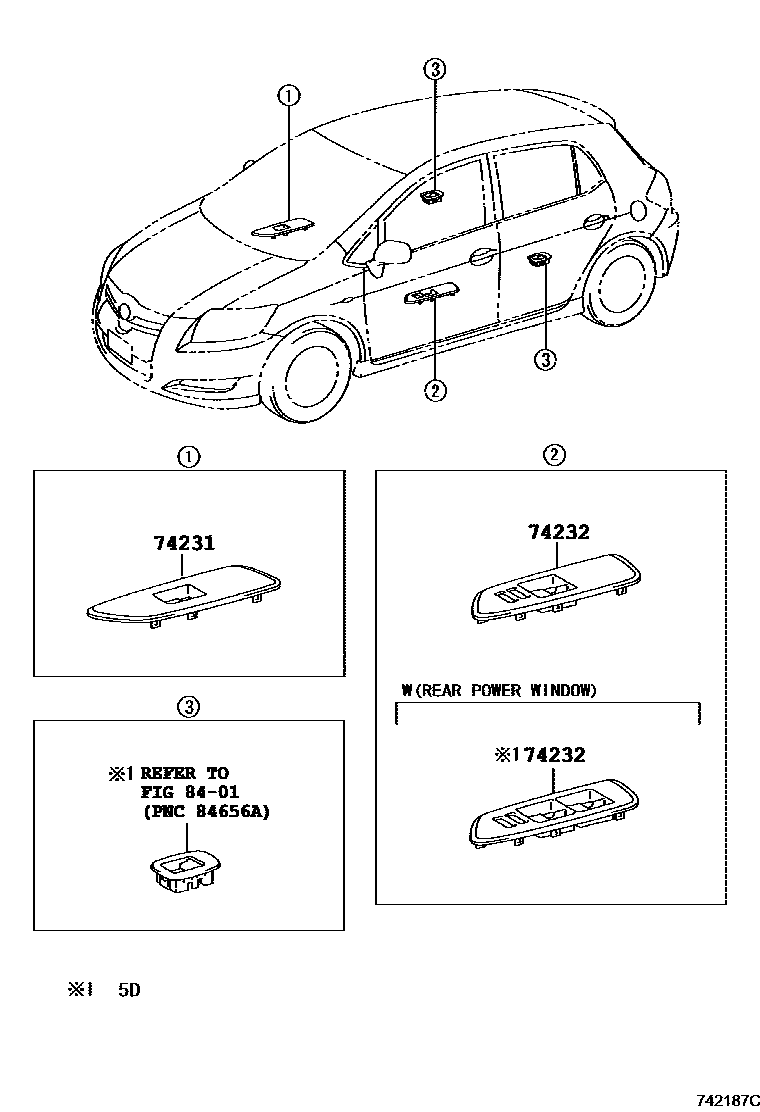

ARMREST & VISOR
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-02530-B0iNDE150..LHD..(6F,6FS);ADE15#,NRE150,ZRE15#..LHD..(4FC,6F,6FS)..(DCRL,HTWC,HTWVM)200702-201305
DK.GRAY,TRIM1#
GREGE,TRIM0#,4#
GREGE,TRIM4#
POWER WINDOW-FRONT & REAR(ALL ONE TOUCH UP/DOWN),GREGE,TRIM4#
DK.GRAY,TRIM1#
GREGE,TRIM4#
main74231-02550-B0iNDE150..RHD..5D..(6F,6FS)..SOL;ADE15#,NRE150,ZRE15#..RHD..5D..(6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200702-201001
DK.GRAY,TRIM1#
POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1#
GREGE,TRIM4#
DK.GRAY,TRIM1#
GREGE,TRIM4#
DK.GRAY,TRIM1#
GREGE,TRIM4#
POWER WINDOW-FRONT & REAR(ALL ONE TOUCH UP/DOWN),GREGE,TRIM4#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-02540-B0iZRE151..LHD..3D;ZRE151..5D..TERRA;NDE150..LHD..TERRA;NDE150..LHD..3D..SOL200702-201001
DK.GRAY,TRIM1#
GREGE,TRIM0#,4#
GREGE,TRIM4#
DK.GRAY,TRIM1#
POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1#
main74232-02550-E0iNDE150..LHD..5D..(6F,6FS)..SOL;ADE15#,NRE150,ZRE15#..LHD..5D..(4FC,6F,6FS)..SOL..(DCRL,HTWC,HTWVM)200702-201001
GREGE,TRIM4#
GREGE,TRIM0#,4#
DK.GRAY,TRIM1#
GREGE,TRIM0#,4#
GREGE,TRIM4#
POWER WINDOW-FRONT & REAR(ALL ONE TOUCH UP/DOWN),GREGE,TRIM4#
main74232-02A90-B0iZRE151..TERRA;ADE15#,NRE150..LHD..3D;NDE150..LHD..6F..(E,TERRA);NDE150,ZRE15#..LHD..3D..SOL;ADE150,NRE150..LHD..5D..TERRA200912-201305
DK.GRAY,TRIM1#
GREGE,TRIM4#
DK.GRAY,TRIM1#
POWER WINDOW-FRONT & REAR(ALL ONE TOUCH UP/DOWN),GREGE,TRIM4#
GREGE,TRIM4#
8401
3 parts on this diagram · 3 diagrams in section
