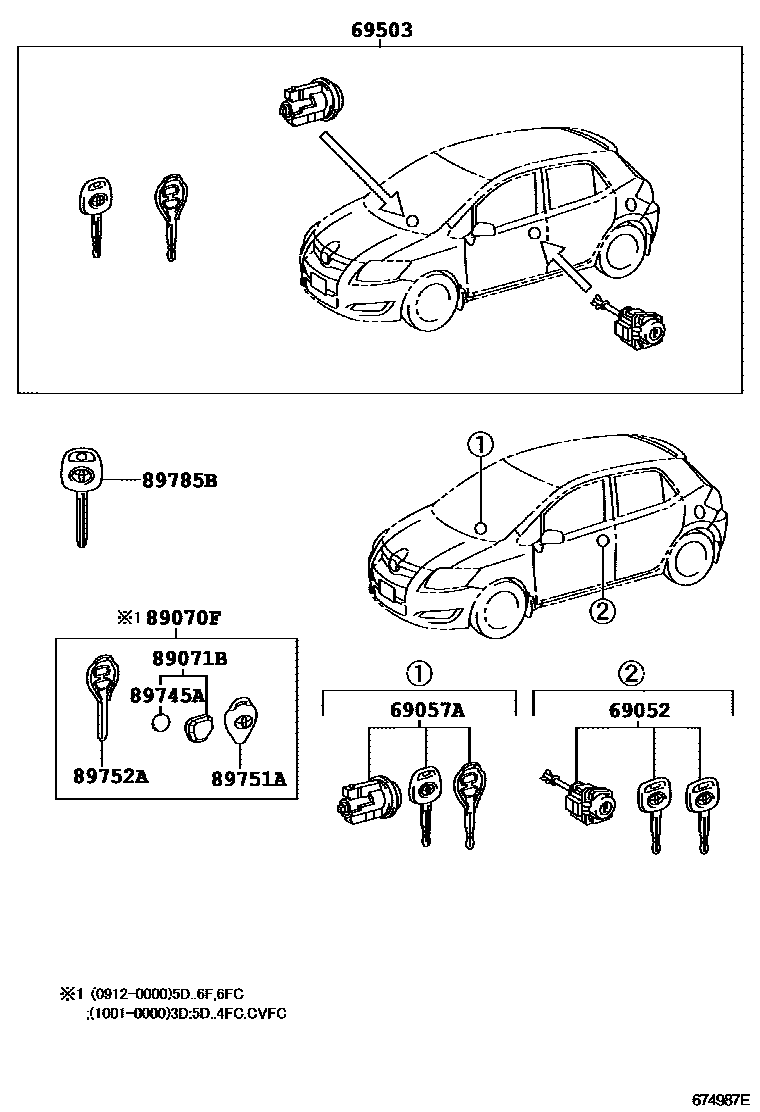

LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
main69052-02190iZRE151..4FC;NDE150..5D..6FS..TERRA;NDE150..LHD..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..LHD..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200805-201001
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
main69057-02270iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200702-201001
69503CYLINDER SET, LOCK
89070FTRANSMITTER ASSY, DOOR CONTROL (CUT KEY)
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&AIR CONDITIONER-AUTO(SINGLE)&STARTING SYSTEM-PUSH BUTTON
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON
STARTING SYSTEM-PUSH BUTTON
POWER DOOR LOCK-WITH(DOUBLE LOCK)
POWER DOOR LOCK-WITH(FREE WHEEL)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTINGSYSTEM-PUSH BUTTON
POWER DOOR LOCK-WITH(FREE WHEEL)&AIR CONDITIONER-AUTO(SINGLE)&STARTING SYSTEM-PUSHBUTTON
POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON
sub89071-0F060
POWER DOOR LOCK-WITH(FREE WHEEL)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTINGSYSTEM-PUSH BUTTON
POWER DOOR LOCK-WITH(FREE WHEEL)&AIR CONDITIONER-AUTO(SINGLE)&STARTING SYSTEM-PUSHBUTTON
POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&AIR CONDITIONER-AUTO(SINGLE)&STARTING SYSTEM-PUSH BUTTON
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON
STARTING SYSTEM-PUSH BUTTON
POWER DOOR LOCK-WITH(DOUBLE LOCK)
89745ABATTERY, TRANSMITTER
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON
POWER DOOR LOCK-WITH(DOUBLE LOCK)
POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON
STARTING SYSTEM-PUSH BUTTON
POWER DOOR LOCK-WITH(FREE WHEEL)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTINGSYSTEM-PUSH BUTTON
POWER DOOR LOCK-WITH(FREE WHEEL)&AIR CONDITIONER-AUTO(SINGLE)&STARTING SYSTEM-PUSHBUTTON
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&AIR CONDITIONER-AUTO(SINGLE)&STARTING SYSTEM-PUSH BUTTON
89751ACOVER, TRANSMITTER HOUSING
POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON
sub89751-05010
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON
sub89751-05010
STARTING SYSTEM-PUSH BUTTON
POWER DOOR LOCK-WITH(DOUBLE LOCK)
POWER DOOR LOCK-WITH(FREE WHEEL)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTINGSYSTEM-PUSH BUTTON
POWER DOOR LOCK-WITH(FREE WHEEL)&AIR CONDITIONER-AUTO(SINGLE)&STARTING SYSTEM-PUSHBUTTON
POWER DOOR LOCK-WITH(FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&AIR CONDITIONER-AUTO(DUAL MODE CONTROL)&STARTING SYSTEM-PUSH BUTTON
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&AIR CONDITIONER-AUTO(SINGLE)&STARTING SYSTEM-PUSH BUTTON
POWER DOOR LOCK-WITH(DOUBLE LOCK & FREE WHEEL)&STARTING SYSTEM-PUSH BUTTON
89752ACASE, TRANSMITTER HOUSING
sub89752-0F020
main89752-02230iADE15#..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912-201305
CUT KEY
main89752-0F010iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200811-201001
POWER DOOR LOCK-WITH(DOUBLE LOCK),CUT KEY
CUT KEY
main89752-0F020iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200811-201001
BLANK KEY
89785BTRANSMITTER, TRANSPONDER KEY MASTER
main89785-02230iADE15#..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912-201305
BLANK KEY
main89785-02250iADE15#..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912-201305
CUT KEY
main89785-0D020iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200811-201001
POWER DOOR LOCK-WITH(DOUBLE LOCK),BLANK KEY
BLANK KEY
CUT KEY
9 parts on this diagram · 3 diagrams in section
