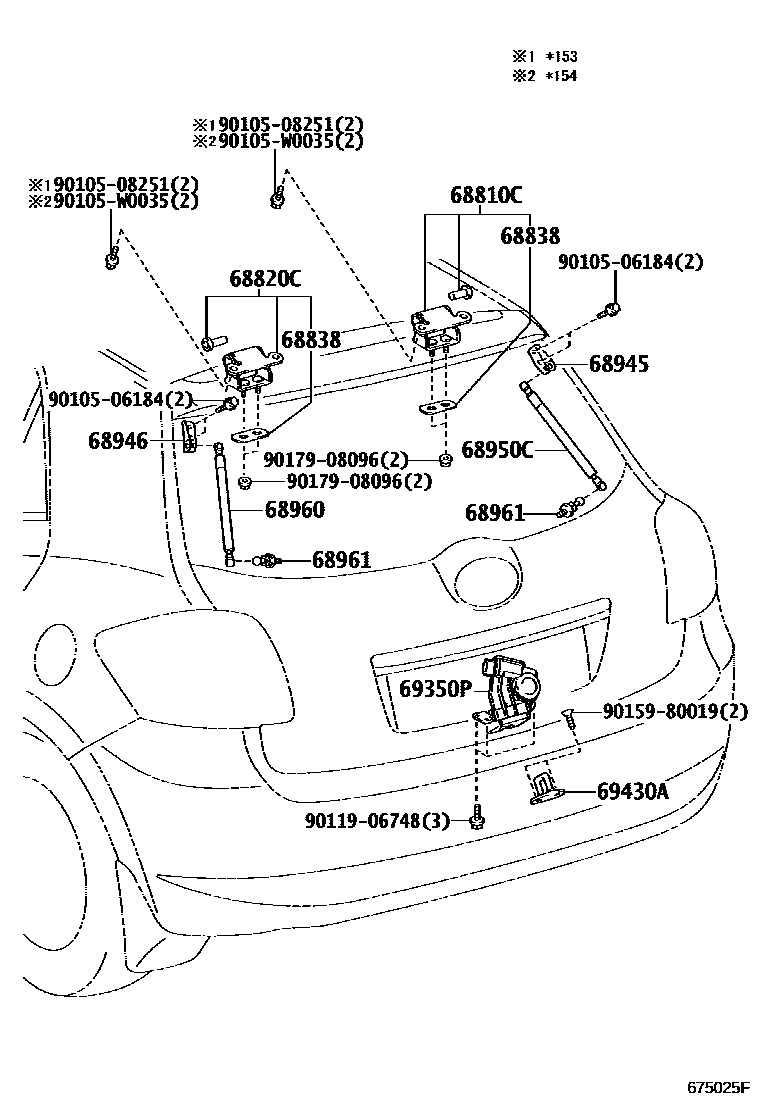

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-02020iADE15#200801-200903

(L),*154

sub68810-21051

main68810-05010iNDE150..6F,6FS;ADE15#,NRE150,ZRE15#..(4FC,6F,6FS)..(DCRL,HTWC,HTWVM)200811-201001

*153

main68810-21050iNDE150;ADE15#,NRE150,ZRE15#..DCRL,HTWC,HTWVM200902-201001

(J),*154

68820CHINGE ASSY, BACK DOOR, LH

main68810-02020iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200912-201305

(L)

sub68810-21051

main68810-05010iNDE150,ZRE151200801-200902

*153

main68810-21050iNDE150;ADE15#,NRE150,ZRE15#..DCRL,HTWC,HTWVM200902-201001

(J),*154

68838PAD, BACK DOOR HINGE, NO.1

main68838-05020×2iNDE150,ZRE151200702-200902

*153

main68838-44020×2iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200811-200912

*154

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-02030iADE15#,NDE150,ZRE151,ZZE150200702-200805

main68945-13040iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200811-201001

(J)

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-02030iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200811-200912

(L)

main68946-13040iZRE151..4FC;ADE150..RHD..DCRL;ADE150..LHD..3D..DCRL;NDE150..5D..6FS..TERRA;ADE157,NDE150,NRE150,ZRE15#..3D..(6F,6FS)200811-201001

(J)

68950CSTAY ASSY, BACK DOOR, RH

main68950-02090iADE15#,NDE150,ZRE151,ZZE150200702-200705

main68950-02091iZZE150200706-200811

68960STAY ASSY, BACK DOOR, LH

main68960-02080iADE15#,NDE150,ZRE151,ZZE150200702-200705

main68960-02081iNDE150,ZRE151200706-200902

68961BOLT, BACK DOOR STAY

main68961-02020×2iADE15#,NDE150,ZRE151,ZZE150200702-200706

main68961-05010×2iZZE150200707-200811

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-02080iNDE150..6F,6FS;ADE15#,NRE150,ZRE15#..(4FC,6F,6FS)..(DCRL,HTWC,HTWVM)200811-201001

main69350-28150iADE15#,NDE150,ZRE151,ZZE150200702-200705

sub69350-28151

69430ASTRIKER ASSY, BACK DOOR LOWER LOCK

main69430-0D020iZZE150200705-200811

main69430-20160iADE15#,NDE150,ZRE151,ZZE150200702-200704

9010506184

main90105-06184

9010508251

main90105-08251

90105W0035

main90105-W0035

9011906748

main90119-06748

9015980019

main90159-80019

9017908096

main90179-08096

16 parts on this diagram · 1 diagram in section
