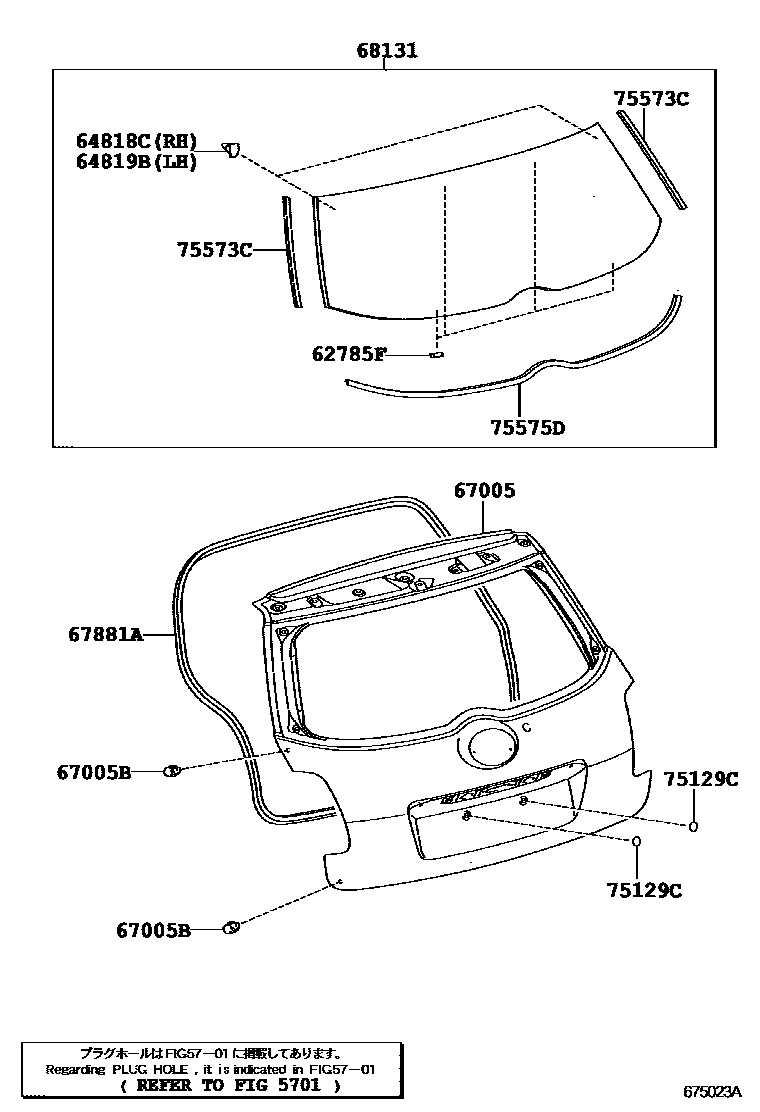

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701

62785FSPACER, BACK DOOR GLASS

main62785-12050iADE15#..LHD;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA;NRE150,ZRE151,ZWE150200805-201001

main62785-60030iADE15#,NDE150,ZRE151,ZZE150200702-200805

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-02030iNDE150,ZRE151200702-201001

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-02020iZZE150200702-201001

67005PANEL SUB-ASSY, BACK DOOR

main67005-02110iNDE150,ZRE151200702-201001

main67005-02200iADE15#..LHD;NRE150,ZRE151;NDE150..E,SOL;ZRE152..LHD..SOL;NDE150..6F..TERRA200912-201305

main67005-02210iZWE150201006-201111

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142iADE150..LHD..5D..DCRL;NDE150..5D..6F..TERRA;NDE150..5D..(6F,6FS)..(E,SOL);ADE157,NRE150,ZRE15#..5D..(6F,6FS)200702-201001

67881AWEATHERSTRIP, BACK DOOR

main67881-02080iZZE150200702-201001

sub67881-12290

68131GLASS, BACK DOOR

main68105-02120iZZE150200702-201001

*HSEA,T=3.1,GREEN

75129CCUSHION, REAR LICENCE PLATE

main75129-40010iZZE150200702-201001

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-02030iZZE150200702-201001

75575DMOULDING, BACK WINDOW, LOWER

main75575-02050iZZE150200702-201001

11 parts on this diagram · 2 diagrams in section
