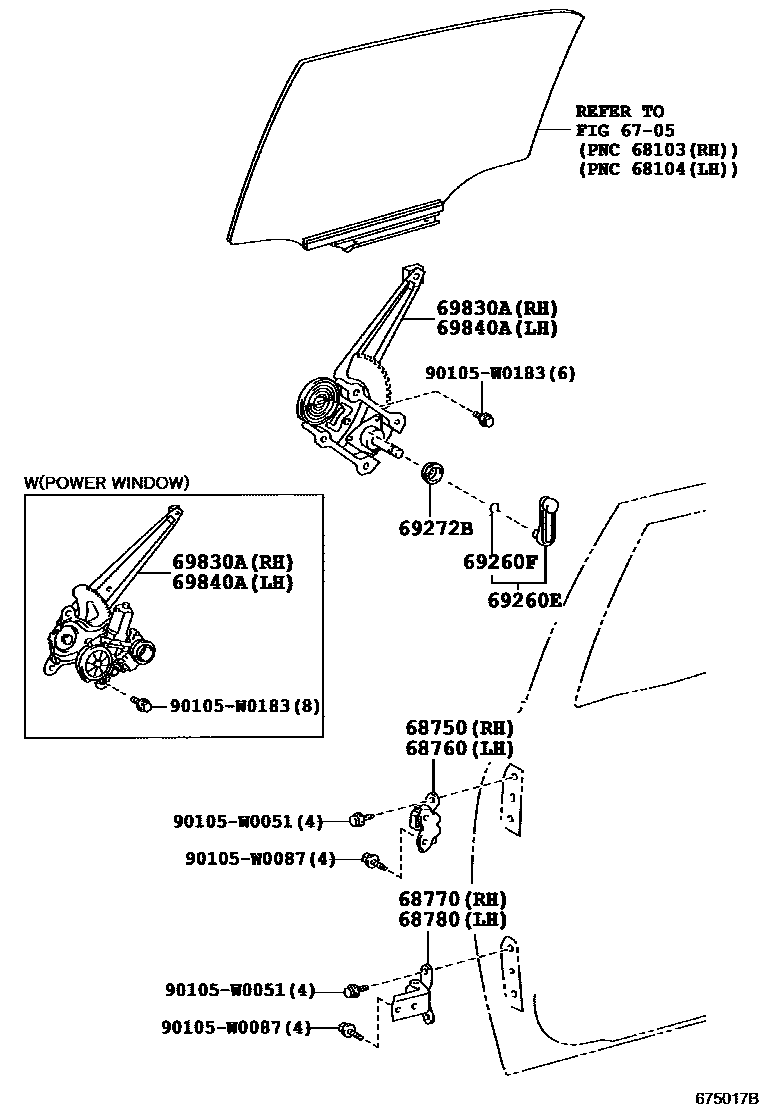

REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0H010iNDE150,ZRE151..5D¥2,030200702-201305

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0H010iZZE150..5D¥2,030200702-201305

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0H010iZZE150..5D¥2,420200702-201305

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0H010iZZE150..5D¥2,410200702-201305

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-02020-B2iZZE150..5D..TERRA200702-201305

DK.GRAY,TRIM1#

sub69260-02020¥1,600

sub69260-02021

main69260-02020-B2iZZE150..5D..TERRA200702-201305

POWER WINDOW-FRONT & REAR(ALL ONE TOUCH UP/DOWN),DK.GRAY,TRIM1#

sub69260-02020¥1,600

sub69260-02021

main69260-02020-B2iZZE150..5D..TERRA200702-201001

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN),DK.GRAY,TRIM1#

sub69260-02020¥1,600

sub69260-02021

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90080-52100iNDE150,ZRE151..5D..TERRA200702-200903

POWER WINDOW-FRONT & REAR(ALL ONE TOUCH UP/DOWN)

main90080-52100iNDE150..5D..6F..(E,TERRA);ADE150,NRE150,ZRE15#..5D..(6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)200811-201001

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-02022iZZE150..5D..TERRA¥100200702-200903

POWER WINDOW-FRONT & REAR(ALL ONE TOUCH UP/DOWN)

main69268-02022iNDE150..5D..6F..(E,TERRA);ADE150,NRE150,ZRE15#..5D..(6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)¥100200811-201001

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-02210iADE150..5D..TERRA200702-201001

main69830-02240iZZE150..5D..SOL200702-201001

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)

main69830-02390iZRE151..5D..TERRA;ADE150,NDE150,NRE150..5D..6F..(E,TERRA)200912

POWER WINDOW-FRONT & REAR(ALL ONE TOUCH UP/DOWN)

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-02210iNDE150..5D..6F..(E,TERRA);ADE150,NRE150,ZRE15#..5D..(6F,6FS)..TERRA..(DCRL,HTWC,HTWVM)200702-201001

main69840-02240iADE150..5D..TERRA200702-201001

POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN)

main69840-02390iADE150..LHD..5D..SOL;ADE157,NDE150,NRE150,ZRE15#,ZWE150..5D..(G,SOL)200912

POWER WINDOW-FRONT & REAR(ALL ONE TOUCH UP/DOWN)

90105W0051

main90105-W0051¥130

90105W0087

main90105-W0087¥80

90105W0183

main90105-W0183¥60

13 parts on this diagram · 1 diagram in section
