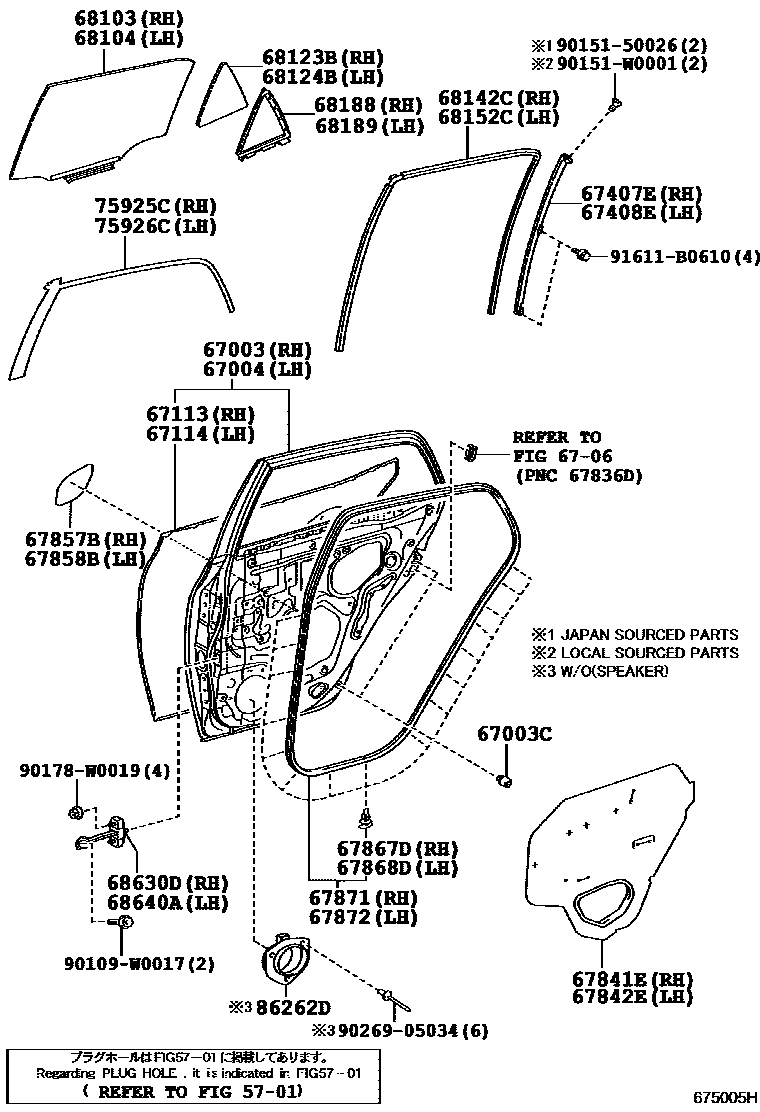

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-02250iNDE150..5D..(6F,6FS);ADE15#,NRE150,ZRE15#..5D..(4FC,6F,6FS)..(DCRL,HTWC,HTWVM)200702-201305

67003CCUSHION, REAR DOOR PANEL

main90541-09124iZZE150..5D¥100200702-201001

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-02260iZZE150..5D200702-201305

6706

67113PANEL, REAR DOOR, OUTER RH

main67113-02110iZZE150..5D200702-201001

67114PANEL, REAR DOOR, OUTER LH

main67114-02110iZZE150..5D200702-201001

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-12280iNDE150,ZRE151..5D¥3,490200702-201001

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-12280iNDE150,ZRE151..5D¥3,490200702-201001

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-02150iZZE150..5D200702-201001

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-02130iZRE151..4FC;ADE150..RHD..5D..DCRL;NDE150..5D..6FS..TERRA200702-201001

67857BPROTECTOR, REAR DOOR PANEL, RH

67858BPROTECTOR, REAR DOOR PANEL, LH

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iZZE150..5D¥100200702-201001

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iZZE150..5D¥100200702-201001

67871WEATHERSTRIP, REAR DOOR, RH

main67871-02140iZZE150..5D200702-201001

67872WEATHERSTRIP, REAR DOOR, LH

main67872-02140iZZE150..5D200702-201001

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-02210iNDE150..5D..(5F,5FS);ADE15#,ZRE151,ZZE150..5D..(DCR,DCRL,HTWC)200702-201001

*HSEA,=3.1,S.GREEN

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-02200iNDE150..5D..(5F,5FS);ADE15#,ZRE151,ZZE150..5D..(DCR,DCRL,HTWC)200702-201001

*HSEA,=3.1,S.GREEN

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-02170iZZE150..5D200702-201001

*HSEA,T=3.1,S.GREEN

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-02170iZZE150..5D200702-201001

*HSEA,T=3.1,S.GREEN

68142CRUN, REAR DOOR GLASS, RH

main68142-02110iZZE150..5D200702-201001

68152CRUN, REAR DOOR GLASS, LH

main68152-02110iZZE150..5D200702-201001

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-02090iZZE150..5D200702-201001

sub68188-12320¥2,000

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-02090iZZE150..5D200702-201001

sub68189-12320¥2,000

68630DCHECK ASSY, REAR DOOR, RH

main68630-02120iADE15#,NDE150,ZRE151,ZZE150..5D200702-200809

sub68630-02121

main68630-02121iZZE150..5D200810-201001

68640ACHECK ASSY, REAR DOOR, LH

main68630-02120iADE15#,NDE150,ZRE151,ZZE150..5D200702-200809

sub68630-02121

main68630-02121iZZE150..5D200810-201001

75925CTAPE, BLACK OUT, NO.3 RH

main75925-02020iZZE150..5D200702-201001

75926CTAPE, BLACK OUT, NO.3 LH

main75926-02020iZZE150..5D200702-201001

86262DCOVER, REAR DOOR SPEAKER

main86262-13010iZZE150..5D..TERRA¥3,760200702-201001

90109W0017

main90109-W0017¥60

9015150026

main90151-50026¥60

90151W0001

main90151-W0001¥110

90178W0019

main90178-W0019¥110

9026905034

main90269-05034¥140

91611B0610

main91611-B0610¥70

36 parts on this diagram · 2 diagrams in section
