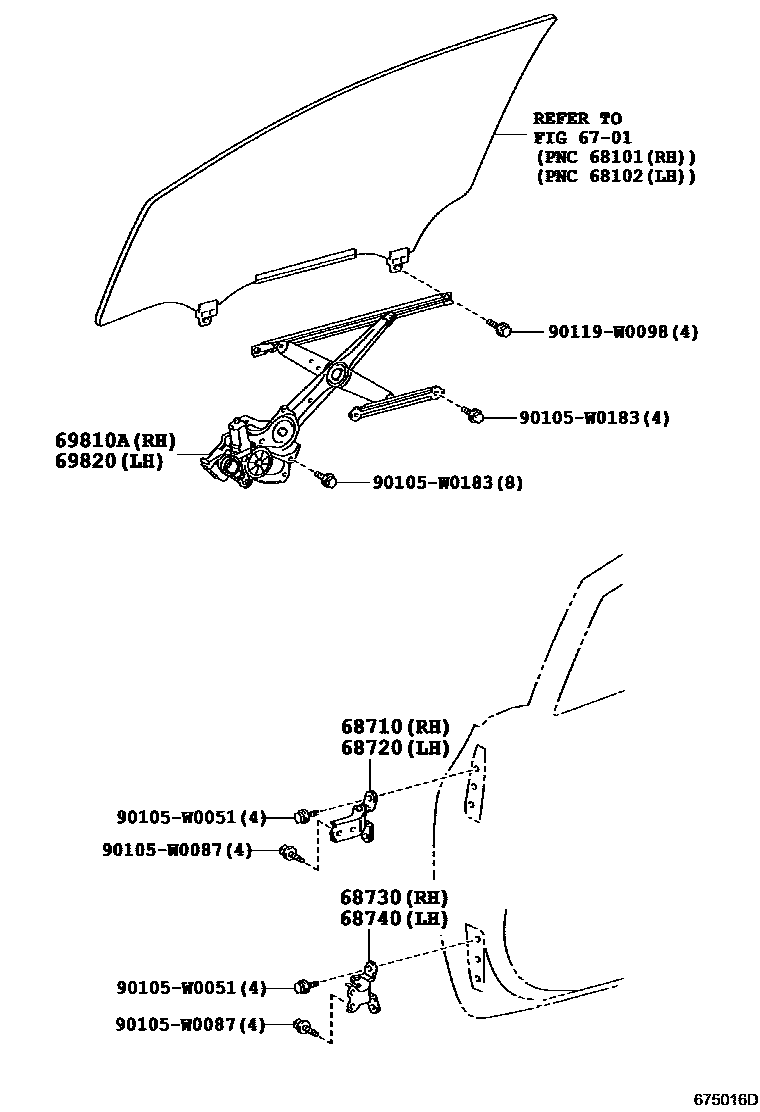

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02060iZZE150200702-201305

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02060iZZE150200702-201305

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02050iZZE150200702-201305

(L)

main68730-12120iADE15#200702-201305

(J)

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02050iZZE150200702-201305

(L)

main68740-12120iNDE150,ZRE151200702-201305

(J)

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-02310iADE150..RHD..DCRL;ADE157,NDE150,NRE150,ZRE15#..RHD..3D..(6F,6FS)200702-201001

main69810-02320iZRE151..4FC;NDE150..5D..6FS..TERRA;NDE150..LHD..3D..(6F,6FS);ADE15#,NRE150,ZRE15#..LHD..3D..(6F,6FS)..(DCRL,HTWC,HTWVM)200702-201001

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-02320iNDE150,ZRE151..RHD200702-201001

main69820-02330iNDE150,ZRE151..LHD200702-201001

90105W0051

main90105-W0051

90105W0087

main90105-W0087

90105W0183

main90105-W0183

90119W0098

main90119-W0098

11 parts on this diagram · 1 diagram in section
