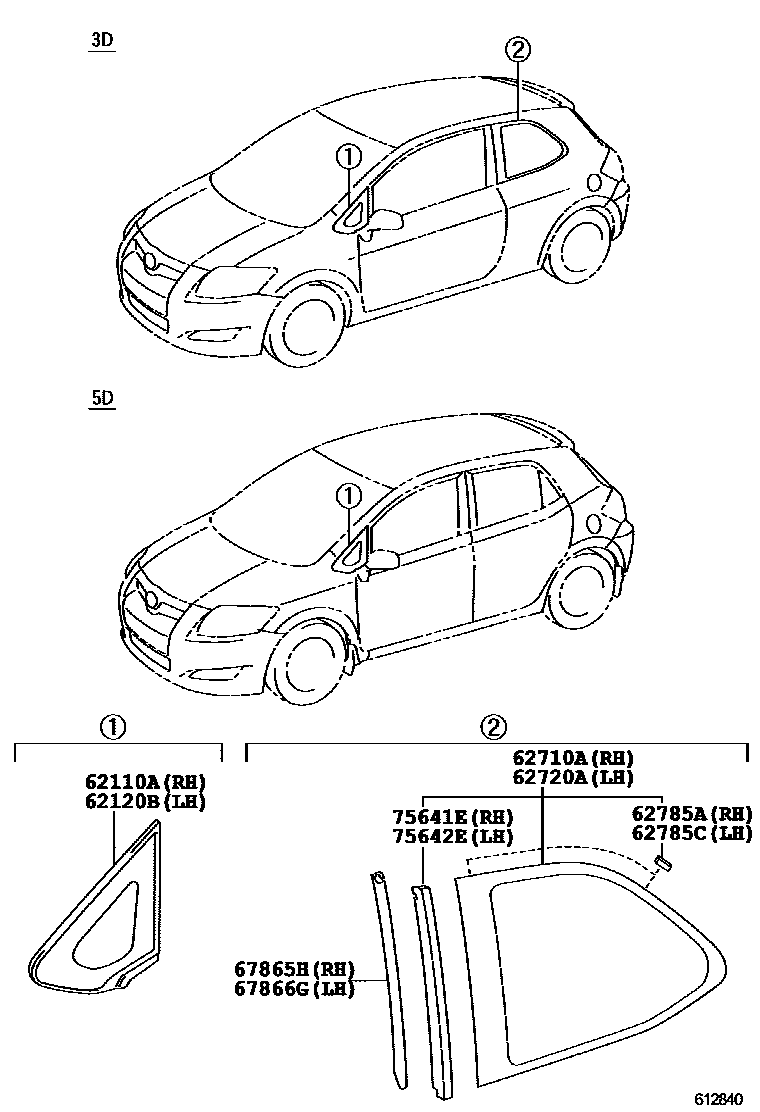

QUARTER WINDOW

62110AWINDOW ASSY, FRONT SIDE FIX, RH

main62110-02010iZZE150200702-200811

62120BWINDOW ASSY, FRONT SIDE FIX, LH

main62120-02010iZZE150200702-200811

62710AWINDOW ASSY, QUARTER, RH

main62710-02070iZZE150..3D200702-200811

*TEM,T=3.1,GREEN

main62710-02090iADE157,NDE150,ZRE15#..3D..SOL..(DCRL,HTWVM)201001

*TEM,T=3.1,DK.GRAY,SPORT PACKAGE

62720AWINDOW ASSY, QUARTER, LH

main62720-02070iZZE150..3D200702-200811

*TEM,T=3.1,GREEN

main62720-02090iADE157,NDE150,ZRE15#..3D..SOL..(DCRL,HTWVM)201001

*TEM,T=3.1,DK.GRAY,SPORT PACKAGE

62785ASPACER, QUARTER WINDOW GLASS

main62785-16030×2iZZE150..3D200702-200811

62785CSPACER, QUARTER WINDOW GLASS

main62785-16030×2iZZE150..3D200702-200811

67865HWEATHERSTRIP, CENTER PILLAR UPPER END, RH

main67865-02020iZZE150..3D200702-200811

67866GWEATHERSTRIP, CENTER PILLAR UPPER END, LH

main67866-02020iZZE150..3D200702-200811

75641EMOULDING, QUARTER WINDOW, RH

main75641-02020iZZE150..3D200702-200811

75642EMOULDING, QUARTER WINDOW, LH

main75642-02020iZZE150..3D200702-200811

10 parts on this diagram · 1 diagram in section
